I/P Fuse Block - Left - I/P

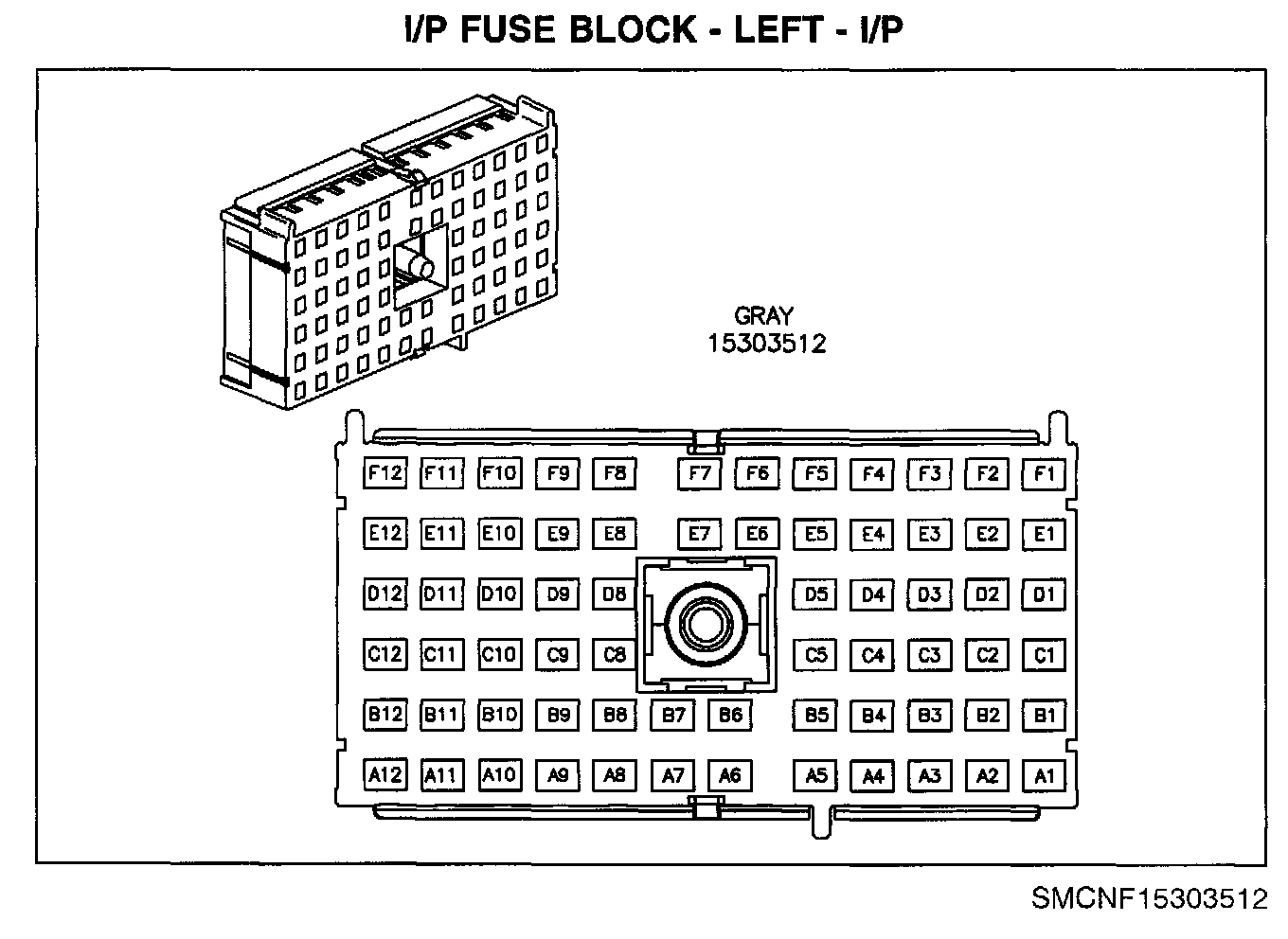

I/P Fuse Block - Left - I/P Part 1:

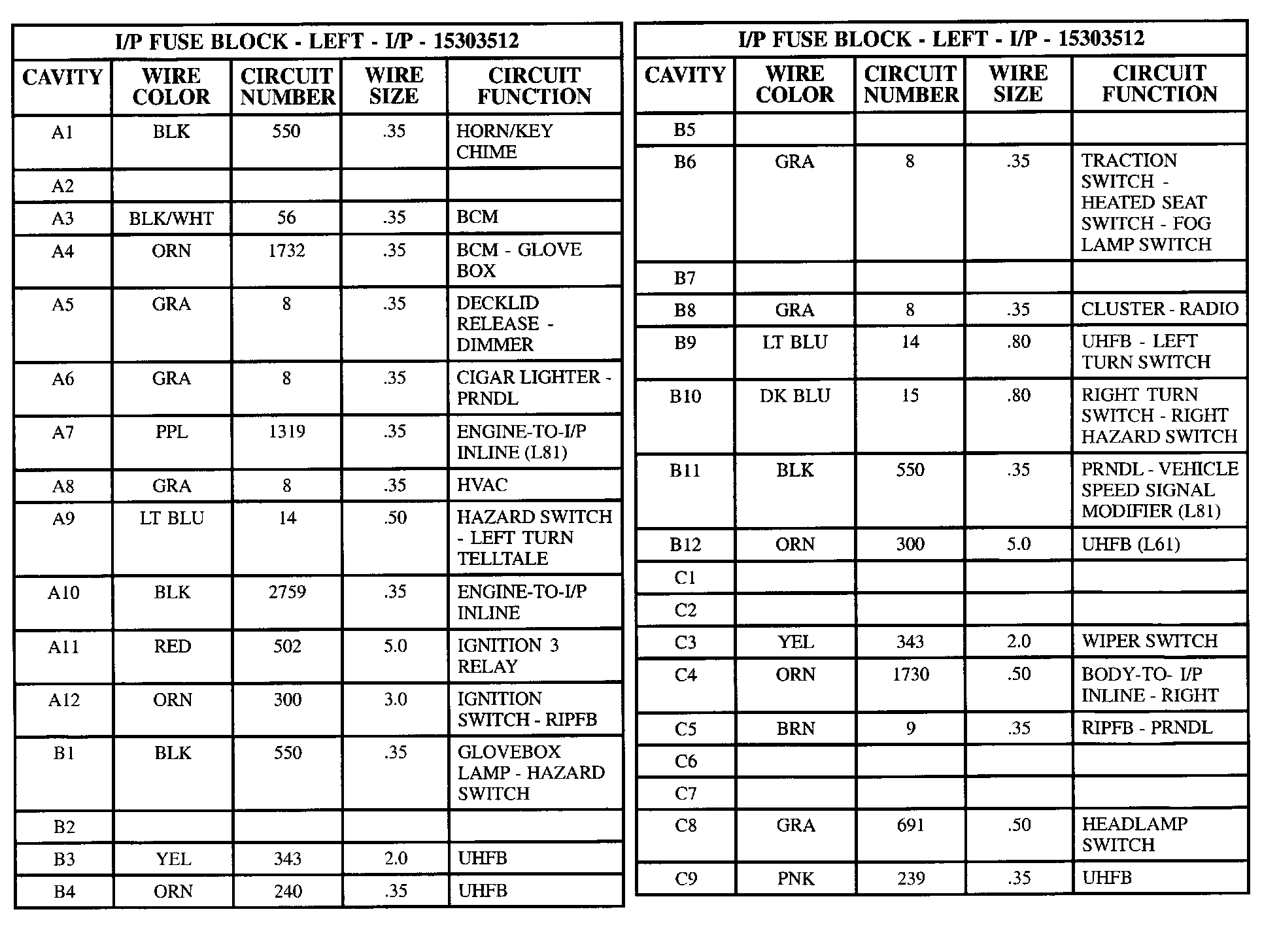

I/P Fuse Block - Left - I/P Part 2:

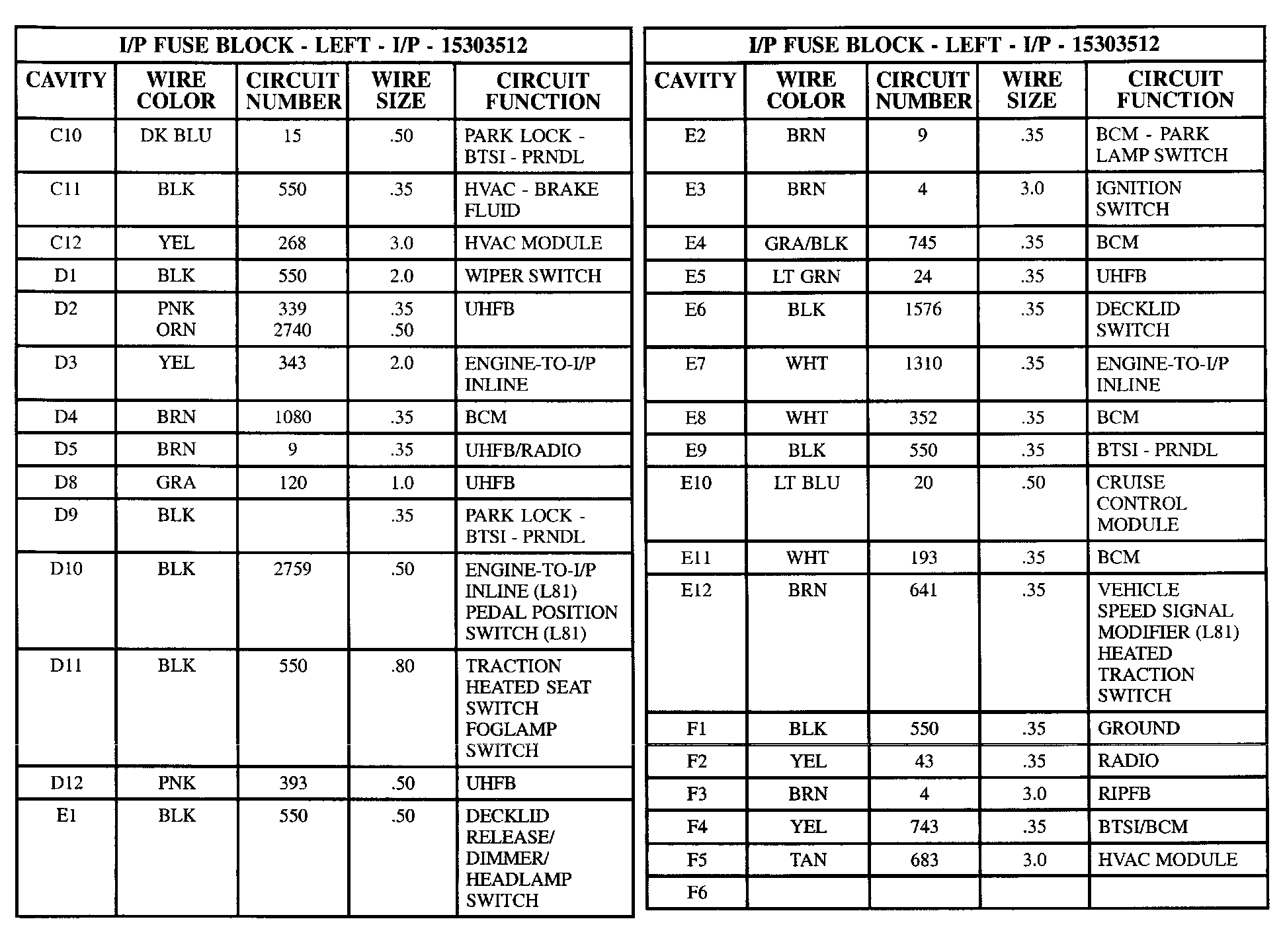

I/P Fuse Block - Left - I/P Part 3:

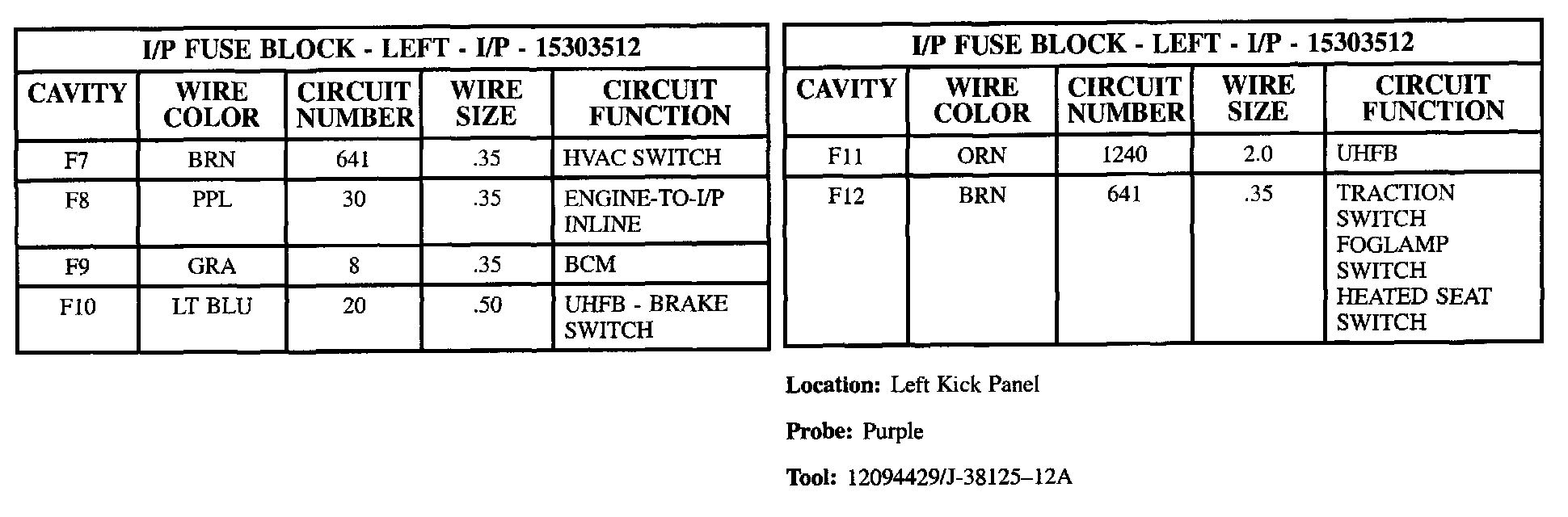

I/P Fuse Block - Left - I/P Part 4:
