Underhood Fuse Block - Engine

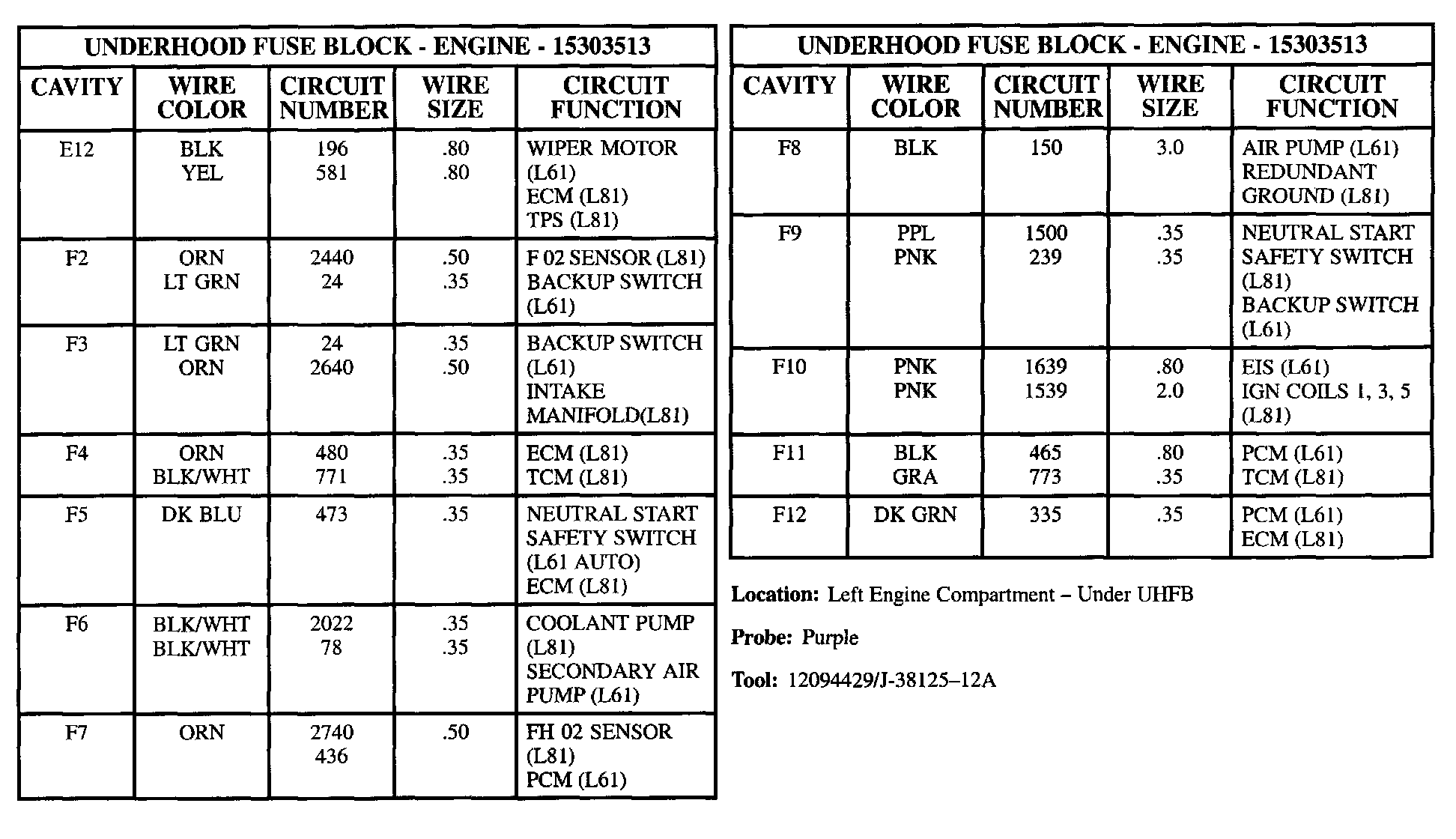

Underhood Fuse Block - Engine Part 1:

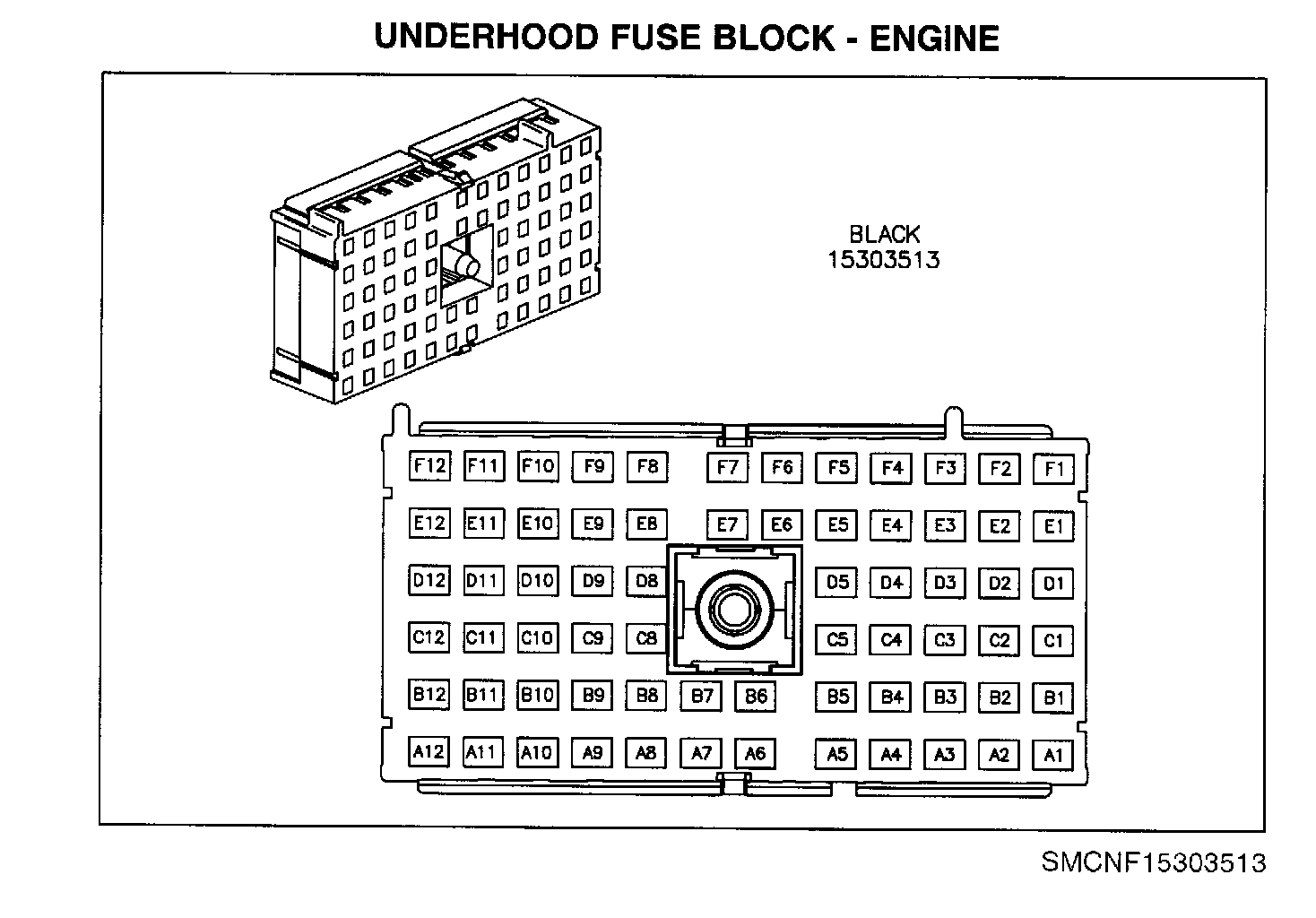

Underhood Fuse Block - Engine Part 2:

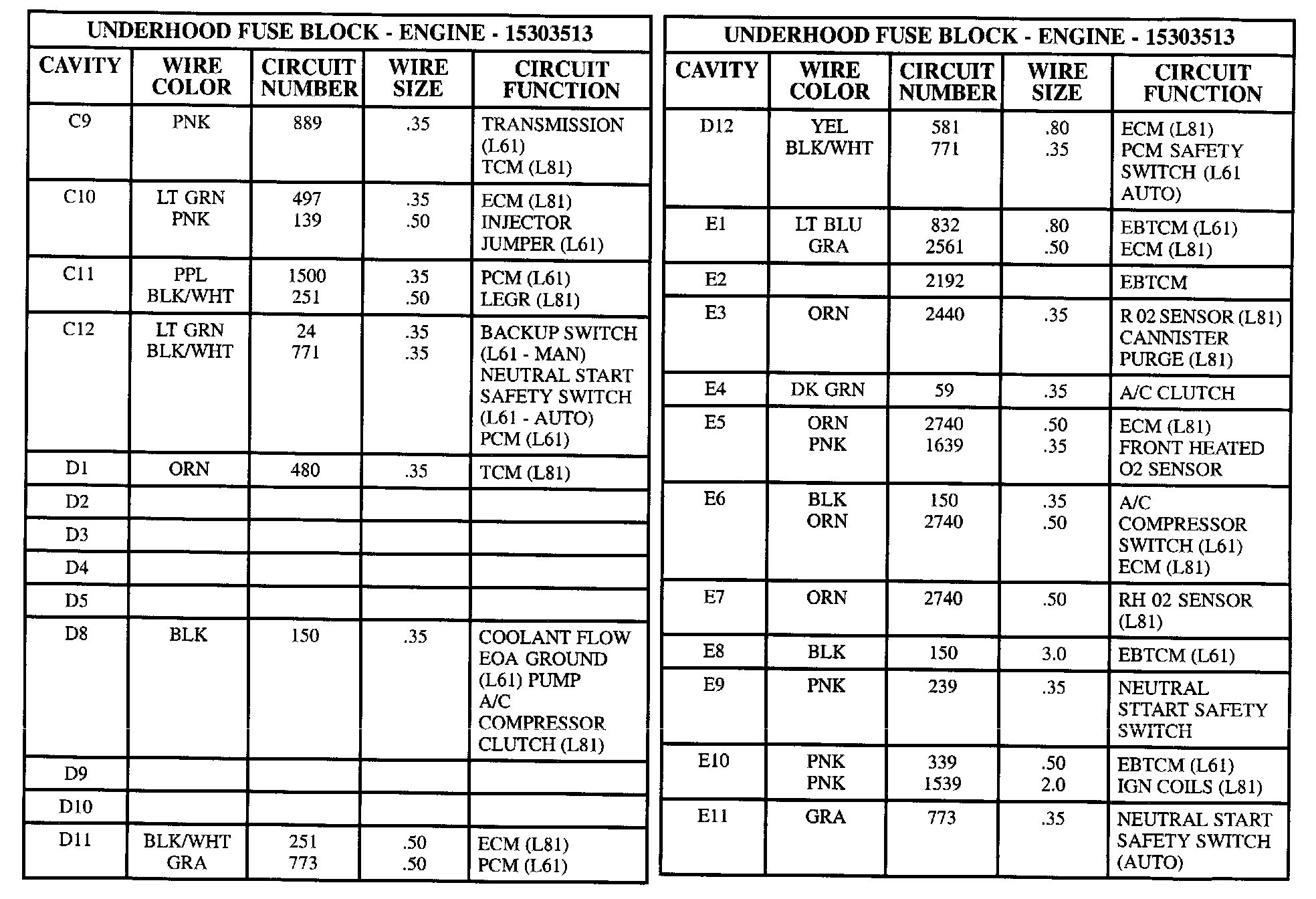

Underhood Fuse Block - Engine Part 3:

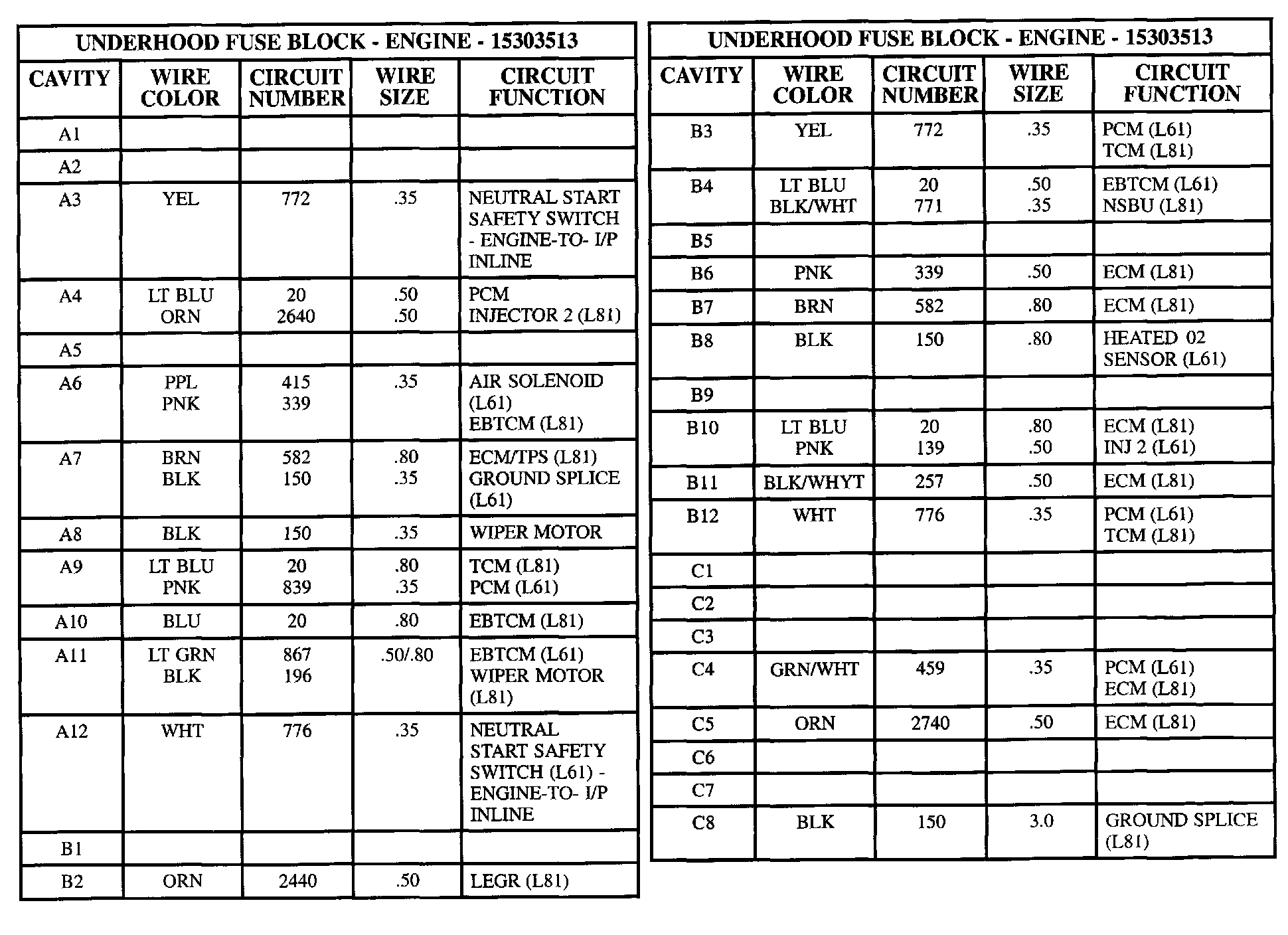

Underhood Fuse Block - Engine Part 4:
