Trunk / Liftgate Switch

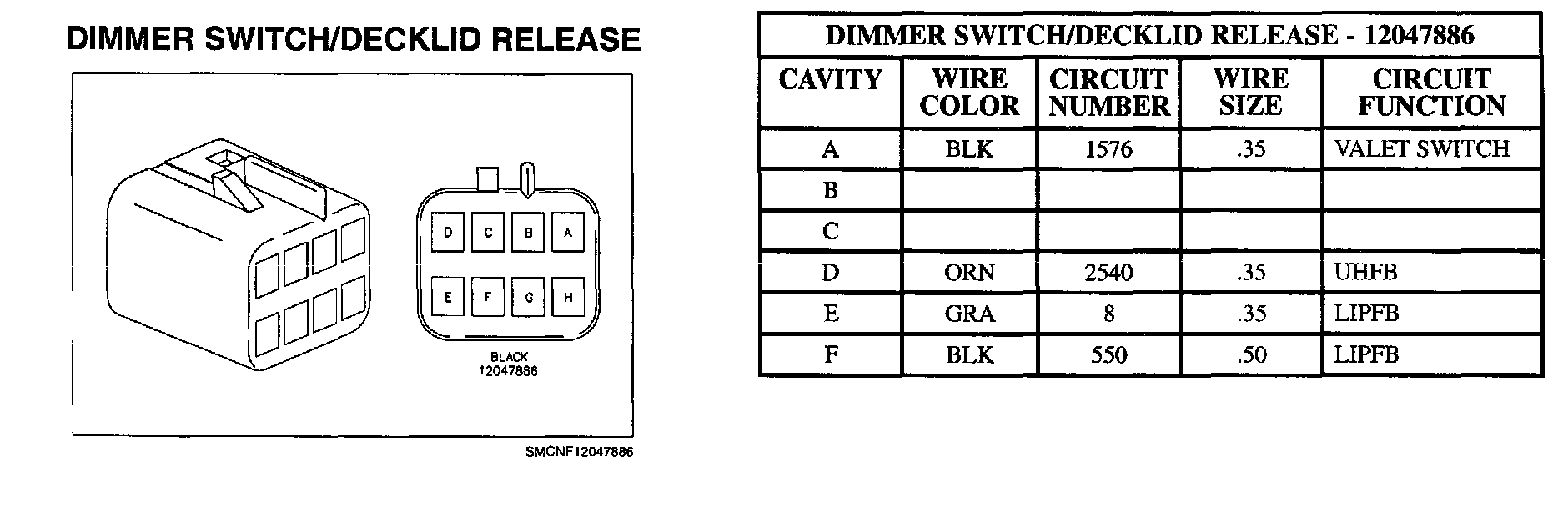

Dimmer Switch/Decklid Release Part 1:



Dimmer Switch/Decklid Release Part 2:
