Vacuum Check Valve: Service and Repair

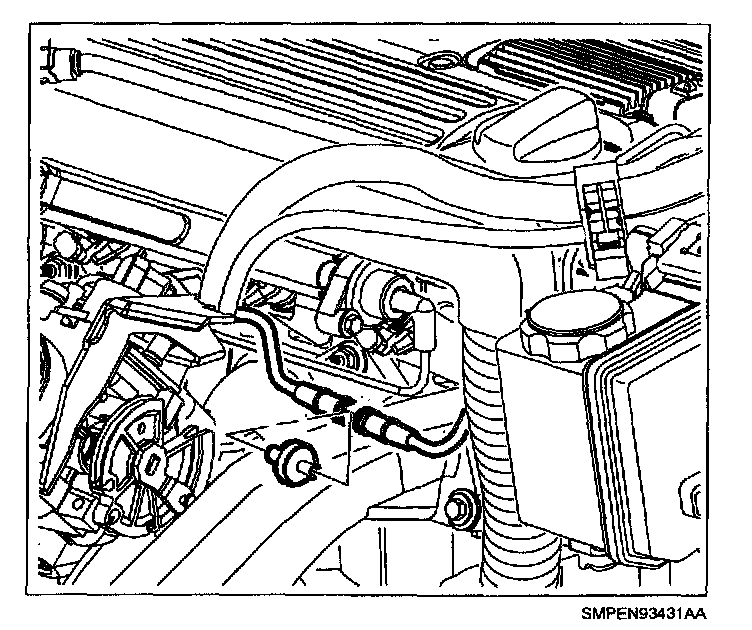

AIR CHECK VALVEREMOVAL
Remove vacuum hoses from both ends of check valve.
INSTALLATION
1. Install check valve with the side labeled VAC (black) facing toward vacuum source.
2. Install vacuum hoses.
REMOVAL
Remove vacuum hoses from both ends of check valve.
INSTALLATION
1. Install check valve with the side labeled VAC (black) facing toward vacuum source.
2. Install vacuum hoses.
