Shifter Controls

AUTOMATIC TRANSAXLE SERVICE MANUAL (SHIFTER)

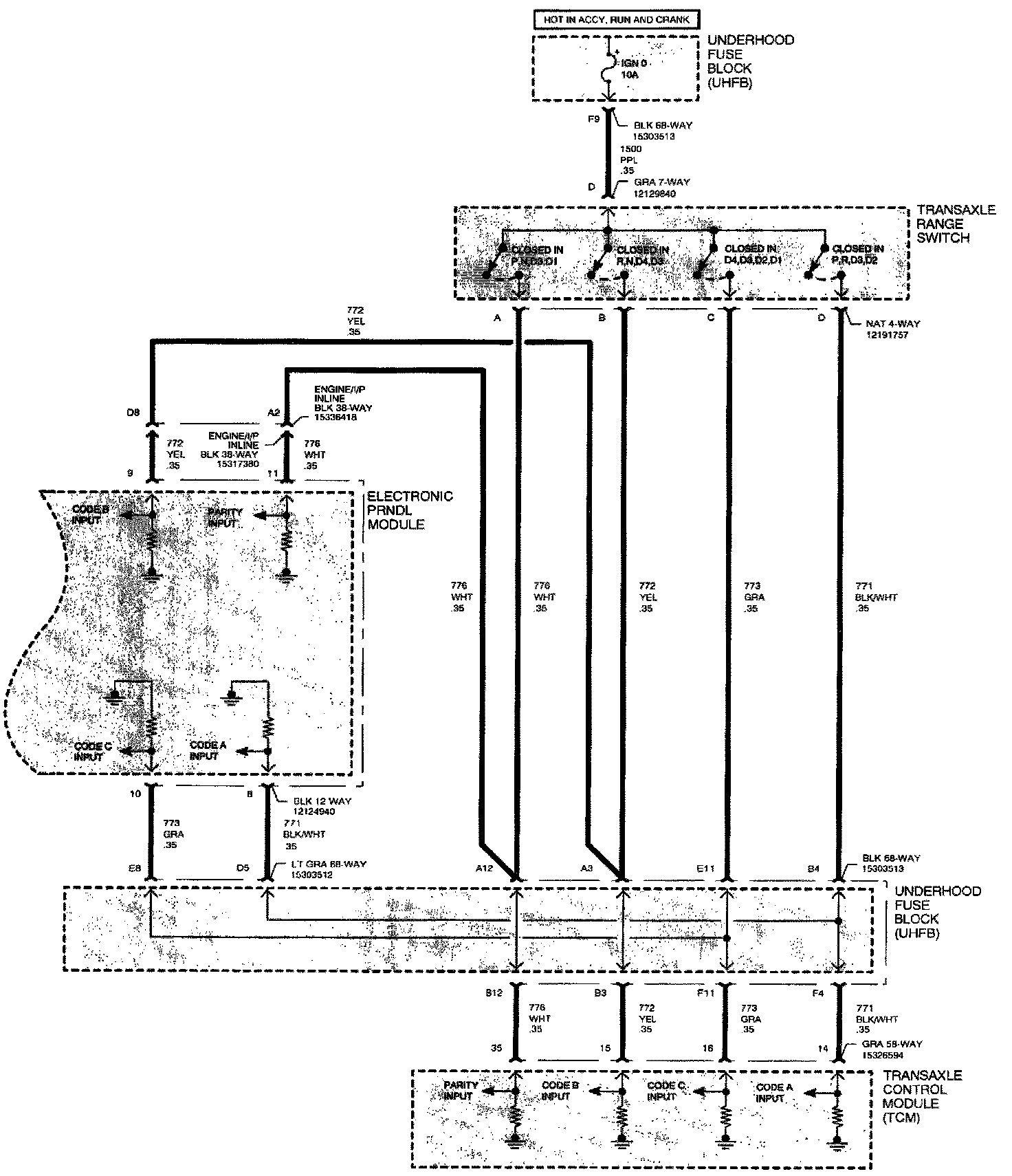

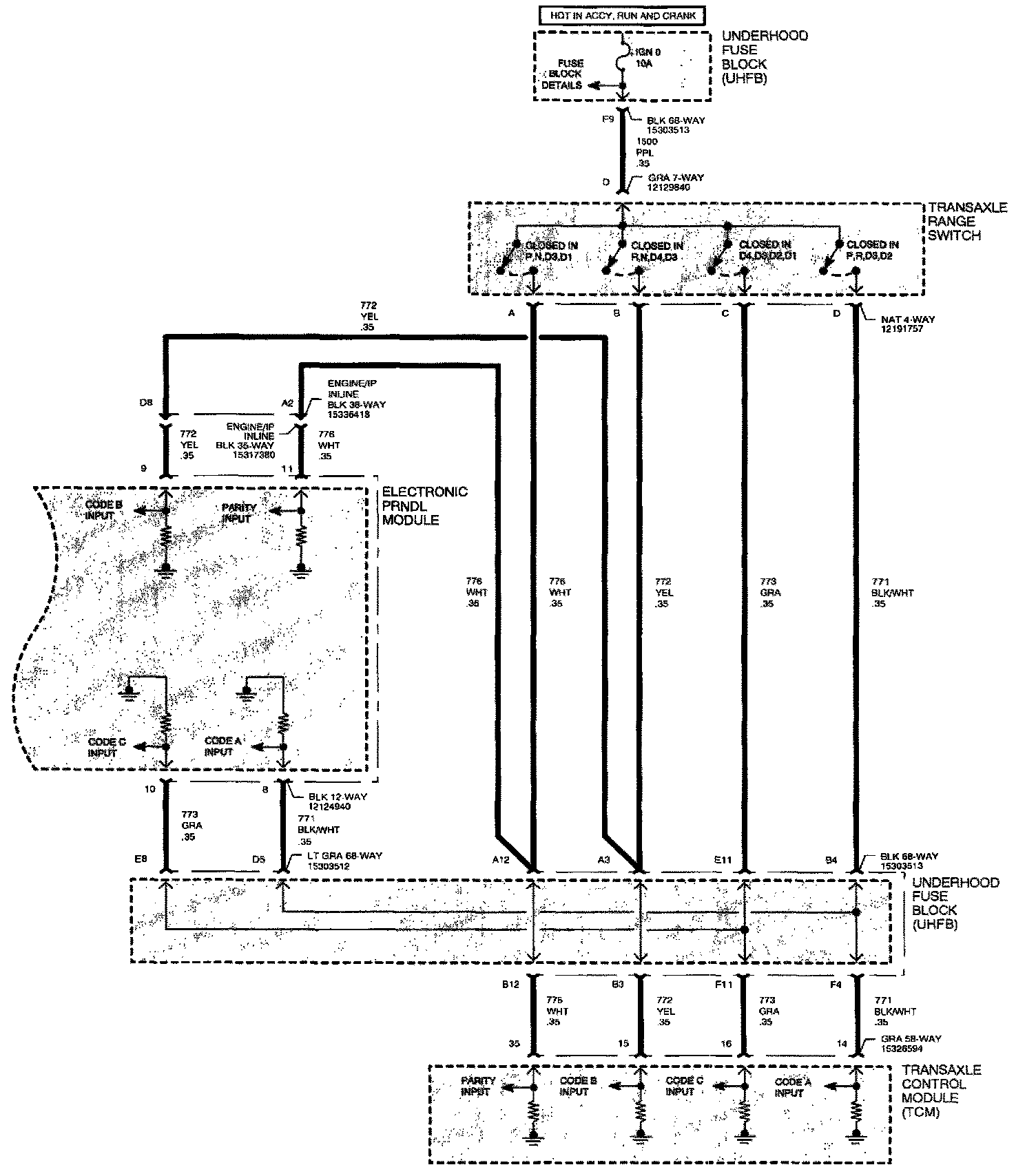

DIAGNOSTICS

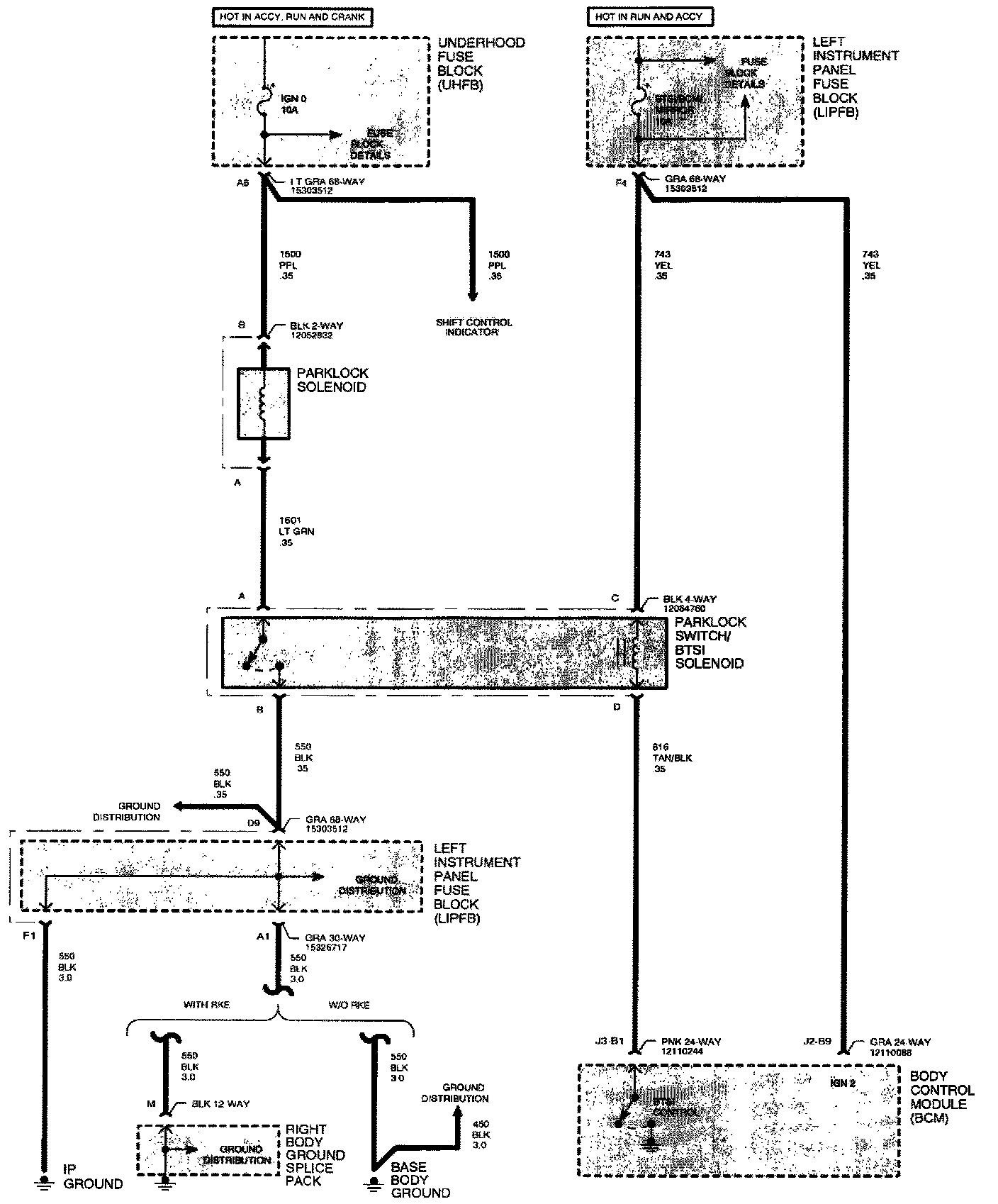

BRAKE TRANSAXLE SHIFT INTERLOCK (BTSI)/PARK LOCK SYSTEM SCHEMATIC

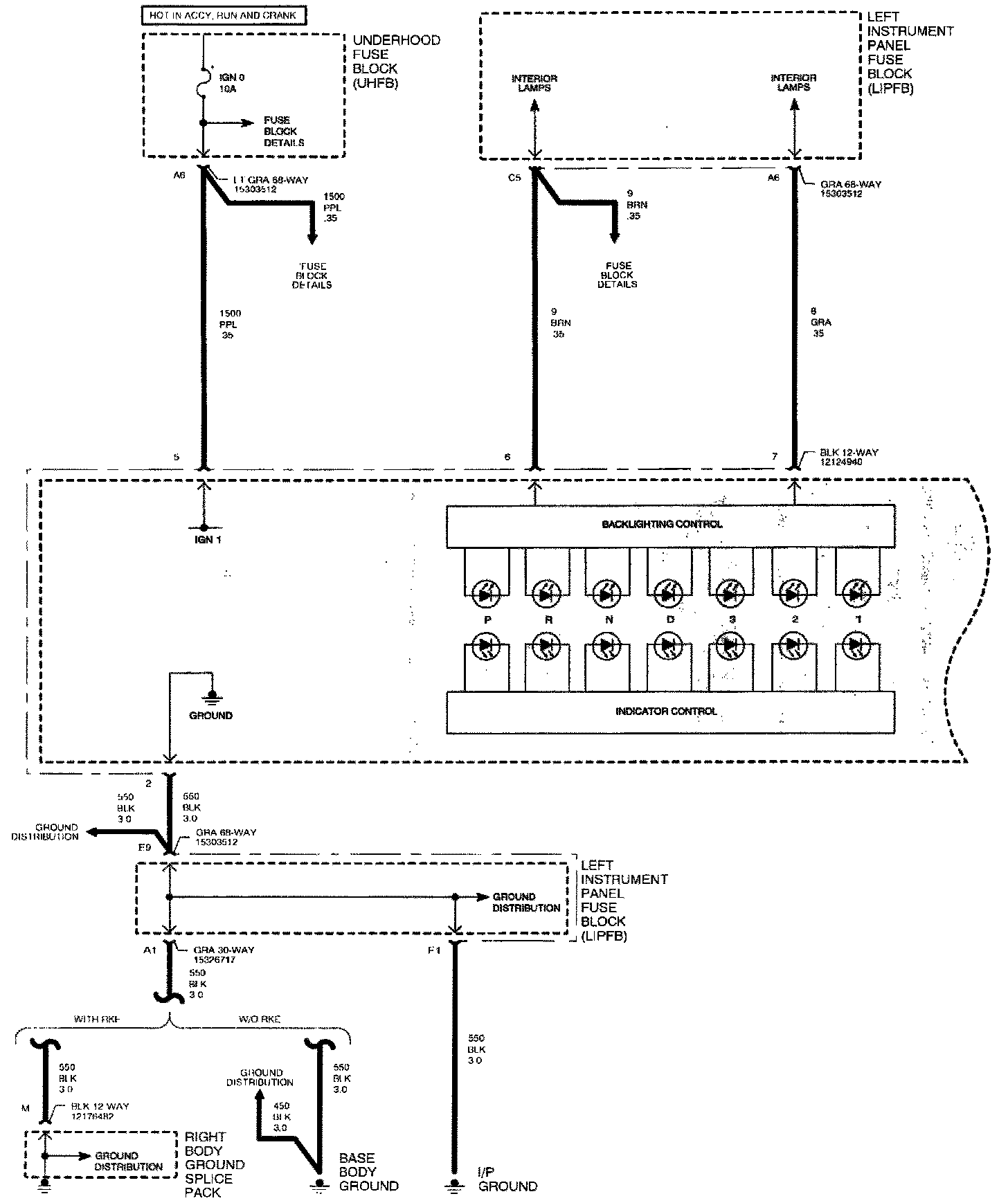

SHIFT CONTROL INDICATOR - COMMON





SHIFT CONTROL INDICATOR - L81 ENGINE
