BCM Connector Face Views

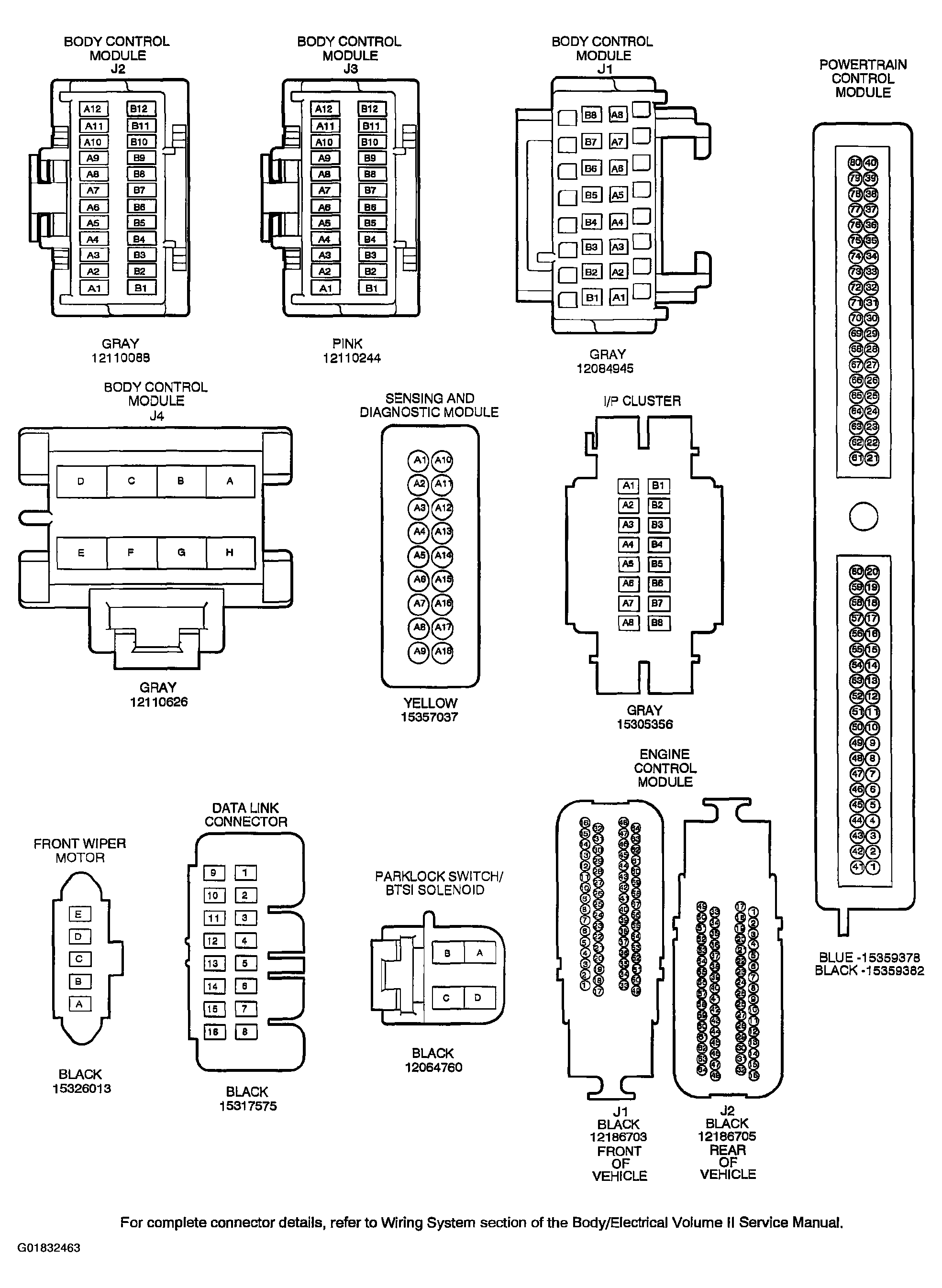

Fig 1: BCM Connector Face Views (1 Of 3)
G01832463Courtesy of GENERAL MOTORS CORP.

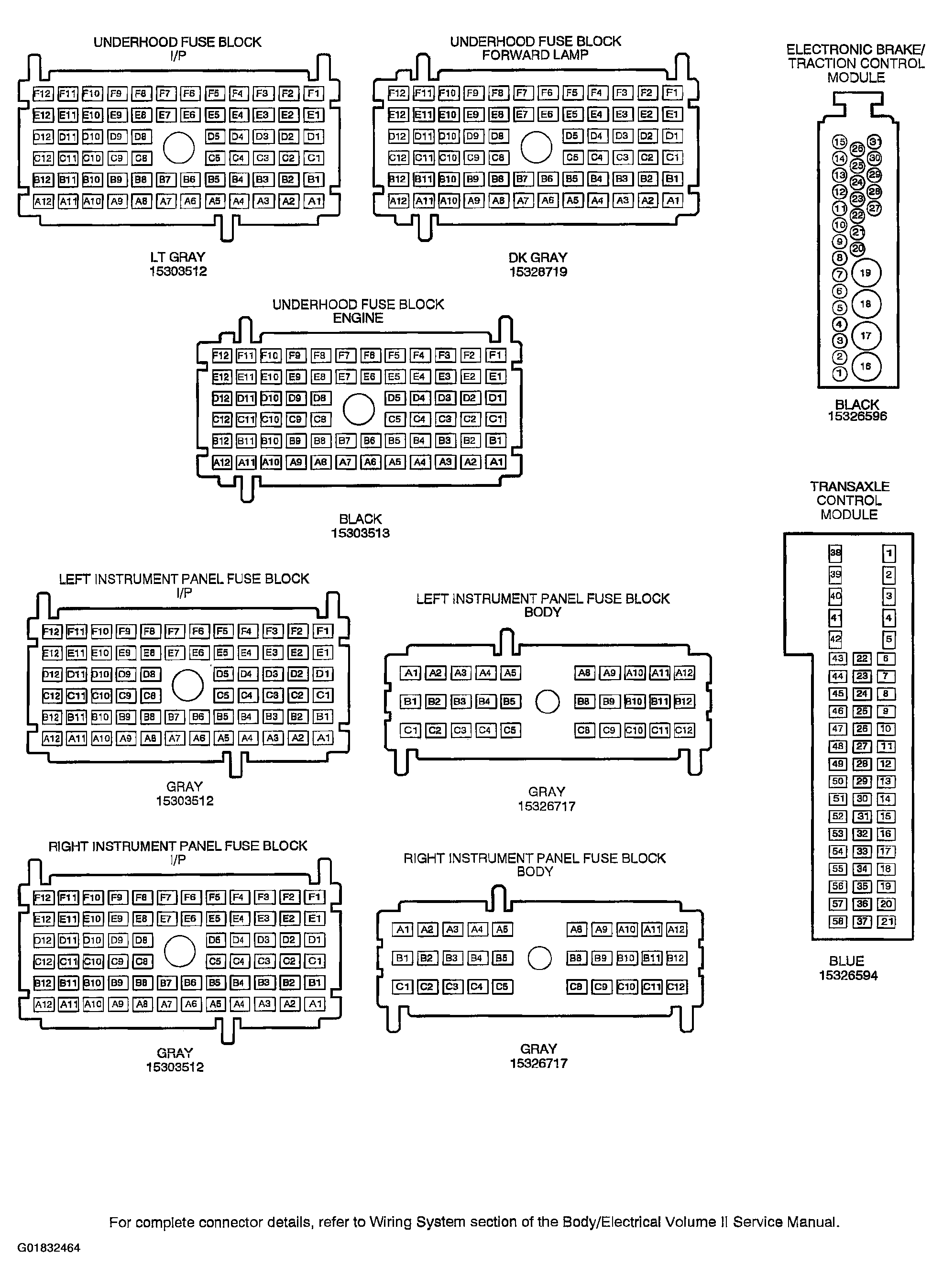

Fig 2: BCM Connector Face Views (2 Of 3)
G01832464Courtesy of GENERAL MOTORS CORP.

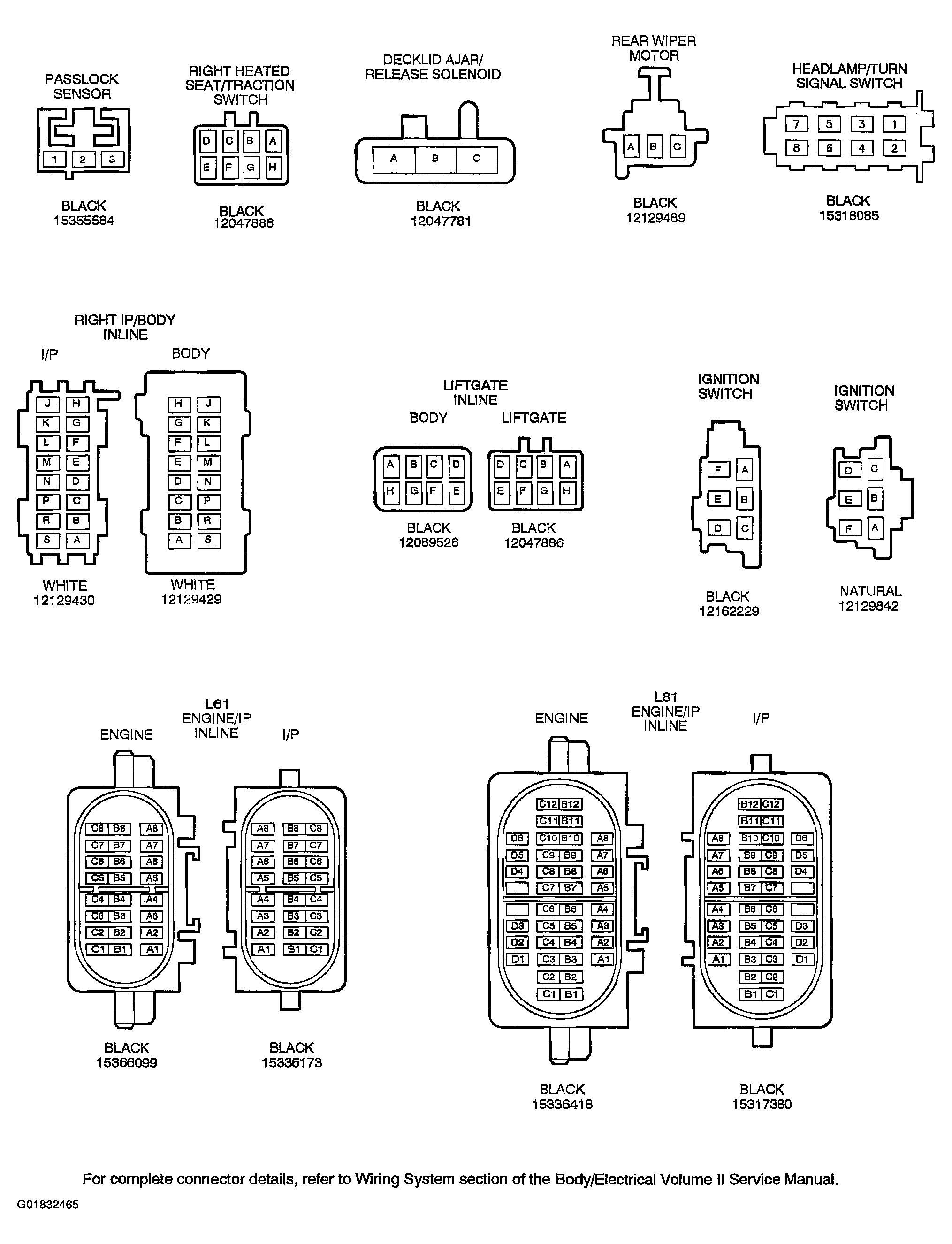

Fig 3: BCM Connector Face Views (3 Of 3)
G01832465Courtesy of GENERAL MOTORS CORP.
