On-Star System Schematic

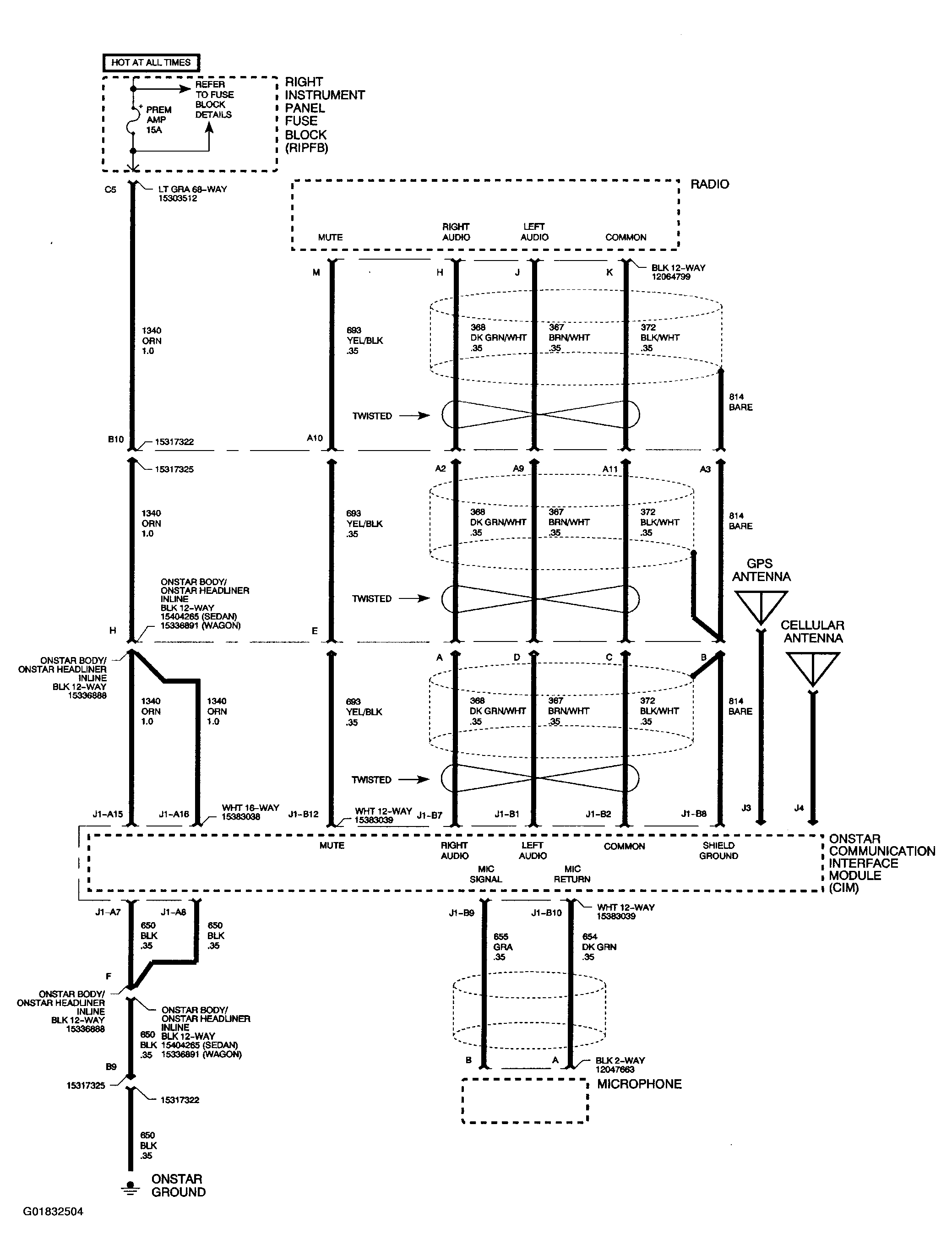

Fig 1: On-Star System Schematic (1 Of 2)
G01832504Courtesy of GENERAL MOTORS CORP.

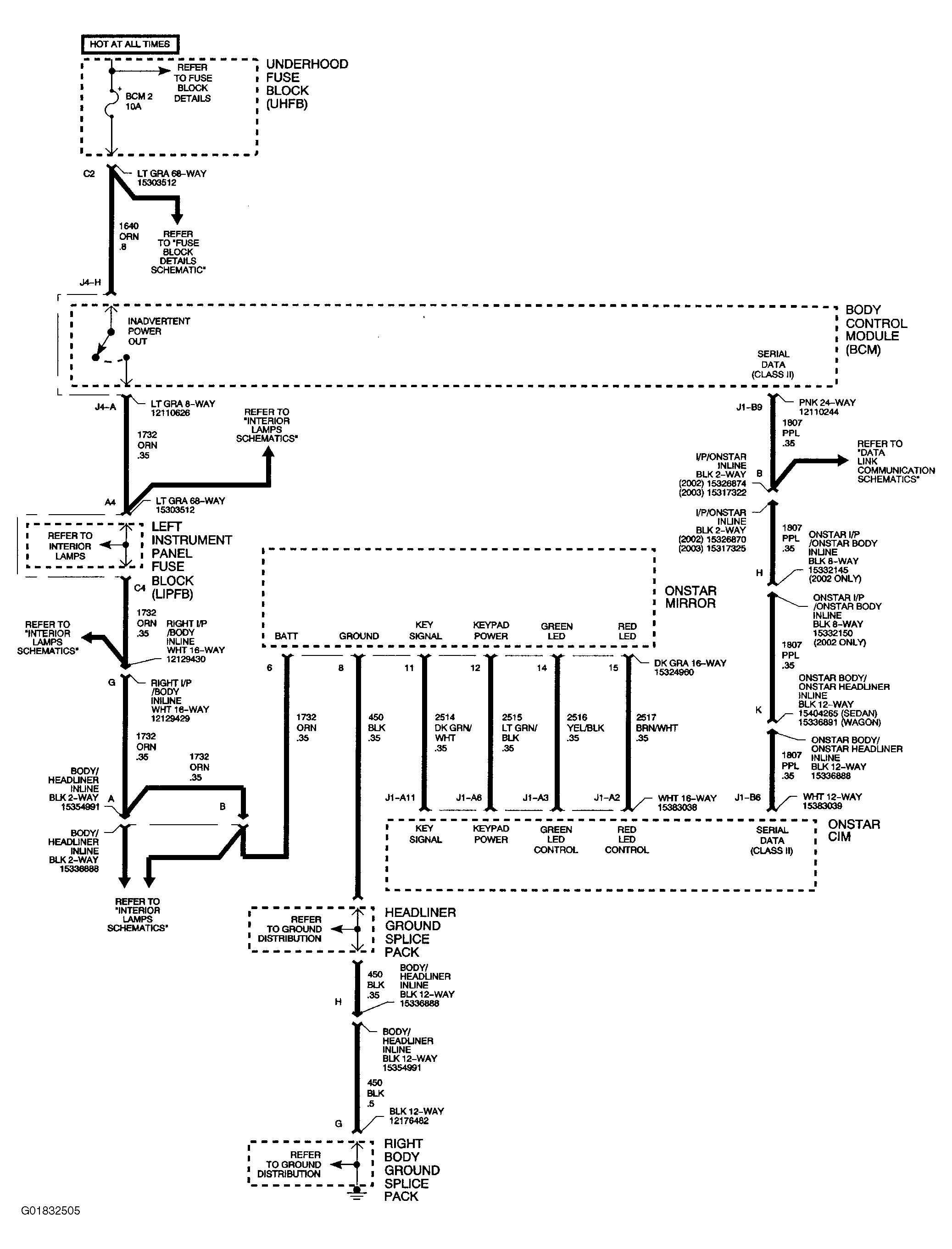

Fig 2: On-Star System Schematic (2 Of 2)
G01832505Courtesy of GENERAL MOTORS CORP.
