By-Passing Advanced Audio System

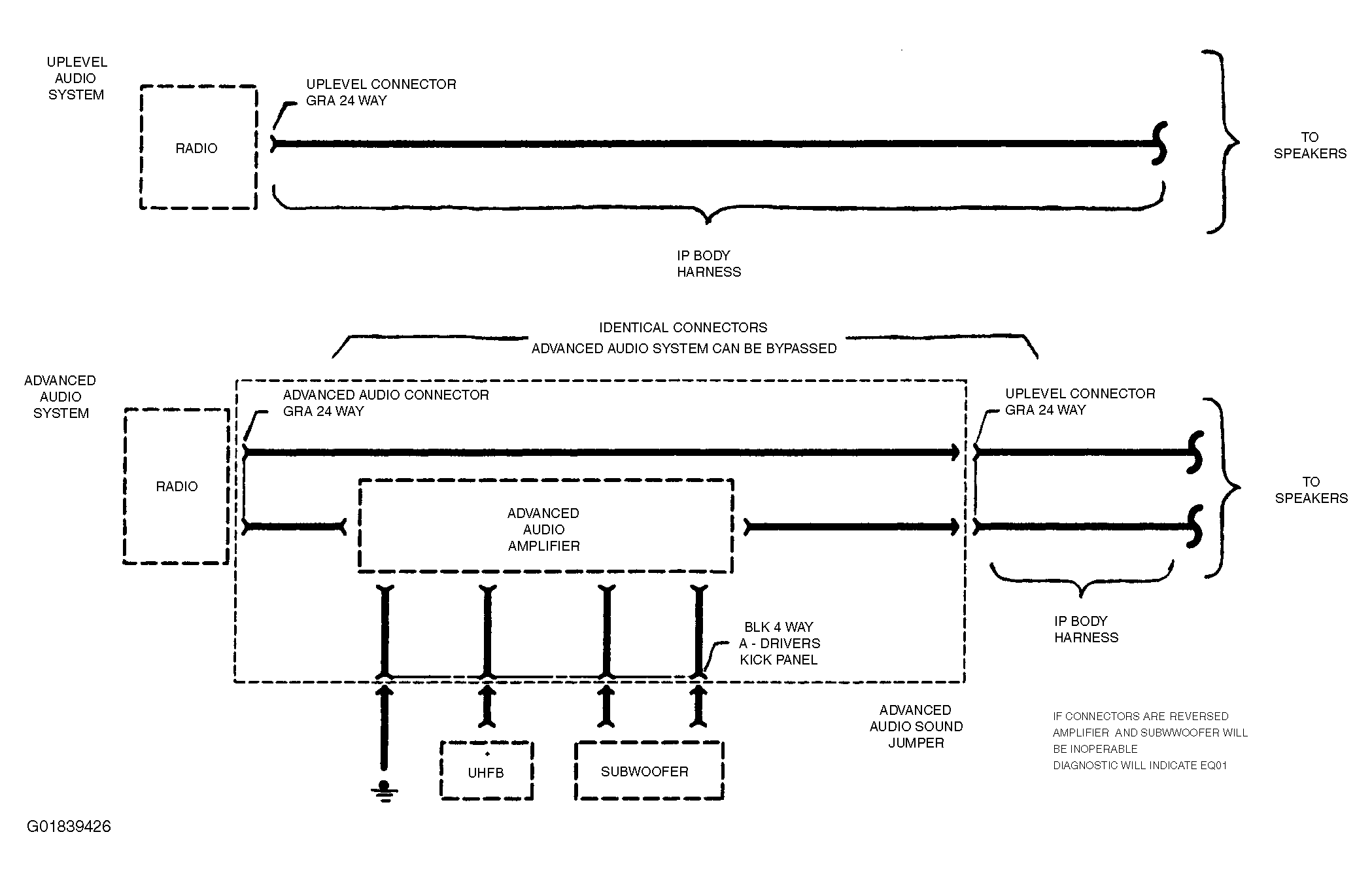

Fig 1: By-Passing Advanced Audio System Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
