AM/FM Stereo

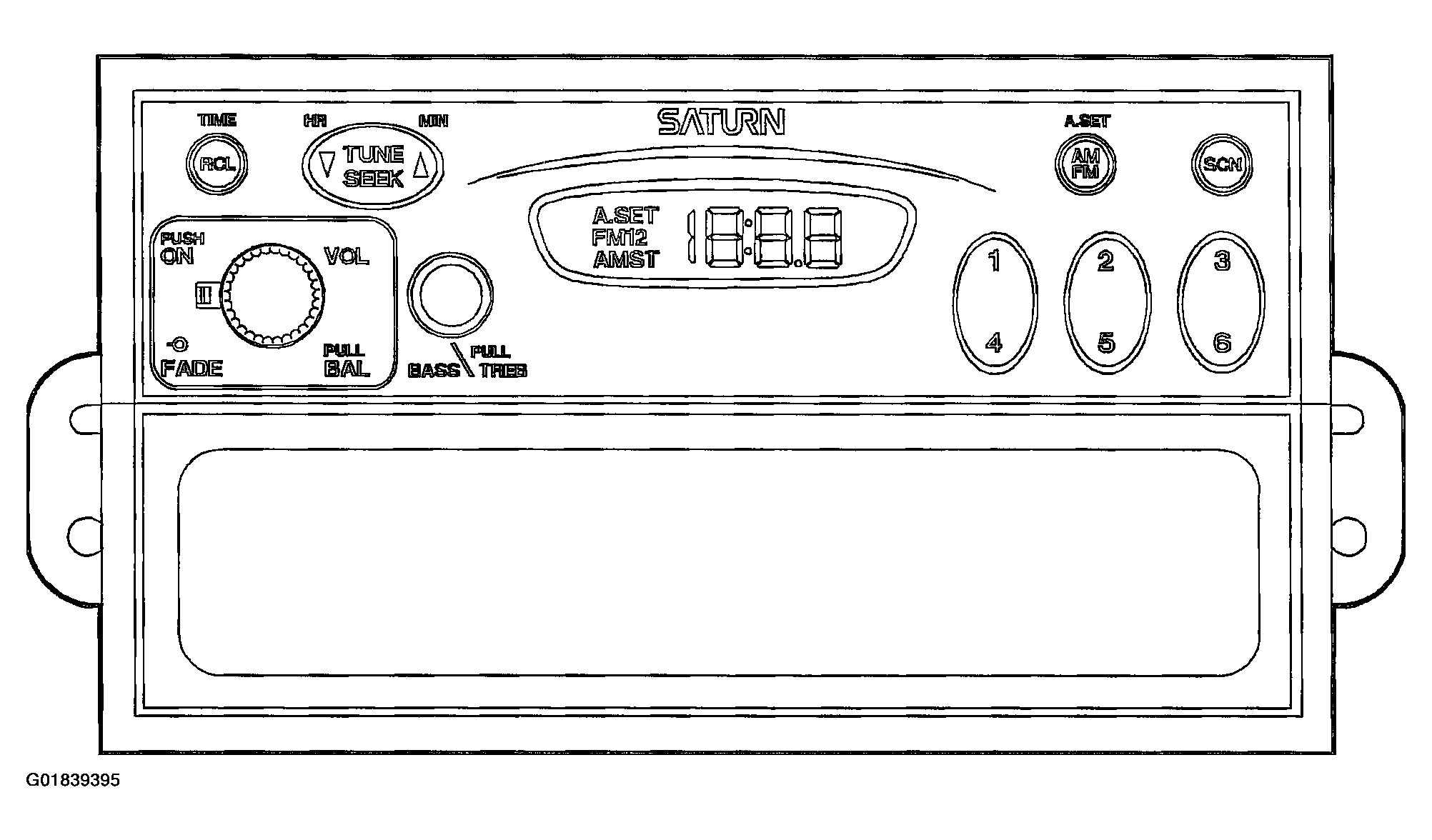

Fig 1: AM/FM Stereo Face

Courtesy of GENERAL MOTORS CORP.

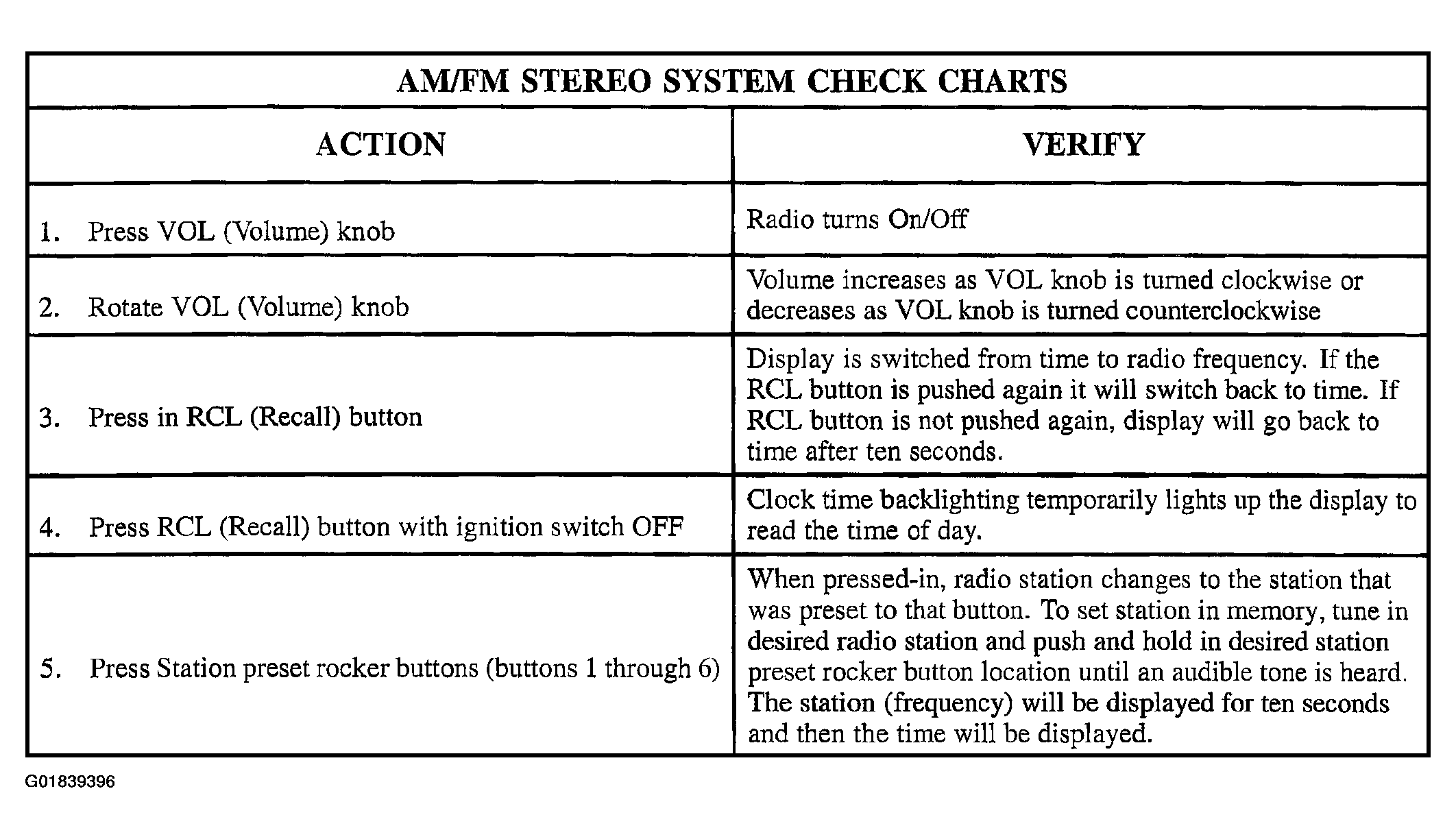

Fig 2: AM/FM Stereo System Check Chart (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: AM/FM Stereo System Check Chart (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

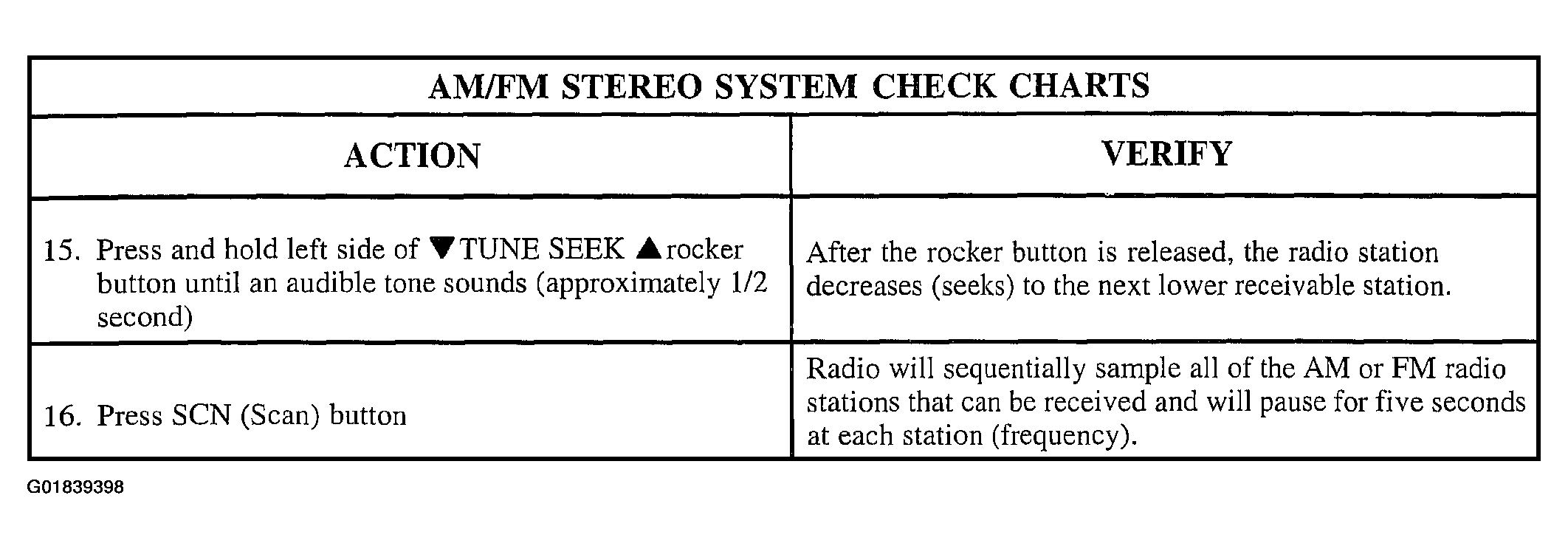

Fig 4: AM/FM Stereo System Check Chart (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
