Inserting Compact Discs Into CD Magazine

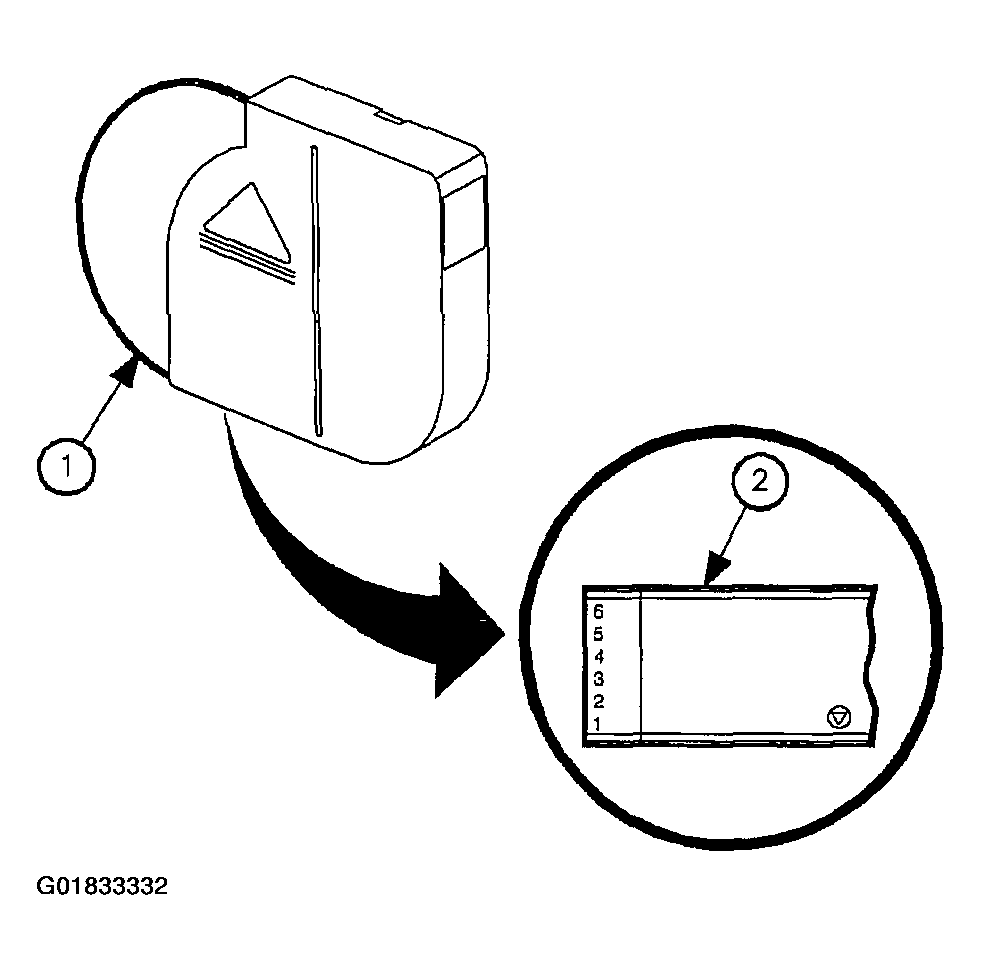

Fig 1: Inserting Compact Discs Into CD Magazine

Courtesy of GENERAL MOTORS CORP.

CD is label side up (1).
CD magazine is numbered 1-6 from bottom to top (2).

Load up to six CDs, label side up, in the CD magazine. The order the CDs are played is from the bottom of the CD magazine to the top (unless in RDM mode). If you look closely, one of the sides of the magazine shows the numbering of the slots (1-6).

NOTE: If all the CDs in the magazine are loaded incorrectly, no CDs will be played. The CD changer/player will play only those CDs loaded correctly.

Insert one CD in one of the six slots of CD magazine with label-side of CD facing up.
CDs can be loaded in any order you wish.
The label side of the CD must face upward. If a CD is loaded label side down, the CD changer/player will not be able to recognize the CD. The upside down CD will be skipped and the next higher available CD will be played.
Do not touch the recorded surface of a CD when inserting or removing the CD.
If the CD has been suddenly moved from cold to warm surroundings, playing a CD will not be possible until the moisture evaporates. Let the CD changer/player warm up.
