System Check

NOTE: Ignition switch must be in the RUN position for the entire system check.

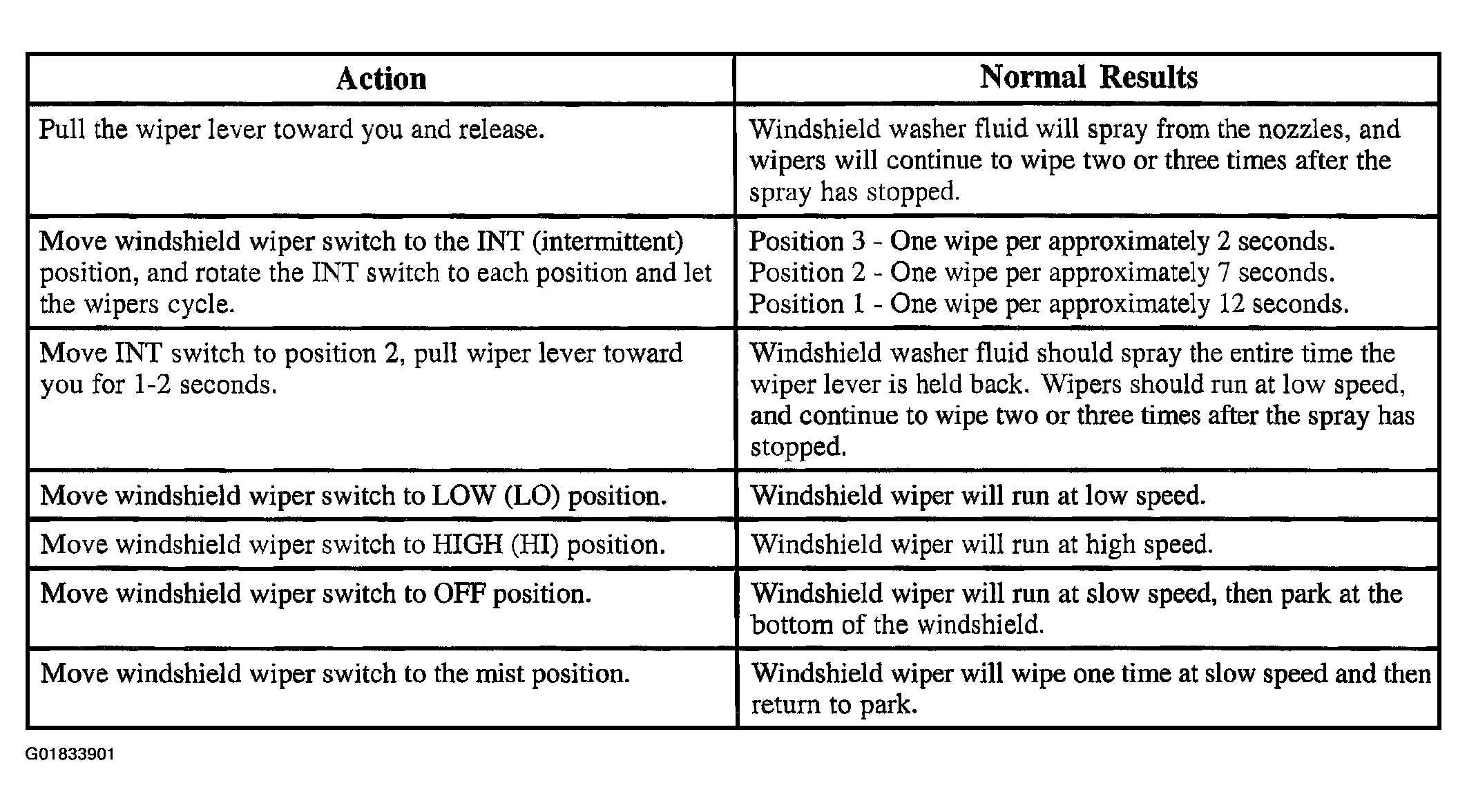

Fig 1: System Check
G01833901Courtesy of GENERAL MOTORS CORP.
