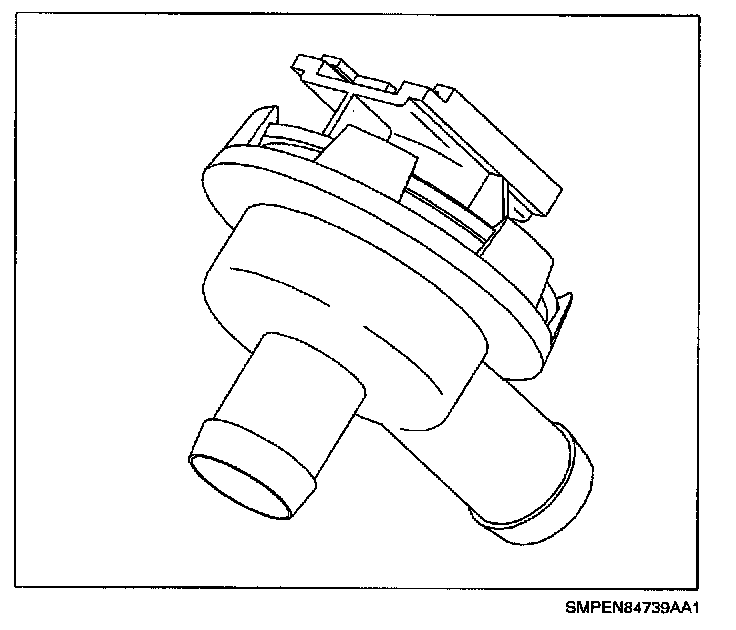

Air Shutoff Valve

The shutoff valve is located underhood toward the left rear of the cylinder head. The shutoff valve is part of the AIR system used to control the airflow from the air pump to the exhaust manifold. The shutoff valve consists of a spring-loaded diaphragm opened by vacuum, which is regulated by the air pump solenoid.
