Differential Assembly Components

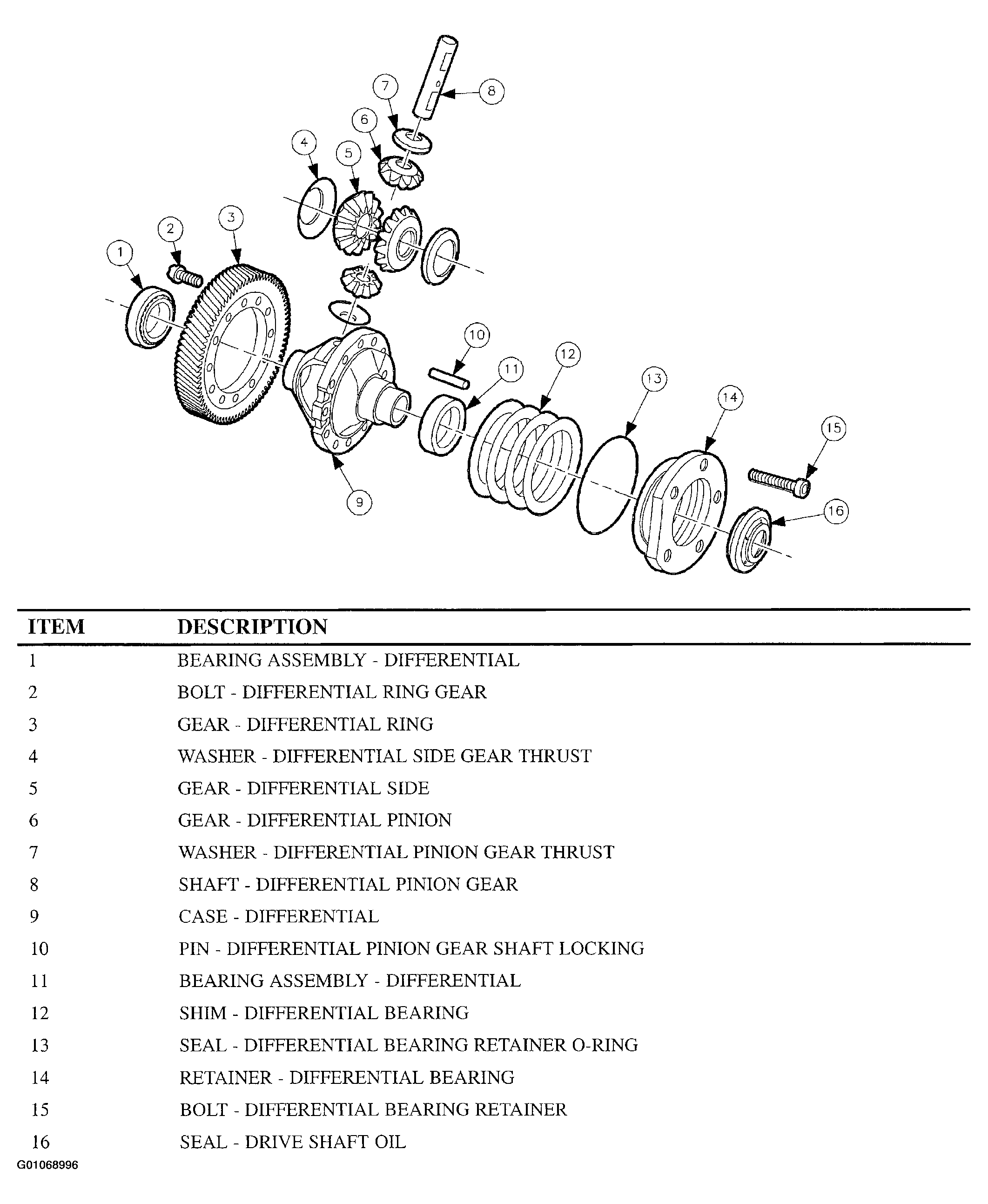

Fig 1: Exploded View Of Differential Assembly Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
