Design Specifications

WARNING: This page is about a different car, the 2002 Saturn LW200, 2002 Saturn L200, and 2002 Saturn L100. However, it is still accessible from the selected car via links, so may be relevant.

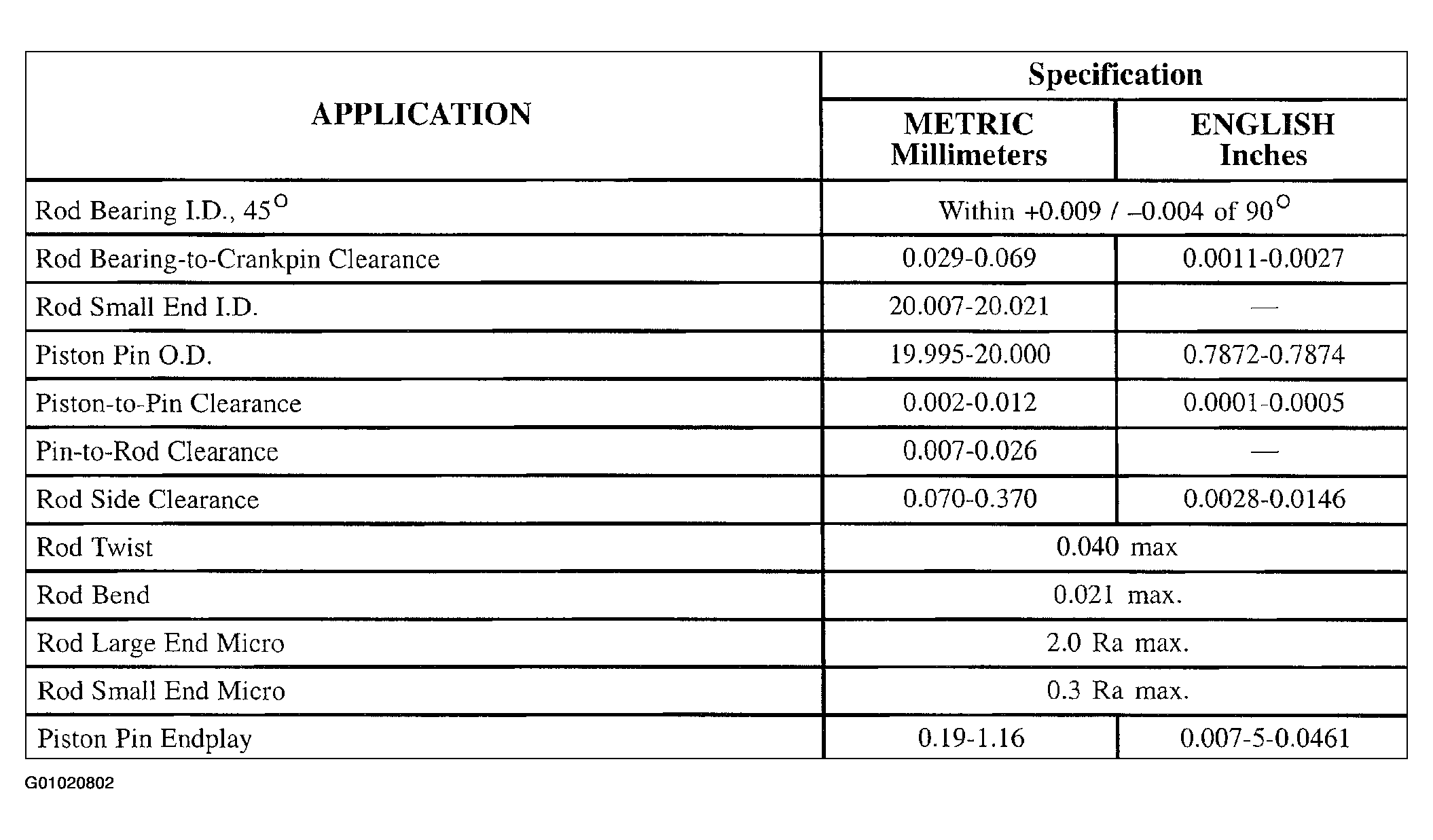

Fig 1: Design Specifications (1 Of 5)

Courtesy of GENERAL MOTORS CORP.

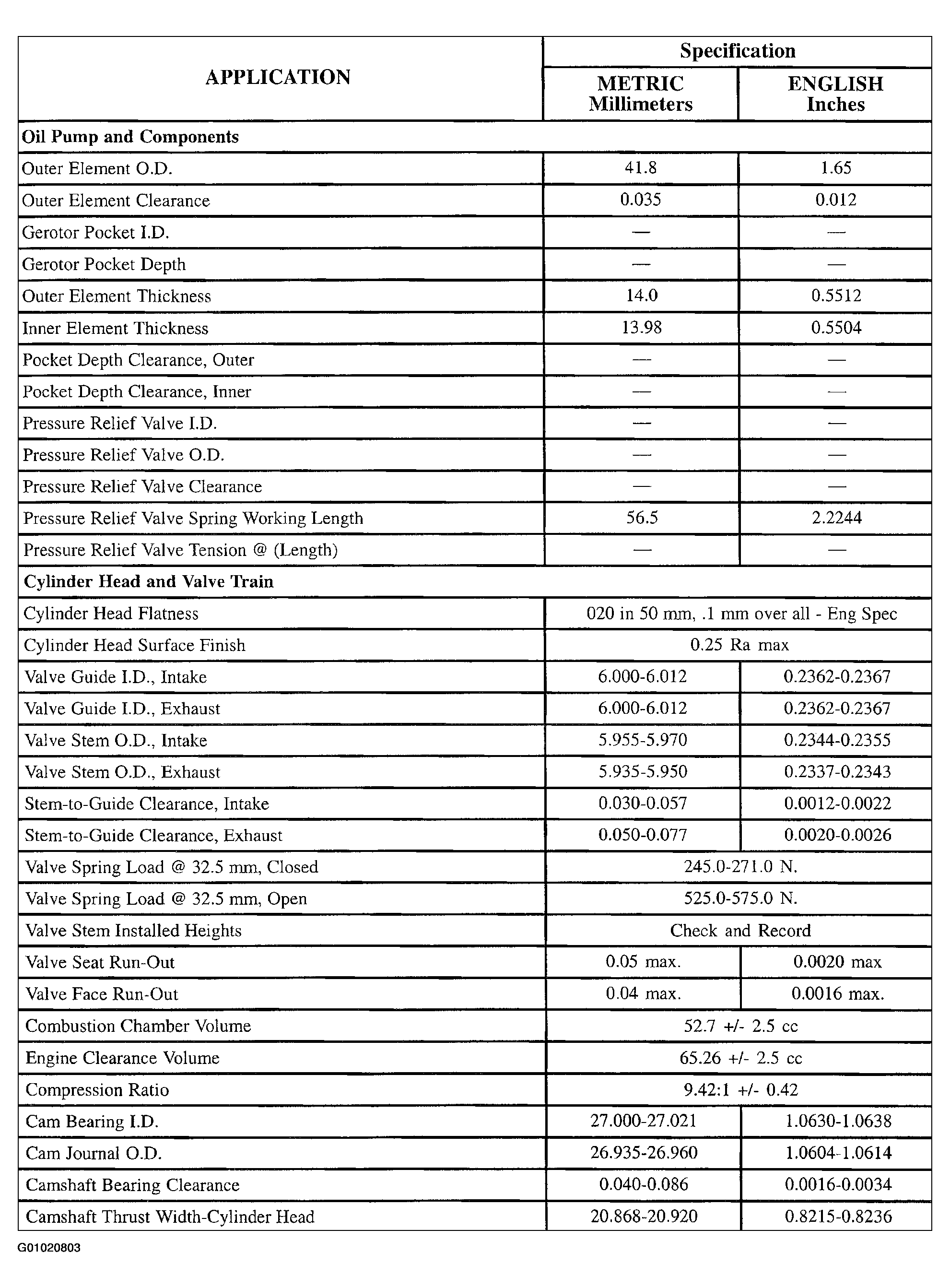

Fig 2: Design Specifications (2 Of 5)

Courtesy of GENERAL MOTORS CORP.

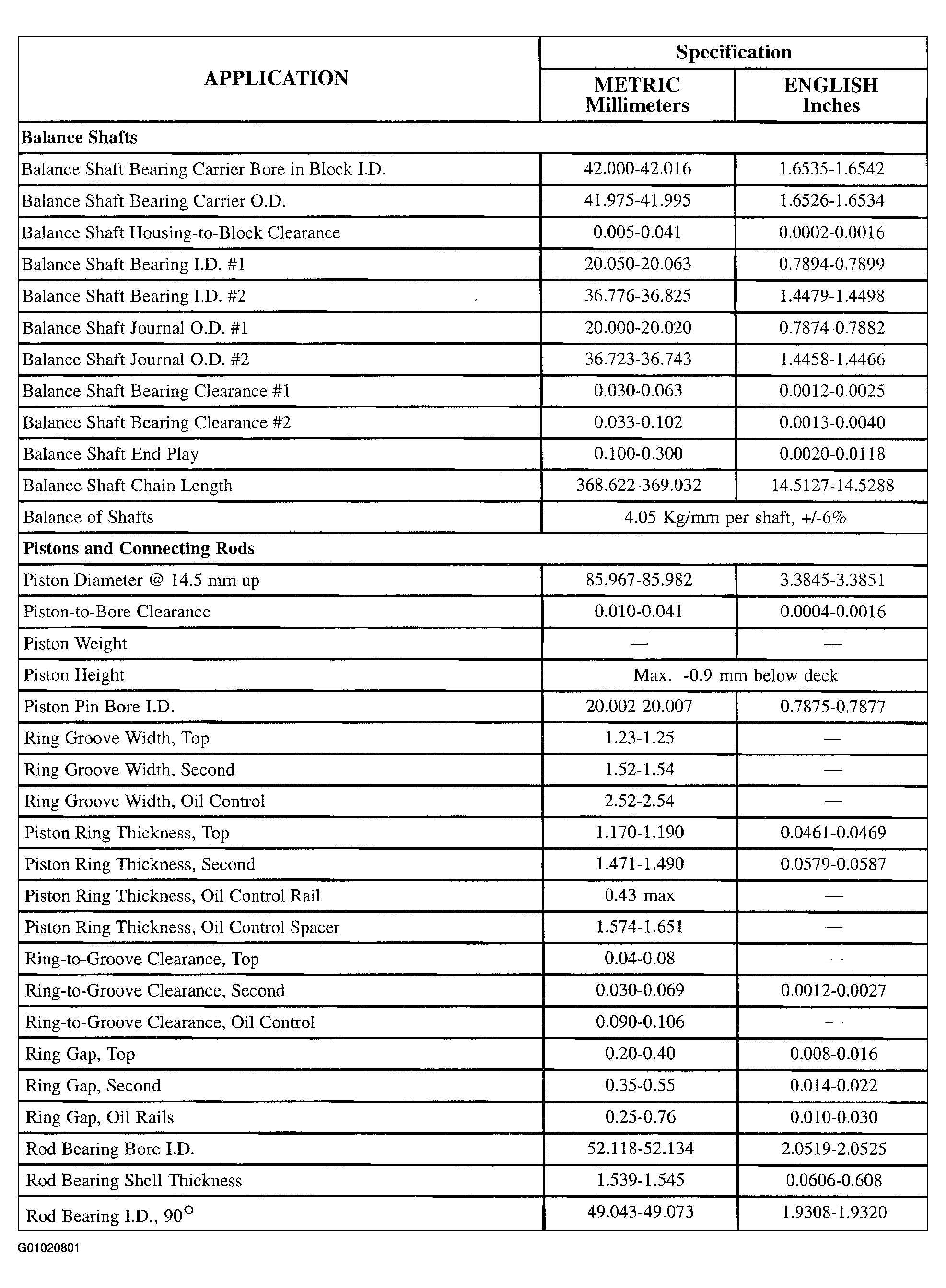

Fig 3: Design Specifications (3 Of 5)

Courtesy of GENERAL MOTORS CORP.

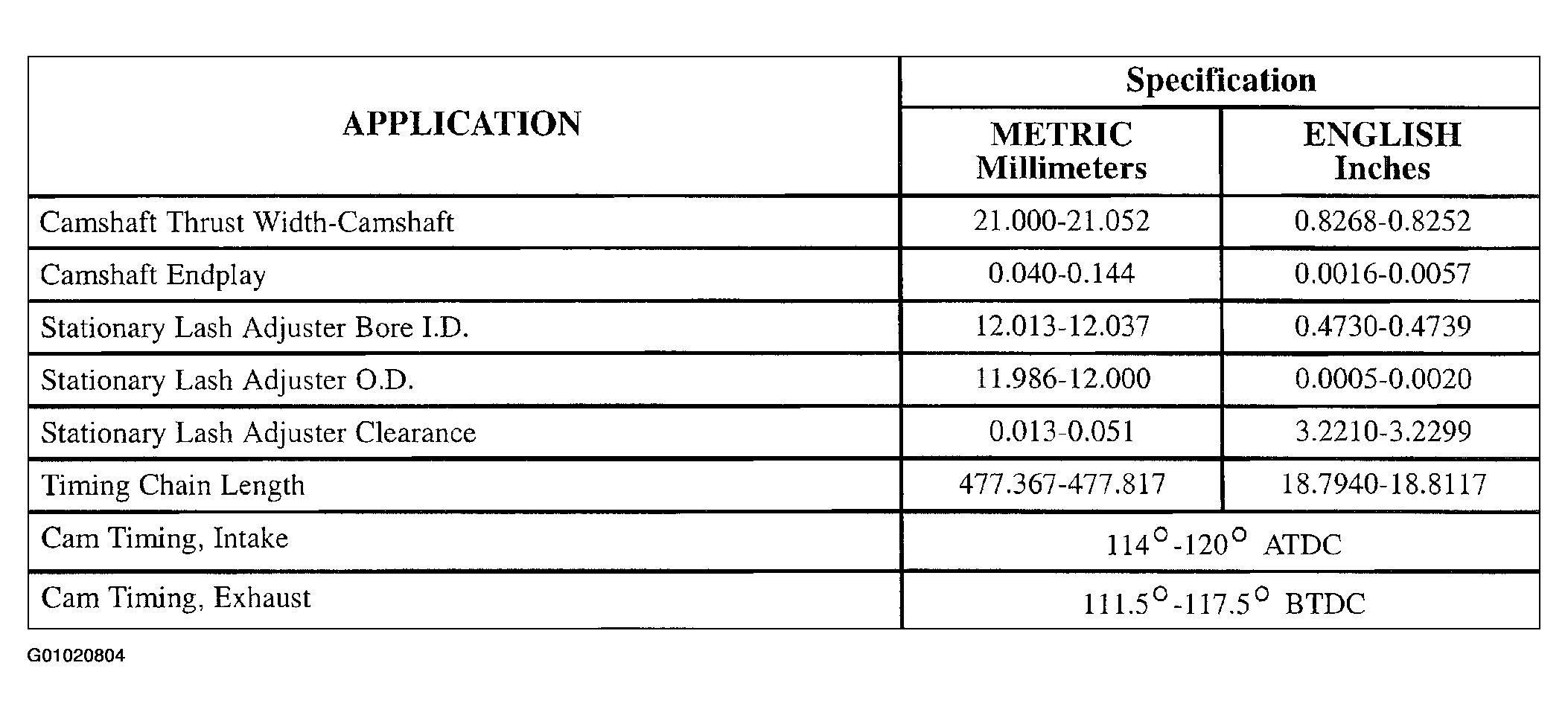

Fig 4: Design Specifications (4 Of 5)

Courtesy of GENERAL MOTORS CORP.

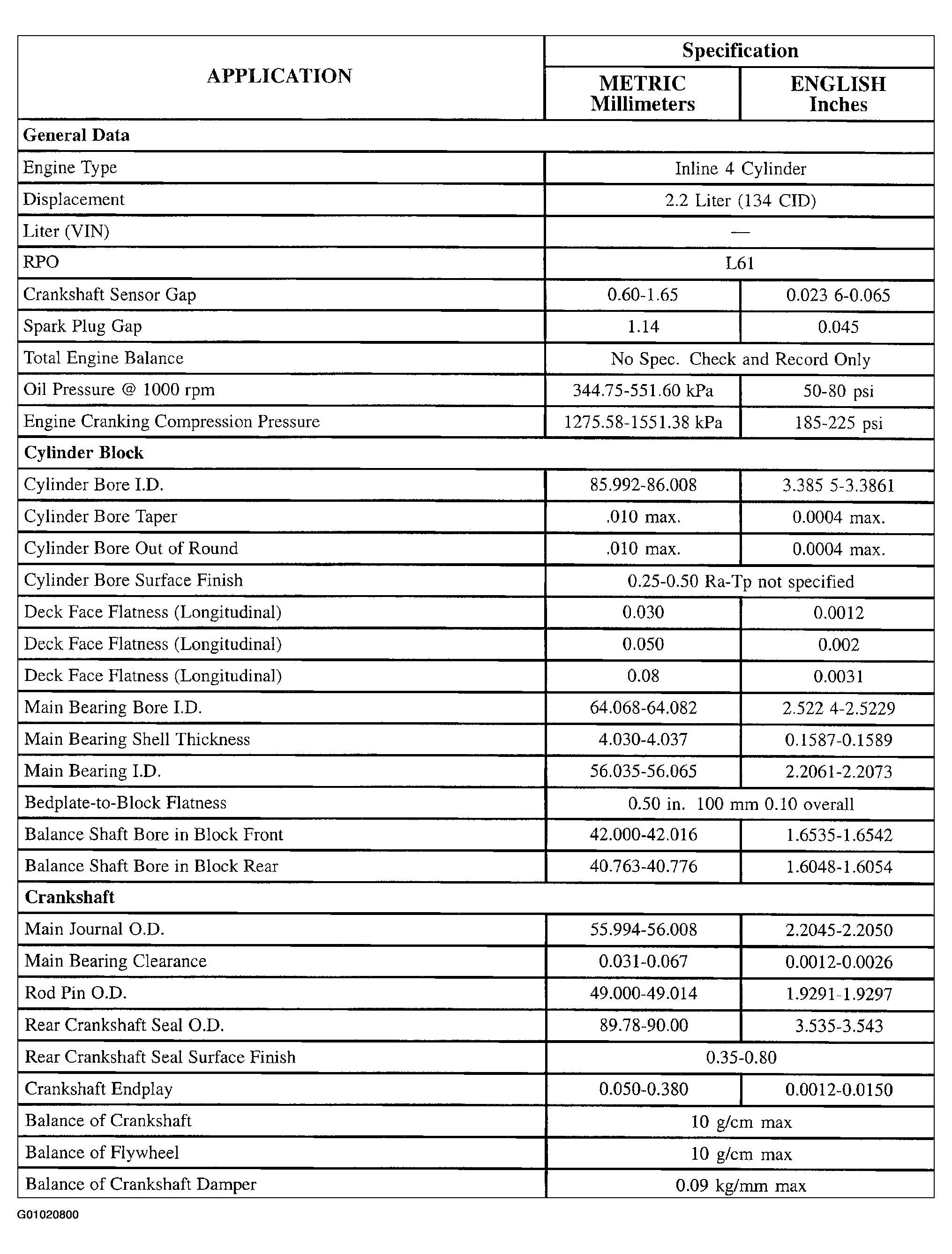

Fig 5: Design Specifications (5 Of 5)

Courtesy of GENERAL MOTORS CORP.
