Ignition Module (Unit Repair): Installation

  1. Install spark plugs.

    Torque:

    Spark Plug: 25 N.m (18 ft-lbs)

  2. Install ignition module.

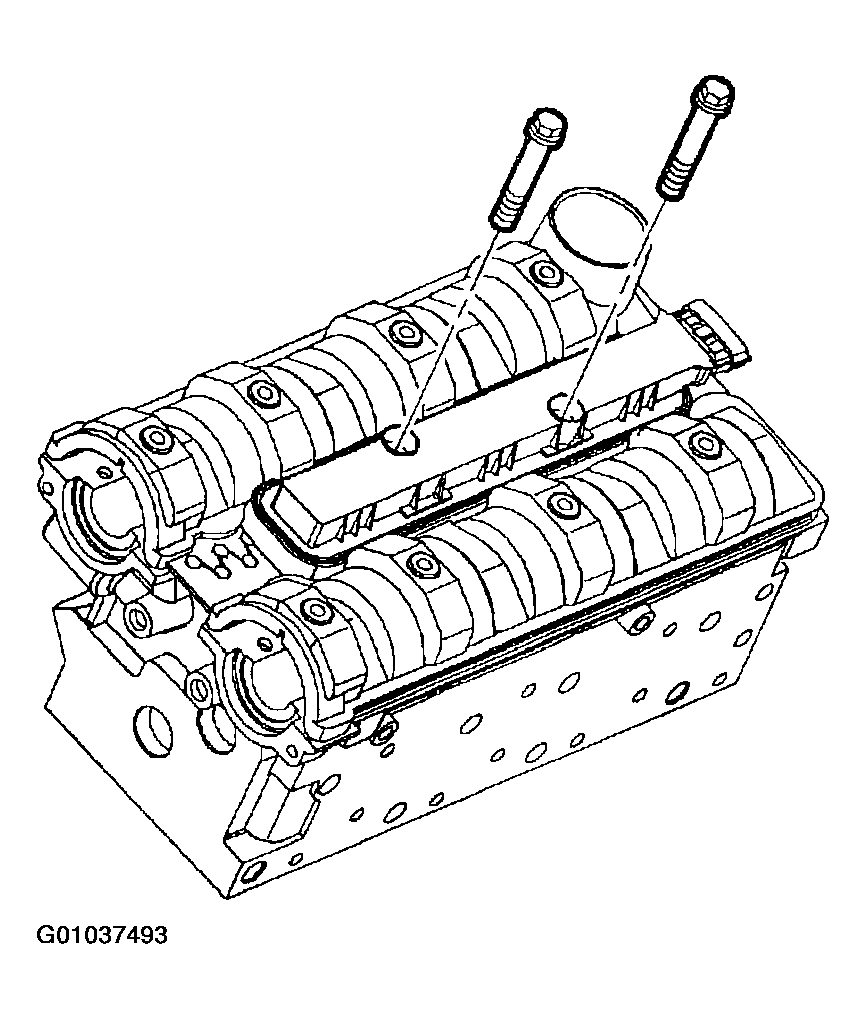

    Fig 1: Installing Ignition Module
    G01037493Courtesy of GENERAL MOTORS CORP.
  3. Install ignition module bolts.

    Torque:

    Ignition Module Bolt: 8 N.m (71 in-lbs)
