Wheel Alignment Specifications
>>
Specifications
>>
S Series
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
S Series

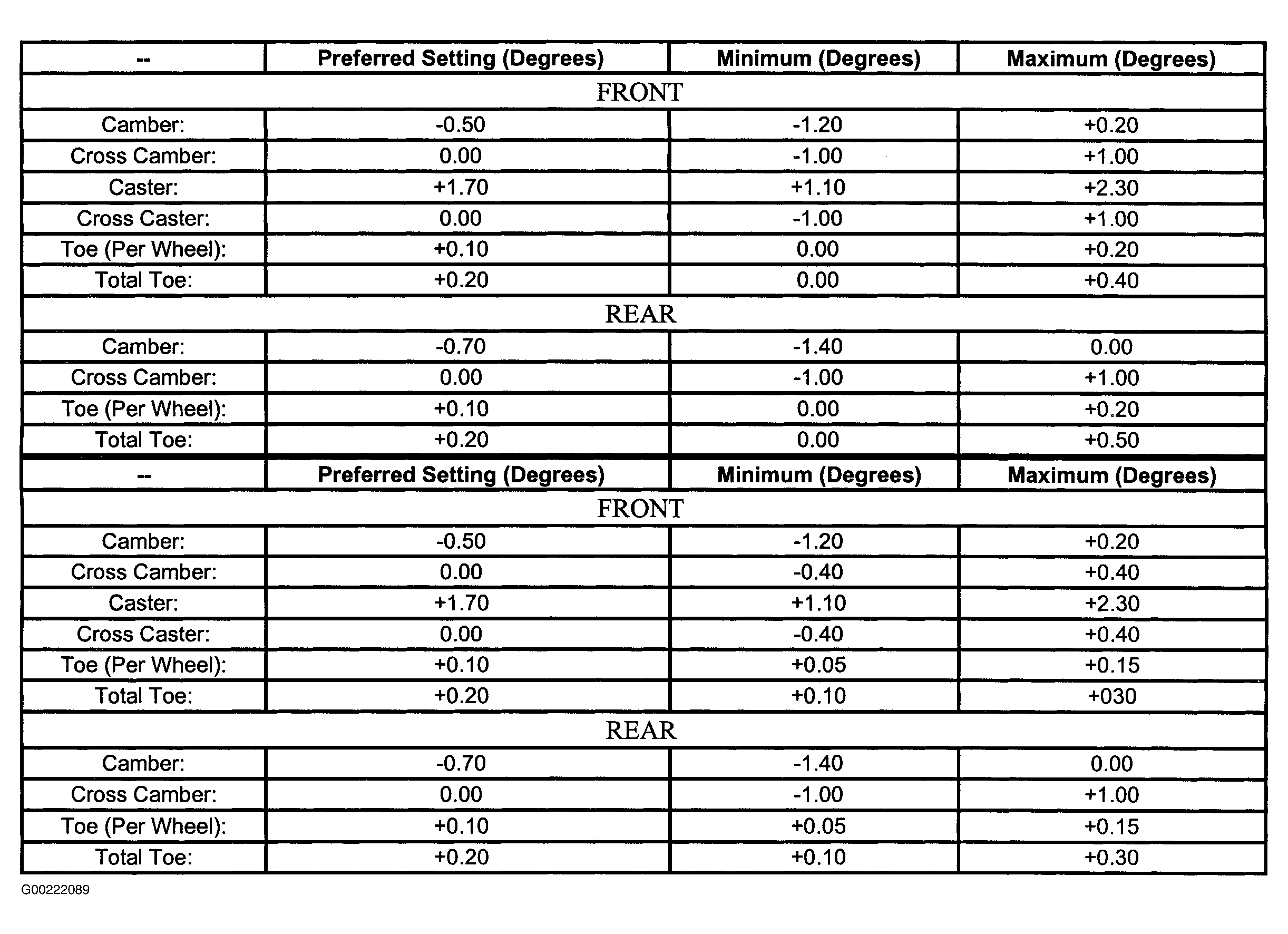

Fig 1: Wheel Alignment Specifications (S Series)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
