Saturn
>>
2002
>>
VUE L4-2.2L VIN D
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Continuously Variable Transmission/Transaxle, CVT
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

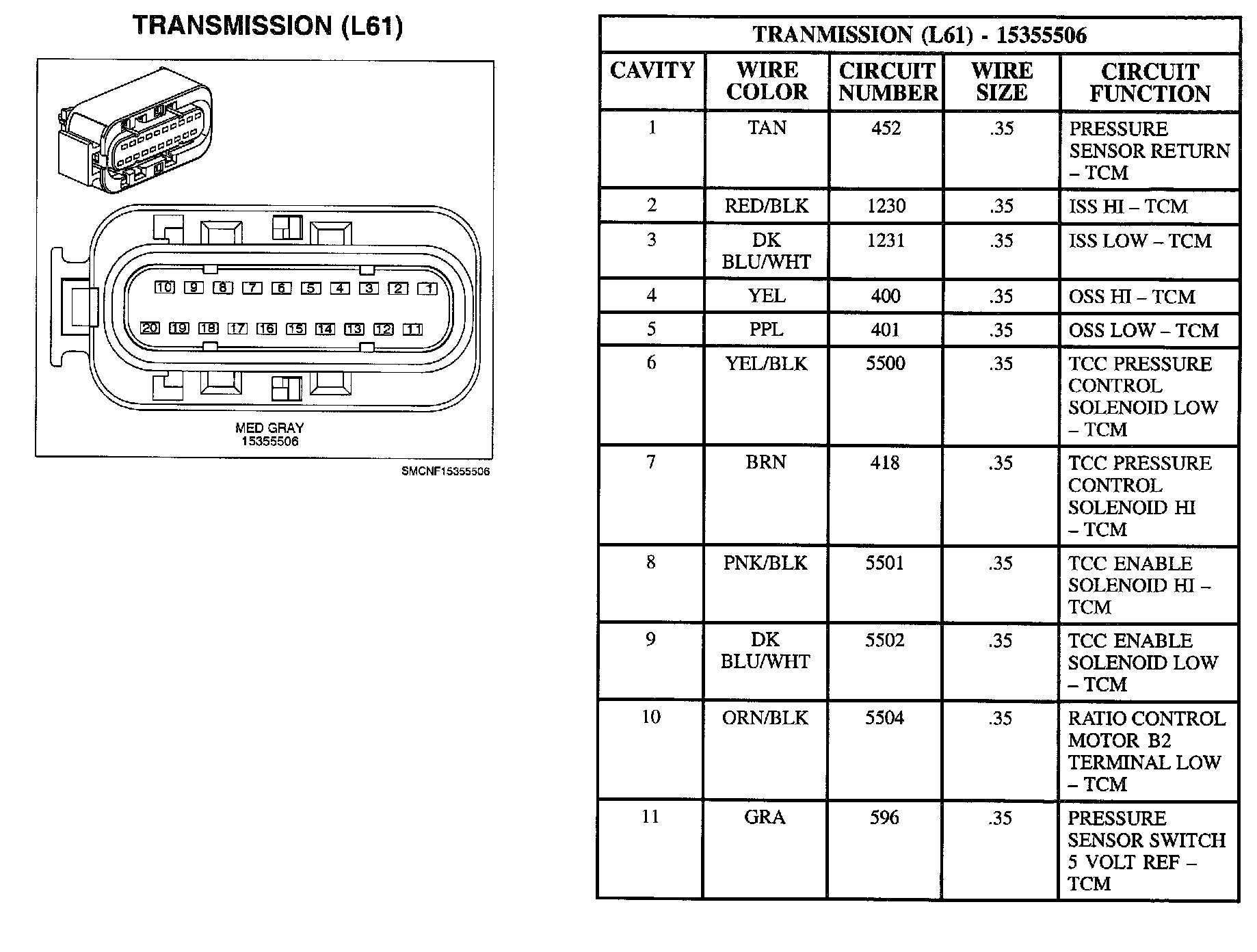

Transmission (L61) Part 1:

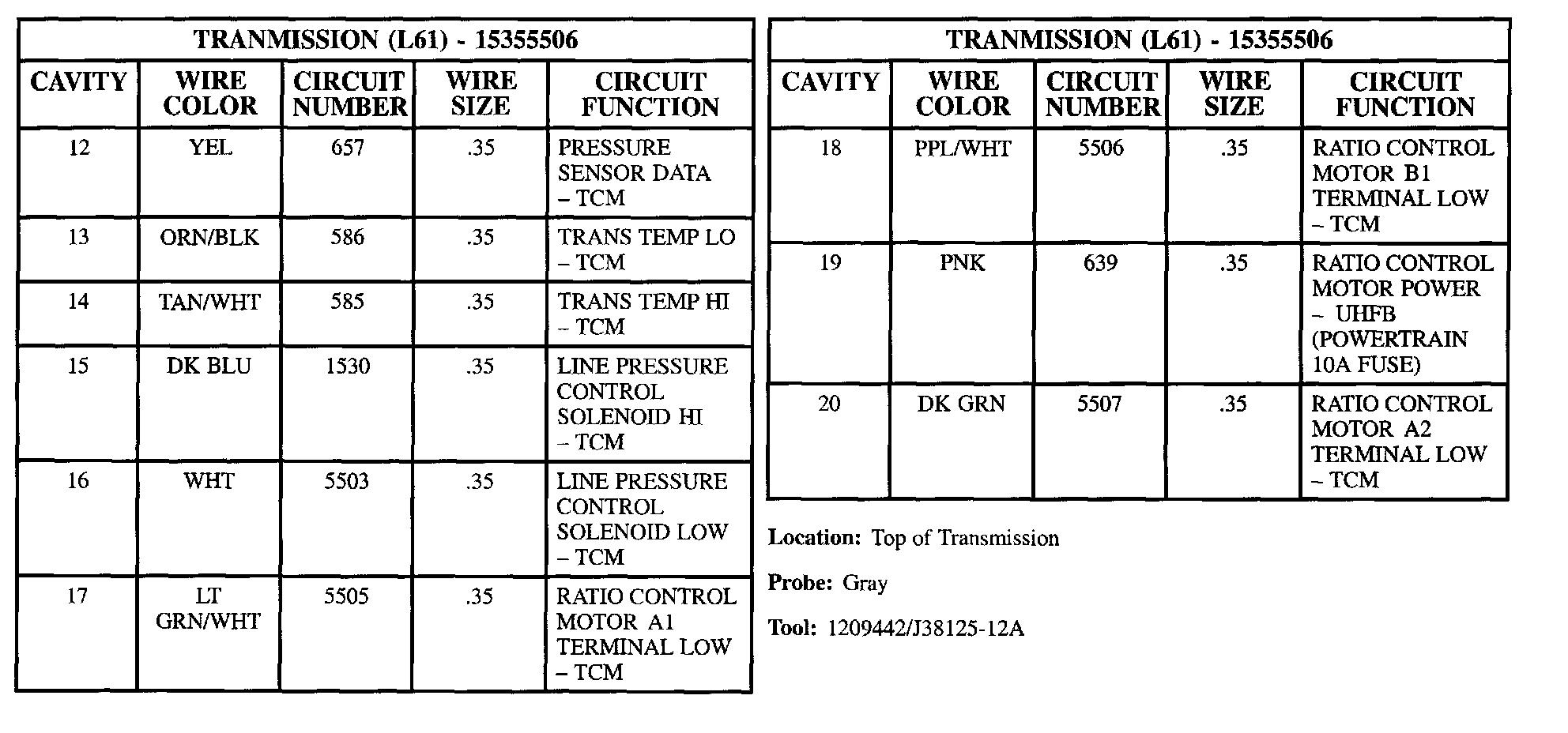

Transmission (L61) - Part 2:

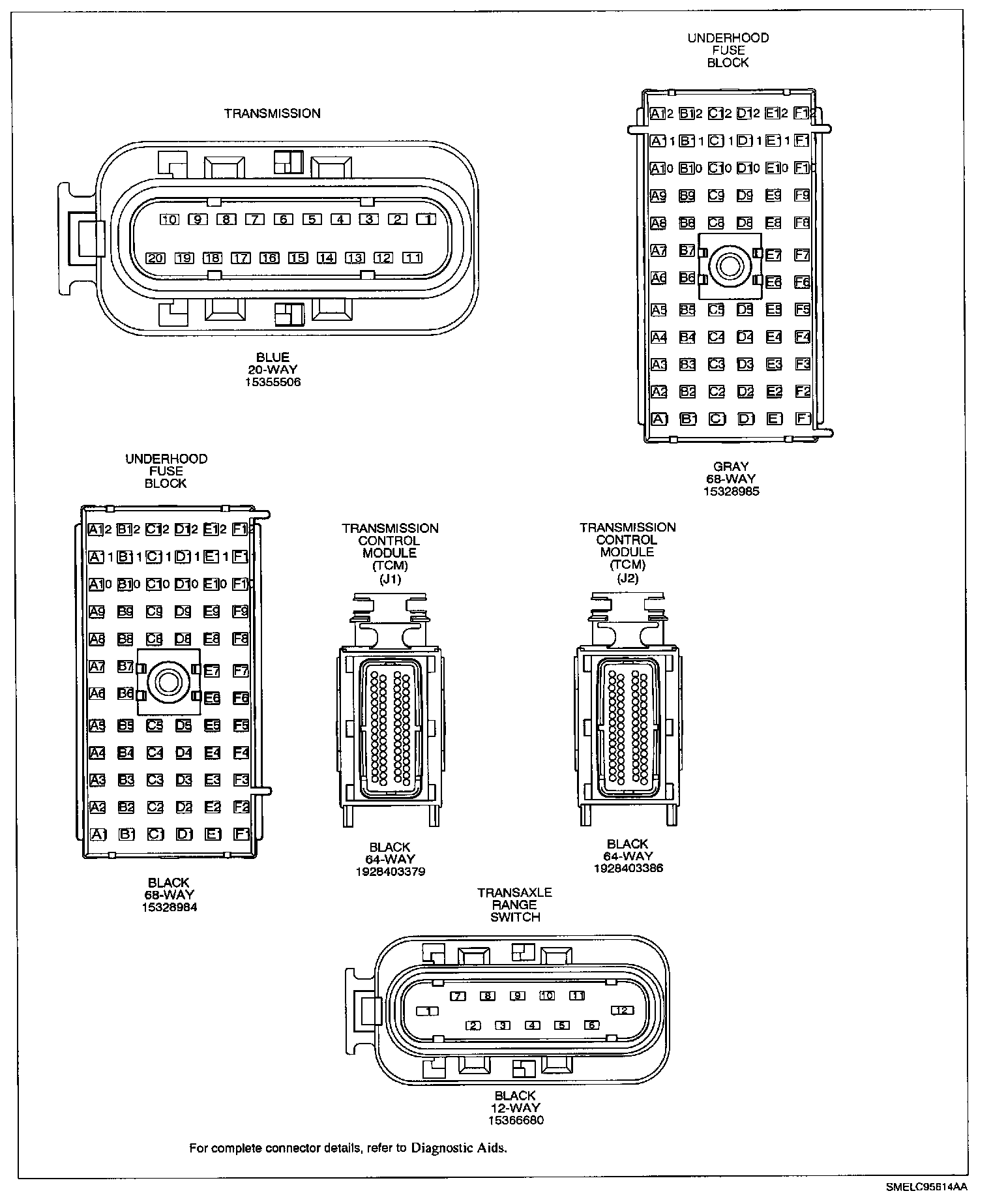

VT25-E Connector Face Views - 4-Cyl:
