Manual Transmission/Transaxle

TRANSAXLE SERVICE MANUAL (MANUAL TRANSAXLE)

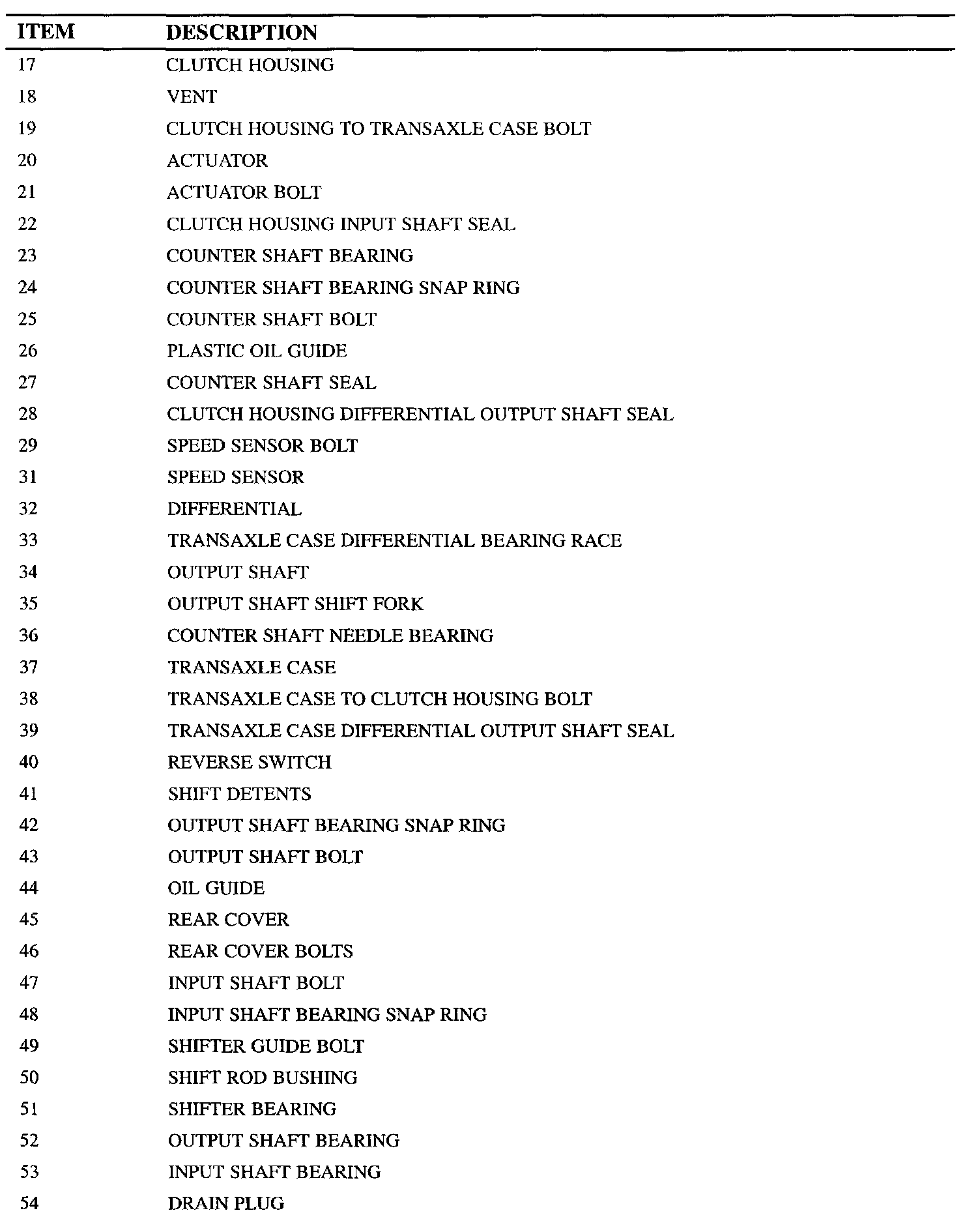

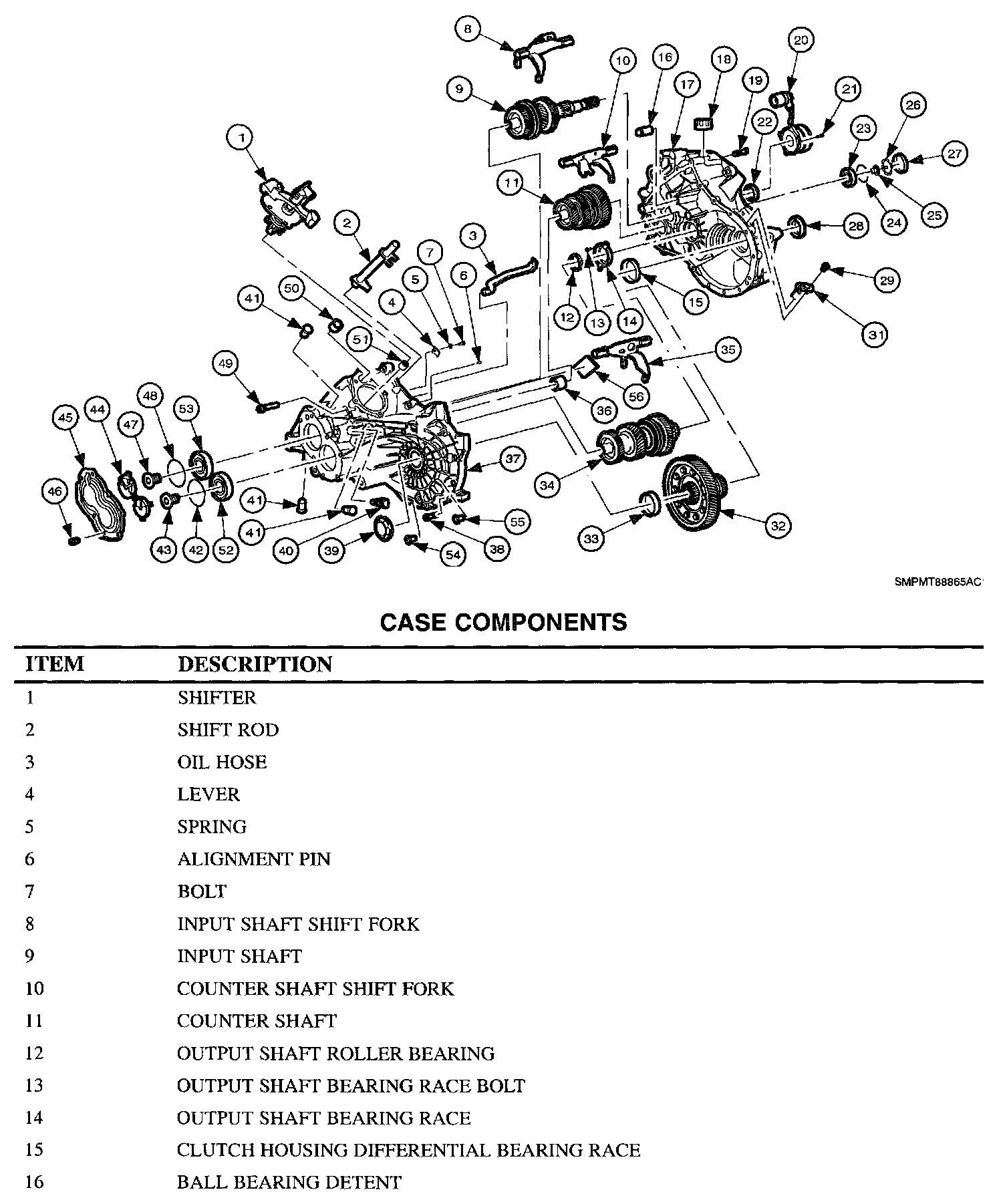

GENERAL DIAGNOSTIC INFORMATION CASE COMPONENTS

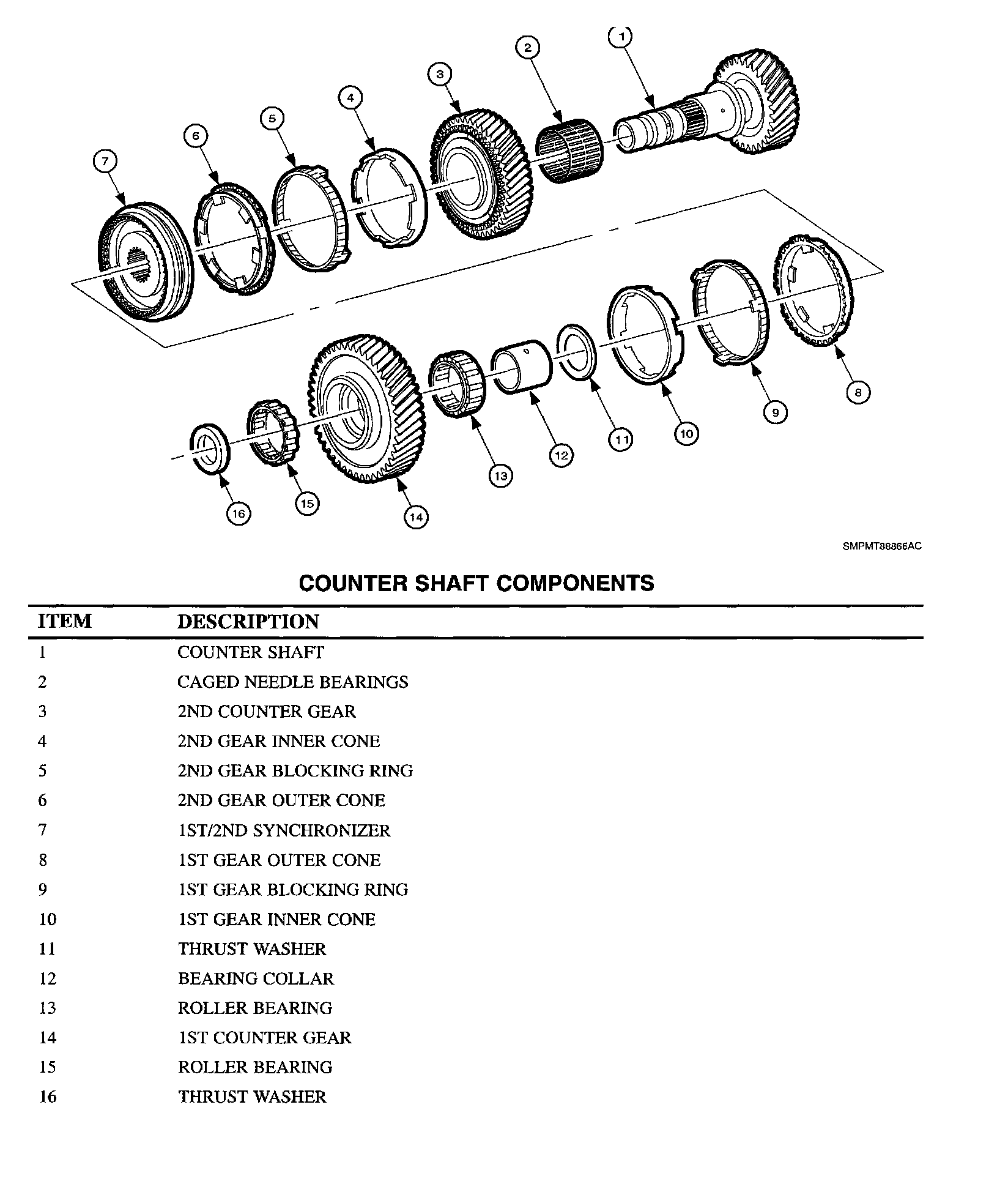

COUNTER SHAFT COMPONENTS

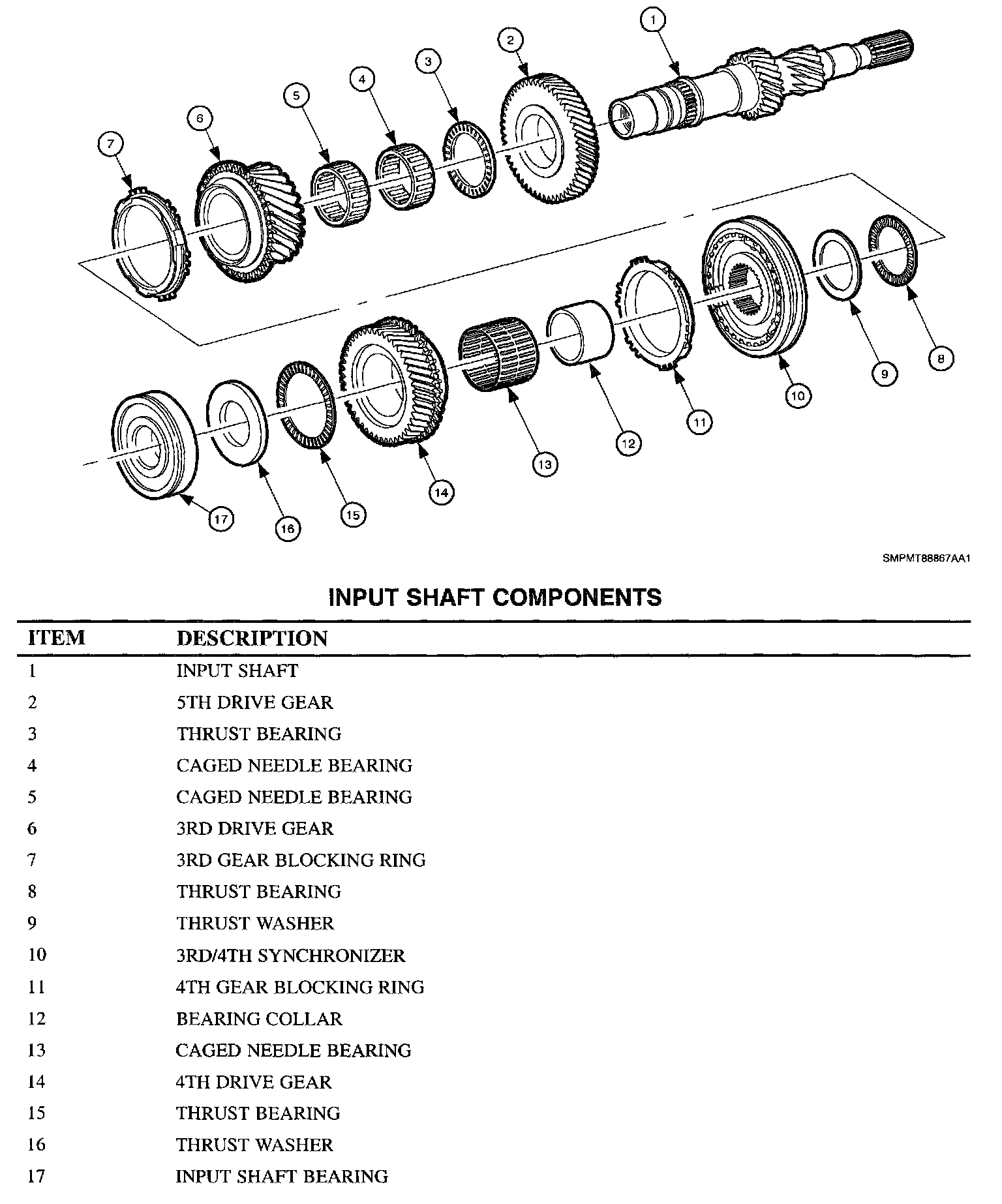

INPUT SHAFT COMPONENTS

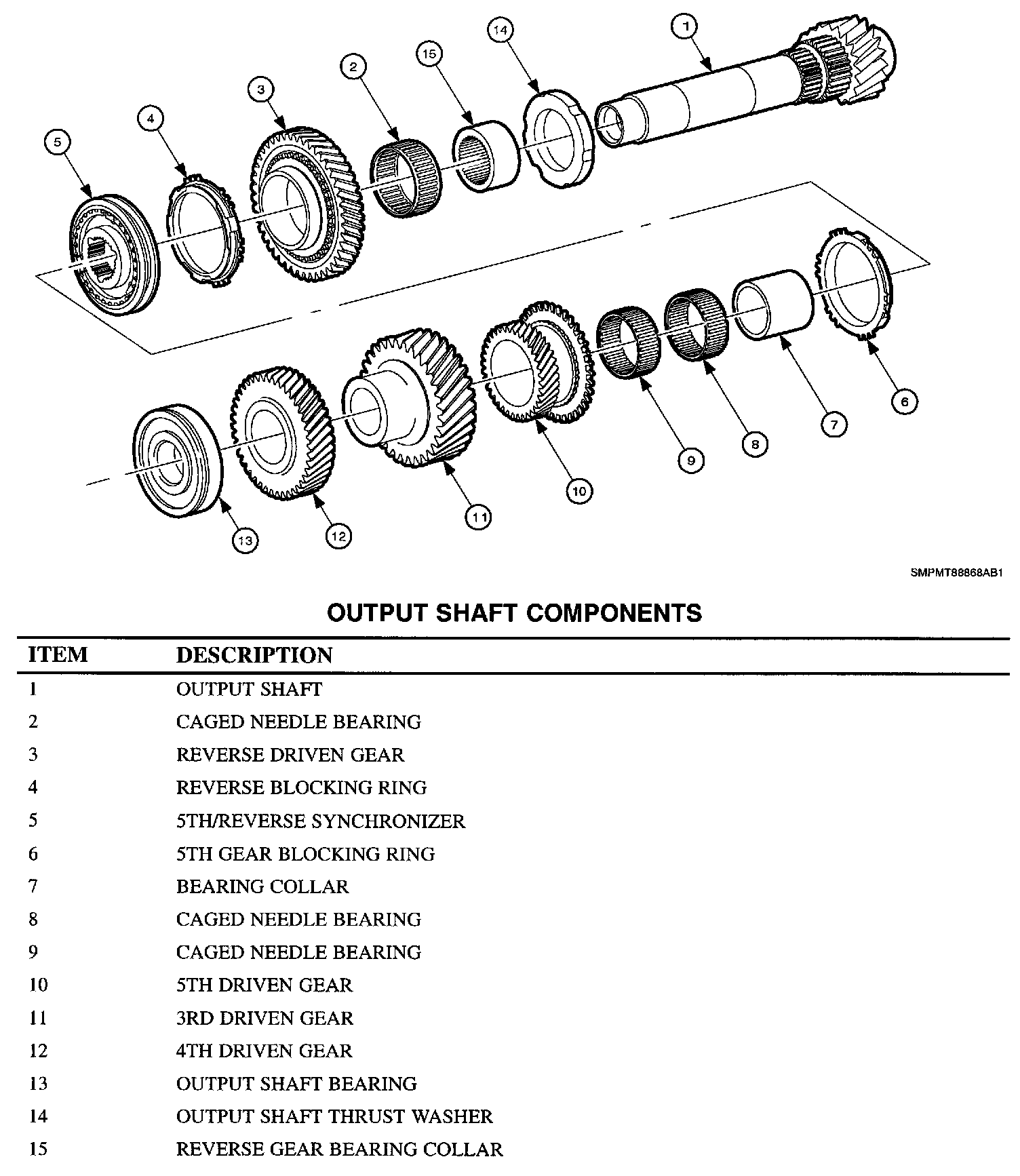

OUTPUT SHAFT COMPONENTS

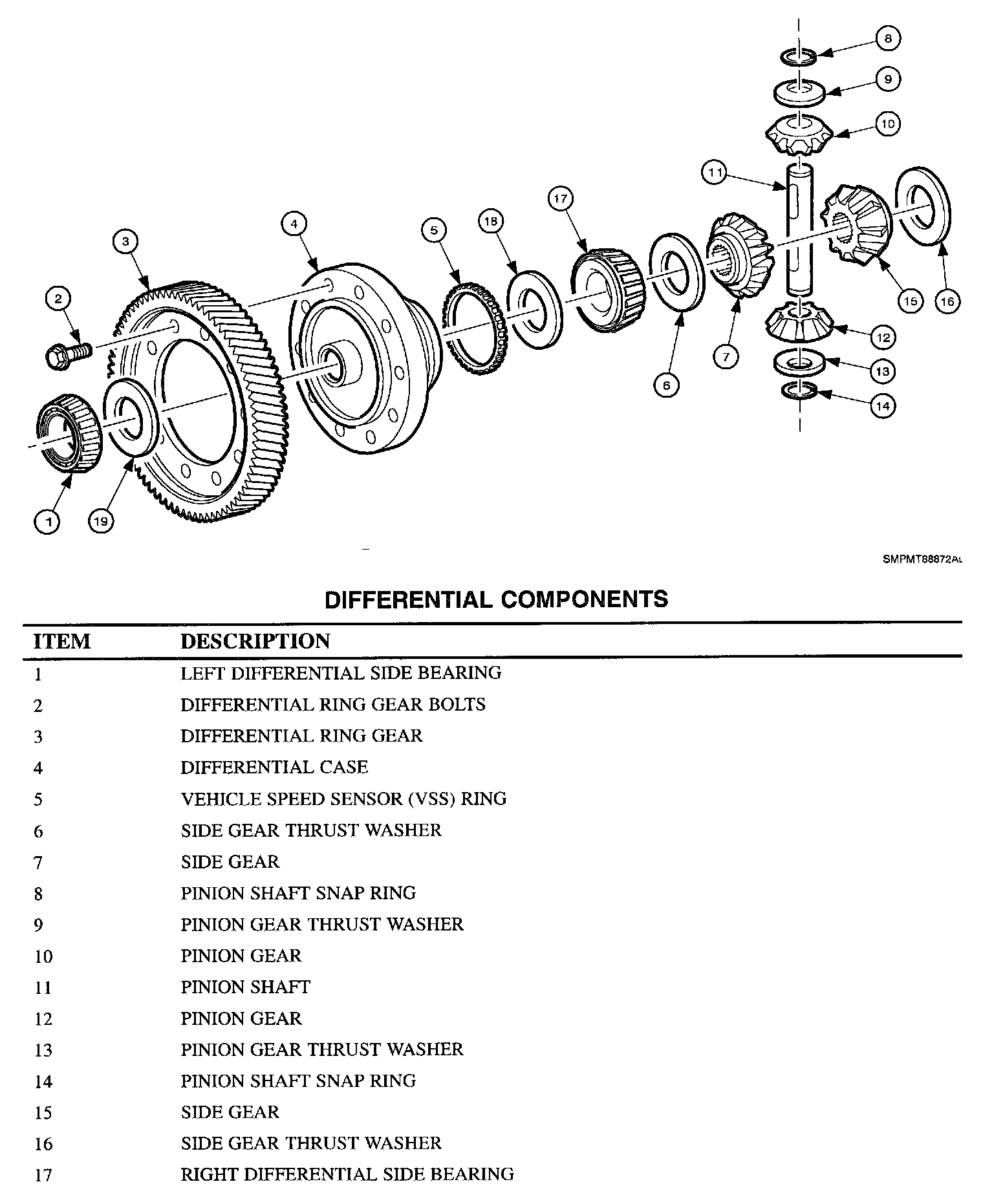

DIFFERENTIAL COMPONENTS
