Throttle Actuator Control Module Connector End View

Fig 1: Throttle Actuator Control Module
G00134174Courtesy of GENERAL MOTORS CORP.

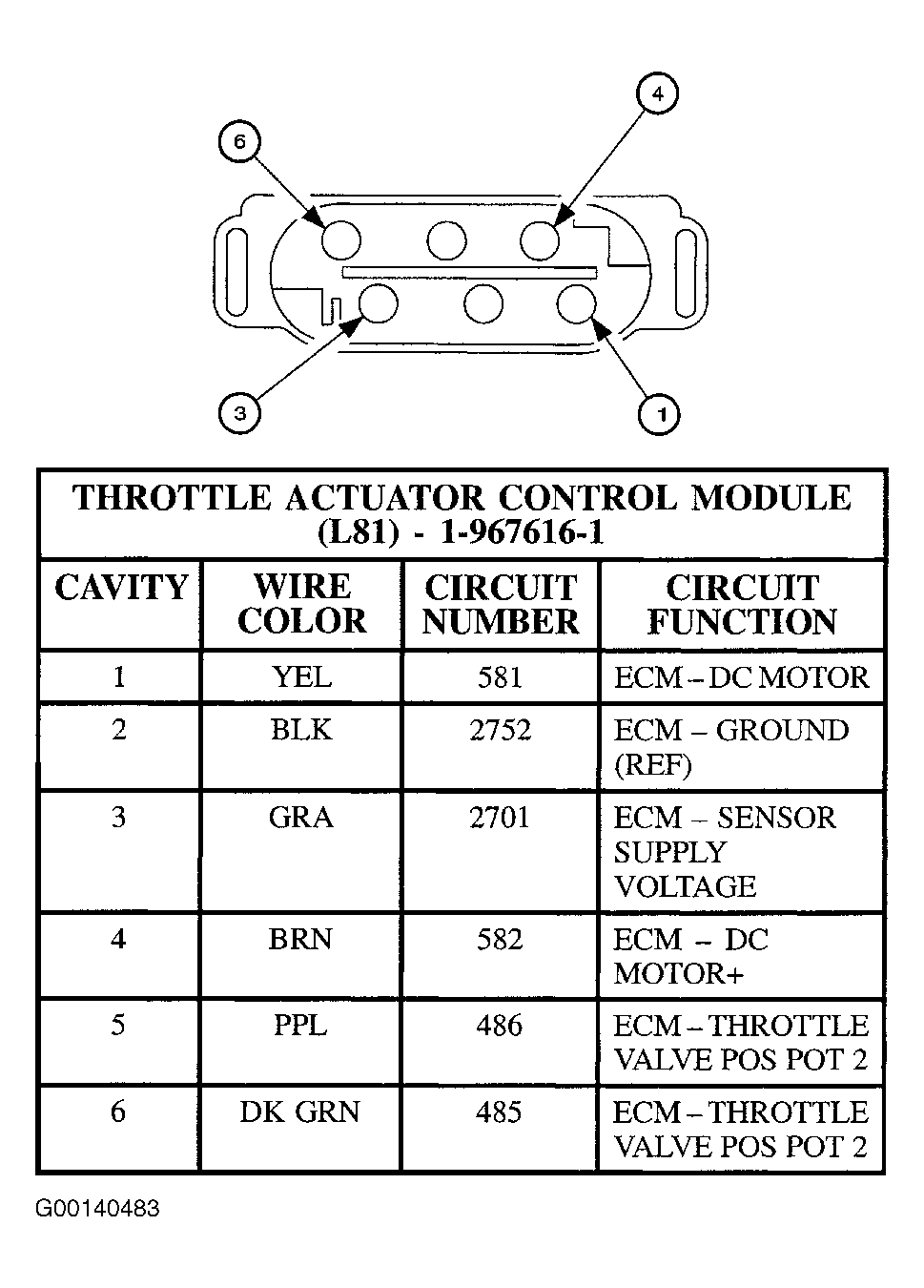

Fig 1: Throttle Actuator Control Module
G00140483Courtesy of GENERAL MOTORS CORP.
