Diagnostic System Check

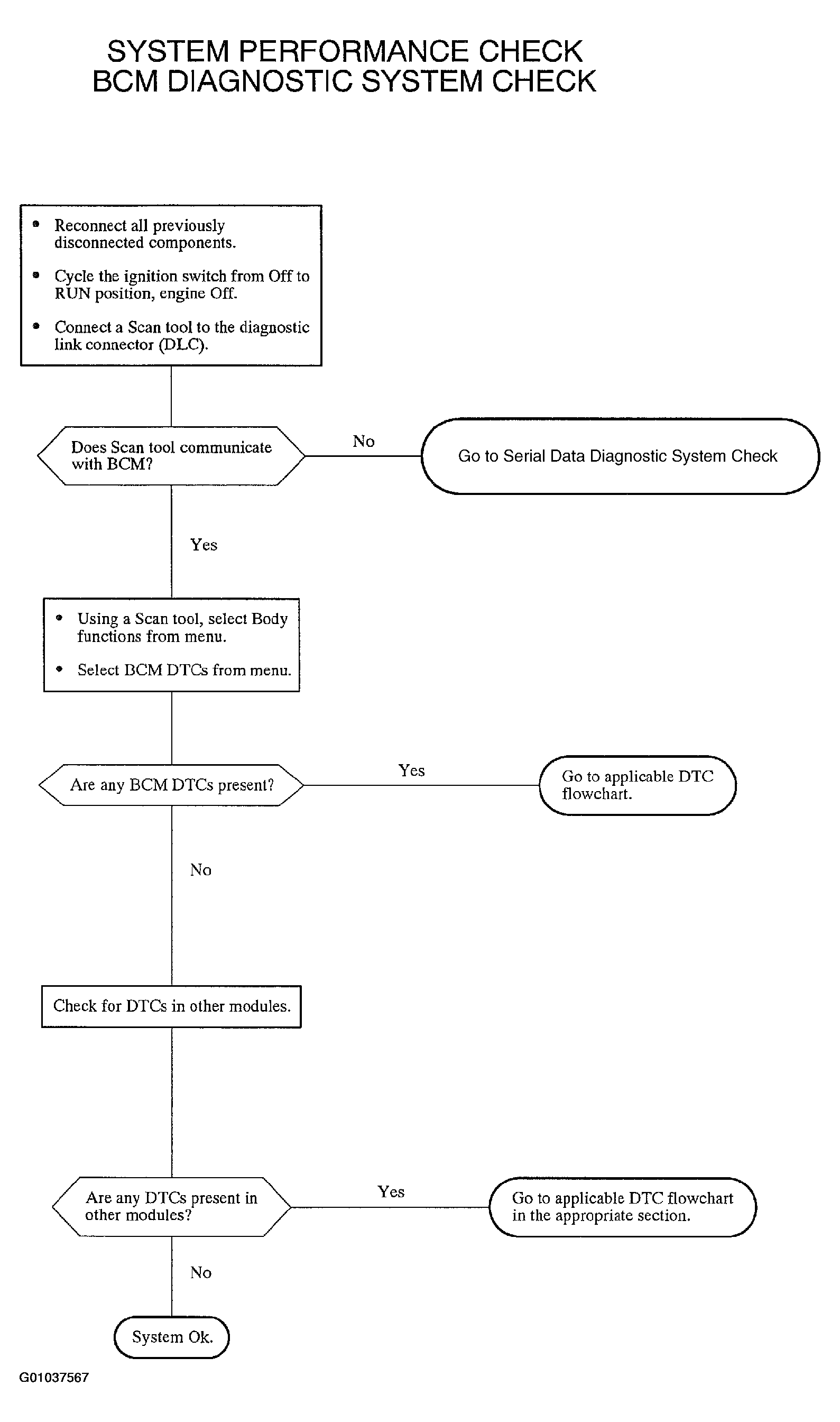

Fig 1: Diagnostic System Check Flow Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
