Serial Data Link Connector Face Views

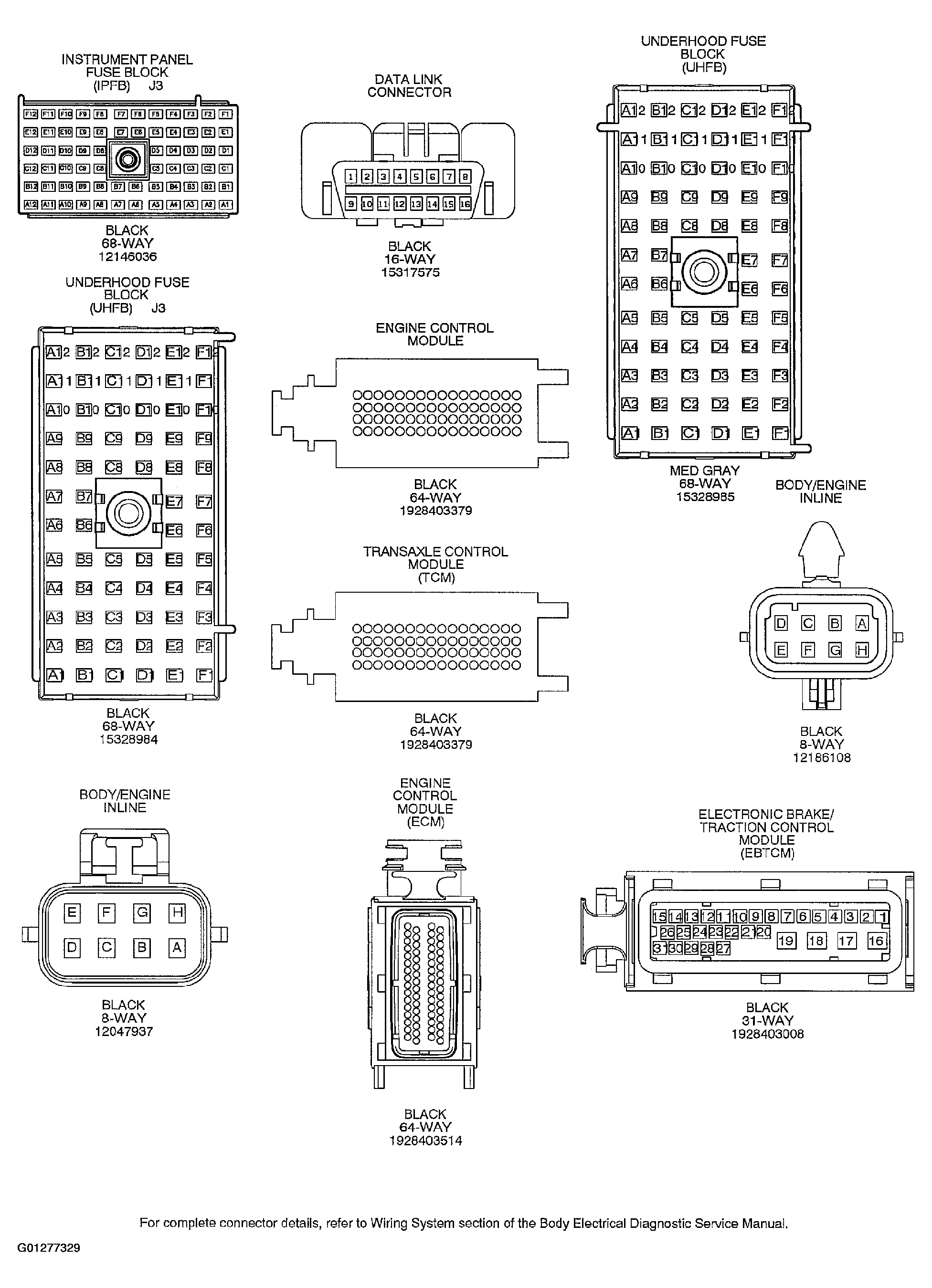

Fig 1: Serial Data Link Connector Face Views (1 of 3)
Courtesy of GENERAL MOTORS CORP.

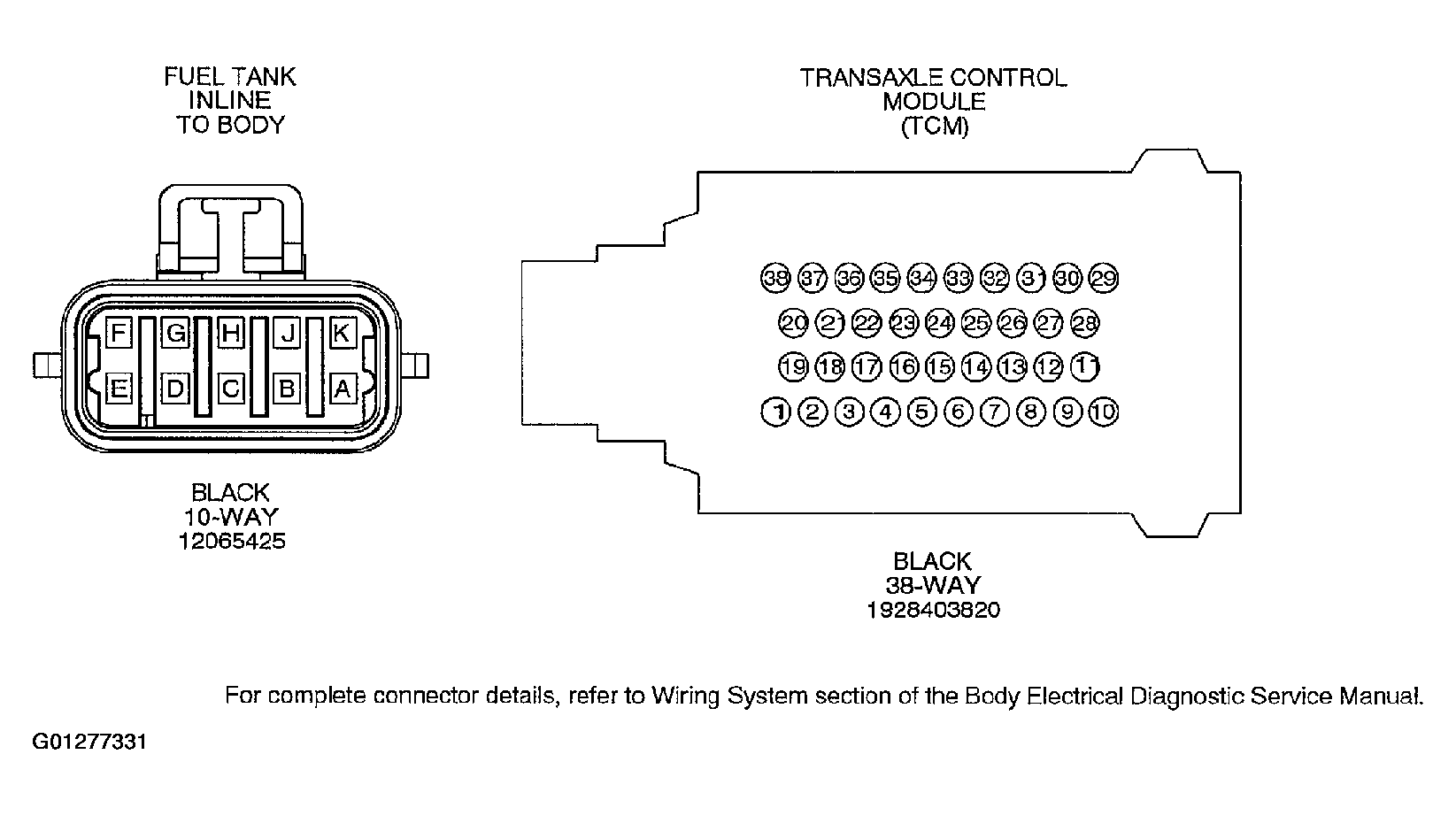

Fig 2: Serial Data Link Connector Face Views (2 of 3)
Courtesy of GENERAL MOTORS CORP.

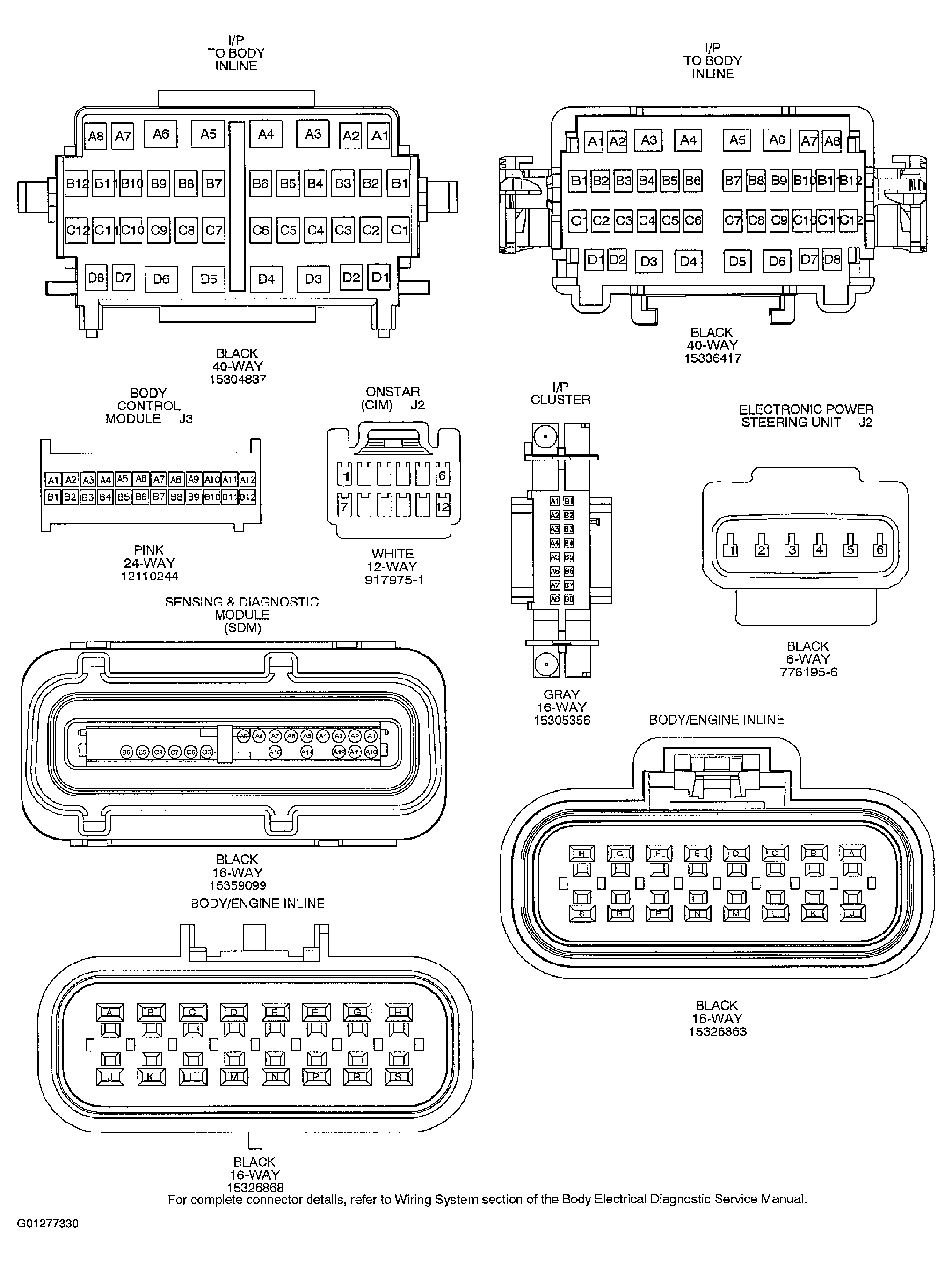

Fig 3: Serial Data Link Connector Face Views (3 of 3)
Courtesy of GENERAL MOTORS CORP.
