Chart 2 - Both Left Windows Inoperable Or Both Right Windows Inoperable

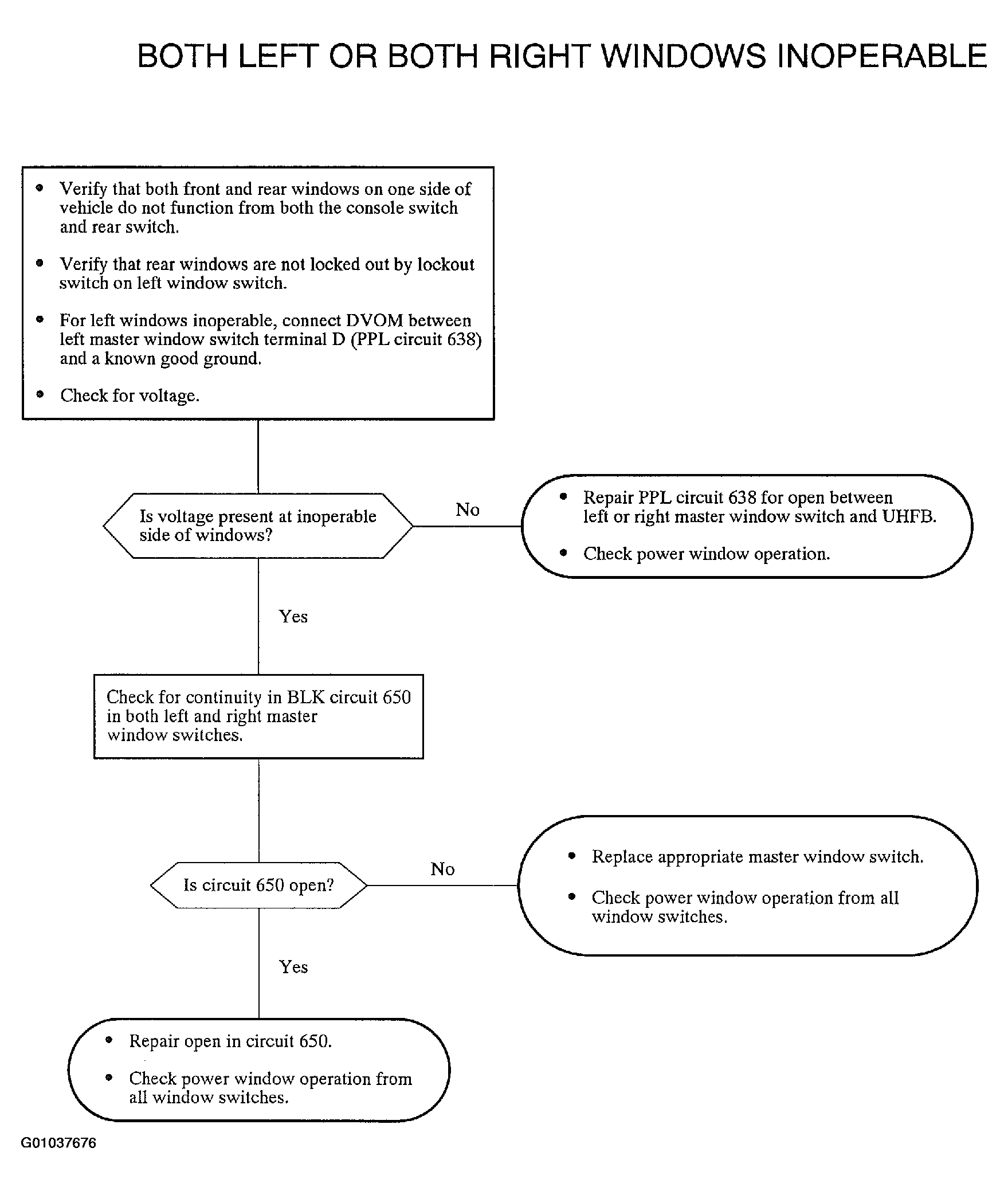

Fig 1: Both Left Or Both Right Windows Inoperable Testing Flow Chart
G01037676Courtesy of GENERAL MOTORS CORP.
