Power Mirror Switch

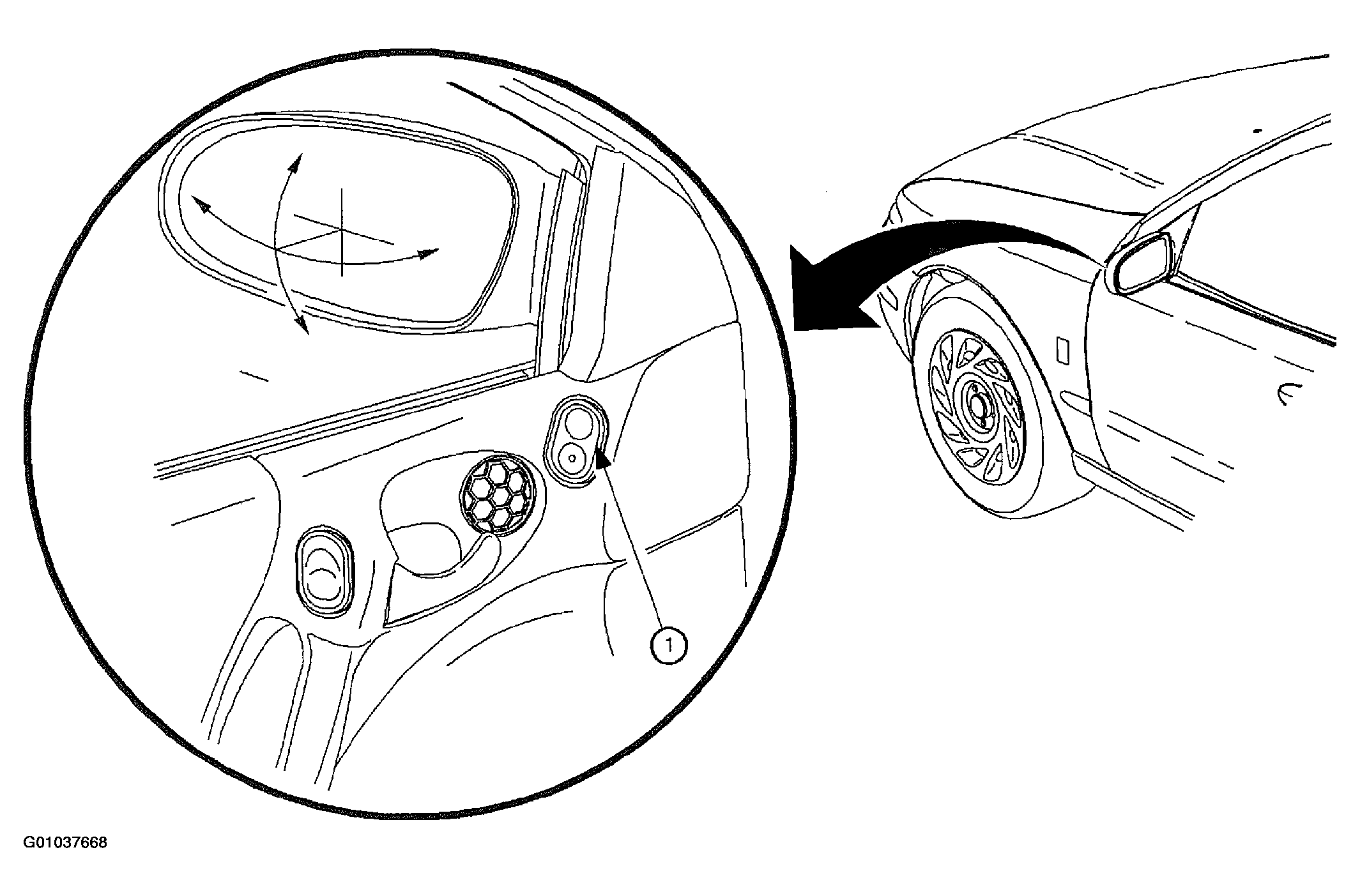

The power mirror switch controls right and left mirror position. The mirror select switch (rocker switch) allows control of the right or left mirror. The mirror adjustment switch (pad switch) allows control of the mirror position: UP, DOWN, RIGHT, or LEFT.
With the mirror select switch in left mirror position, the circuit operation is as follows:
UP/DOWN POSITION: Battery voltage is supplied through circuit 440 to circuit 1496 (YEL) to the left mirror motor. Voltage flows through circuit 89 (LT GRN) to the power mirror switch and is grounded through circuit 650.
LEFT/RIGHT POSITION: Battery voltage is supplied through circuit 440 to circuit 1496 (YEL) to the left mirror motor. Voltage flows through circuit 81 (WHT) to the power mirror switch and is grounded through circuit 650.
With the mirror select switch in right mirror position, the circuit operation is as follows:
UP/DOWN POSITION: Battery voltage is supplied through circuit 440 to circuit 1496 (YEL) to the left mirror motor. Voltage flows through circuit 889 (PPL/WHT) to the power mirror switch and is grounded through circuit 650.
LEFT/RIGHT POSITION: Battery voltage is supplied through circuit 440 to circuit 1496 (YEL) to the left mirror motor. Voltage flows through circuit 881 (RED/WHT) to the power mirror switch and is grounded through circuit 650.
