Fuel Level Sender Unit And Float: Installation

  1. Install fuel level sender unit and float onto fuel pump module. Make sure that sender card snaps into place.
  2. Connect fuel level sender unit and float electrical.

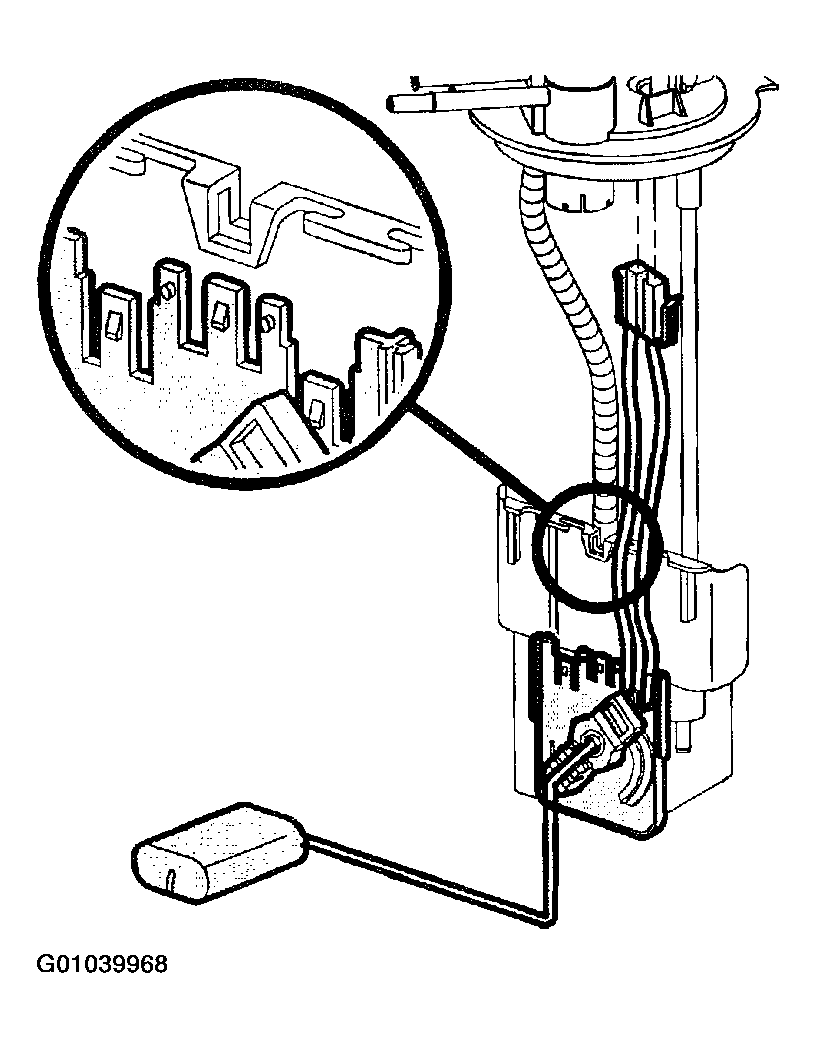

    Fig 1: Connecting fuel level sender unit and float electrical
    G01039968Courtesy of GENERAL MOTORS CORP.
  3. Install fuel pump module into fuel tank. Refer to PRIMARY FUEL PUMP MODULE  or SECONDARY FUEL PUMP MODULE .
  4. Install fuel tank. Refer to FUEL TANK .
