Lighting Systems Component Views

WARNING: This page is about a different car, the 2003 Saturn Ion 3, 2003 Saturn Ion 2, and 2003 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Top Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Light Sensor (T82)

Fig 2: Center Console Of Vehicle (M43 or M75) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Control Solenoid
2	Ignition Lock Cylinder Control Switch
3	A/T Shift Indicator Lamp
4	C351

Fig 3: Left Rear End Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Turn Signal Lamp - Left
2	Tail/Stop Lamp - Left
3	Backup Lamp - Left

Fig 4: Right Rear End Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Turn Signal Lamp - Right
2	Tail/Stop Lamp - Right
3	Backup Lamp - Right

Fig 5: Headliner Wiring Harness Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inside Rear View Mirror C1 (C74)
2	Inside Rear View Mirror C2 (C74)
3	Sunroof Switch (CF5)
4	Sunroof Module (CF5)
5	Dome Lamp
6	C375
7	Center High Mounted Stop Lamp (CHMSL)
8	C380 (UE1)

Fig 6: Right Front Door Jamb Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - RF, LF Similar

Fig 7: Right Rear Door Jamb Switch In B-Pillar Component View - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - RR, LR Similar

Fig 8: Left Front Side Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Pump
2	Horn
3	Fog Lamp - LF

Fig 9: Right Front Of Vehicle (T37) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C110
2	Fog Lamp RF

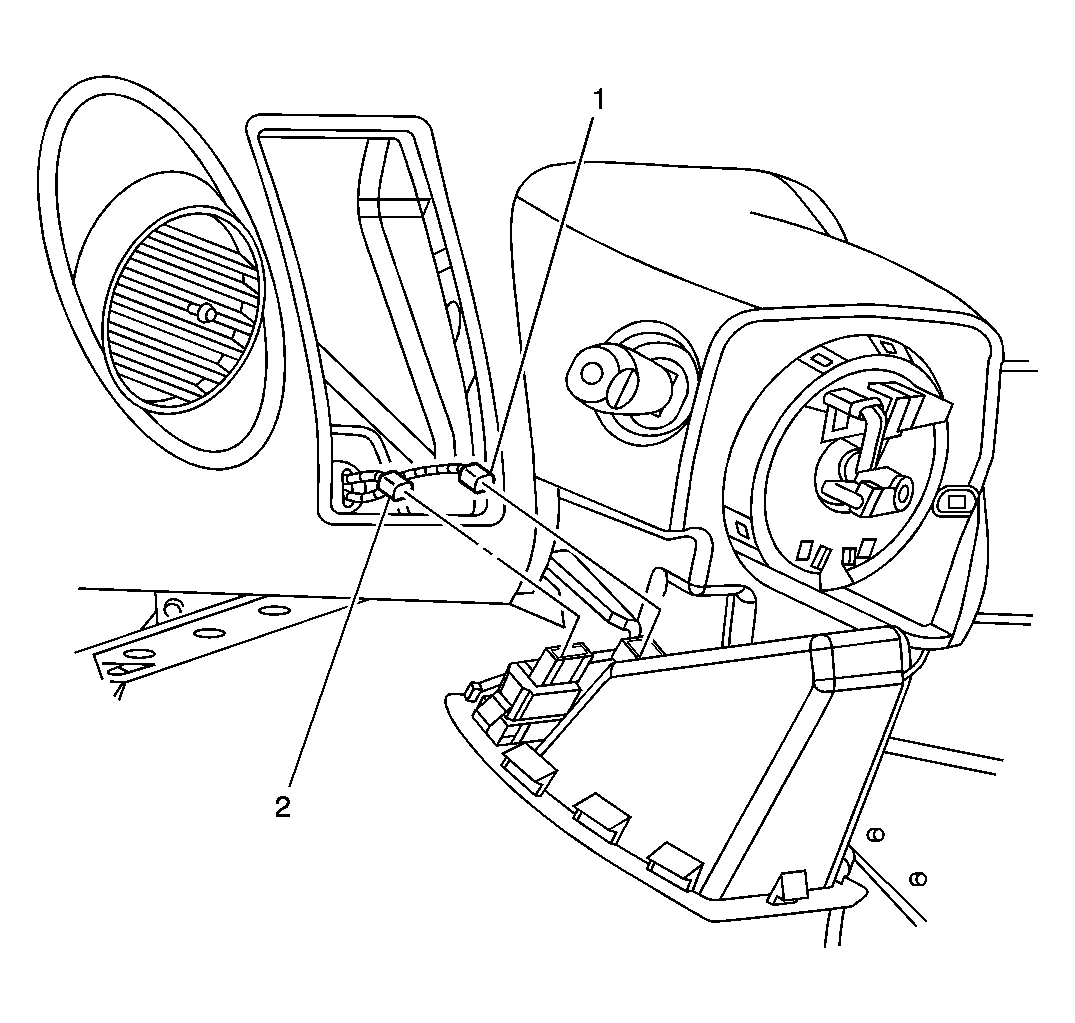

Fig 10: Left Side of the Steering Column Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fog Lamp Switch
2	I/P Dimmer Switch

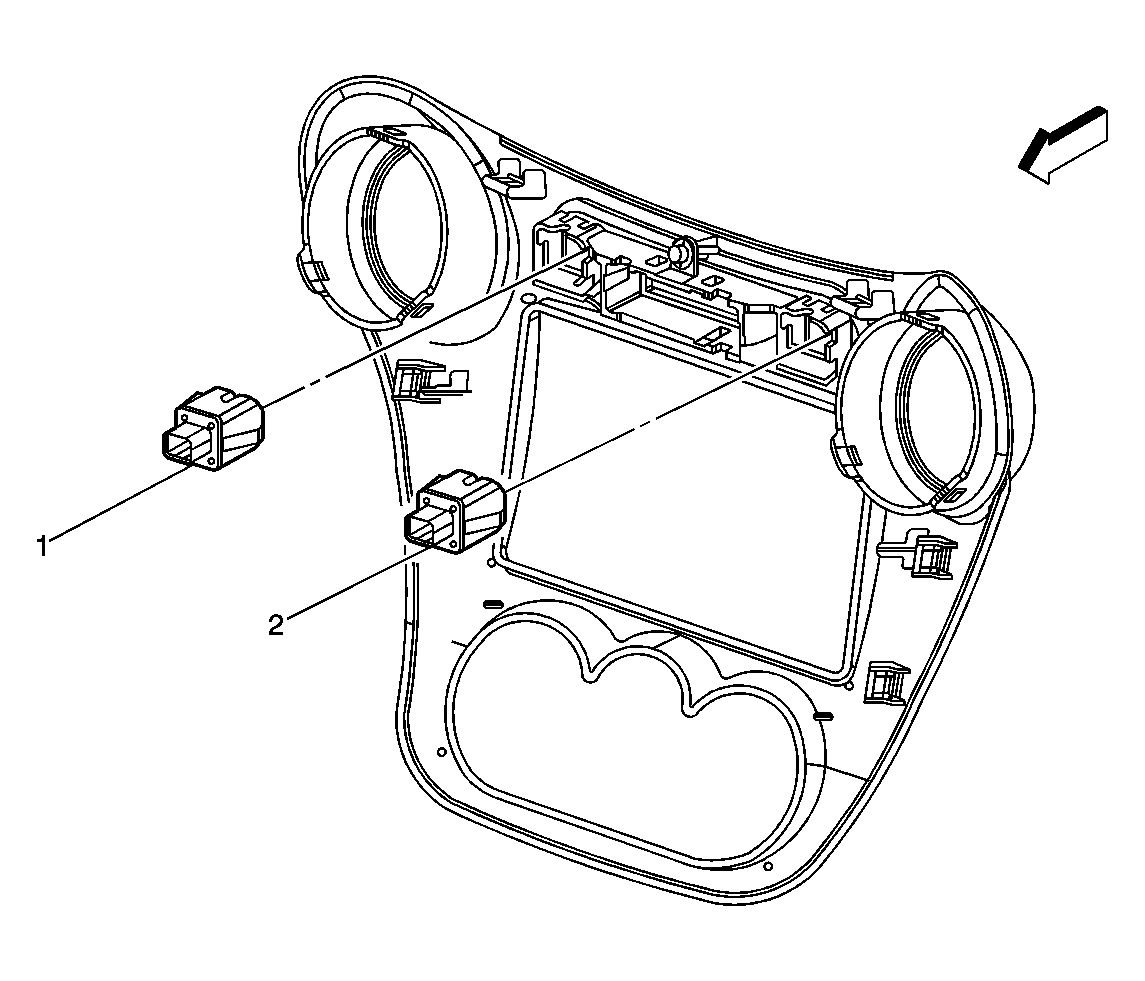

Fig 11: Top Center of the I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Traction Control Switch (NW7)
2	Hazard Switch

Fig 12: Left Front Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C111 (Sedan), C110 Similar on Right
2	Park/Turn Signal Lamp - LF (Sedan), RF Similar
3	Headlamp - Left (Sedan), Right Similar
4	Headlamp - Left (Coupe), Right Similar
5	Park/Turn Signal Lamp - LF (Coupe), RF Similar

Fig 13: Vehicle Rear Gate Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Component Lid Latch
2	License Lamp
3	C401

Fig 14: Left Front Side Of Vehicle Component View (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - LF, RF Similar

Fig 15: Lower Left Front Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Stop Lamp Switch - Upper
2	Stop Lamp Switch - Lower

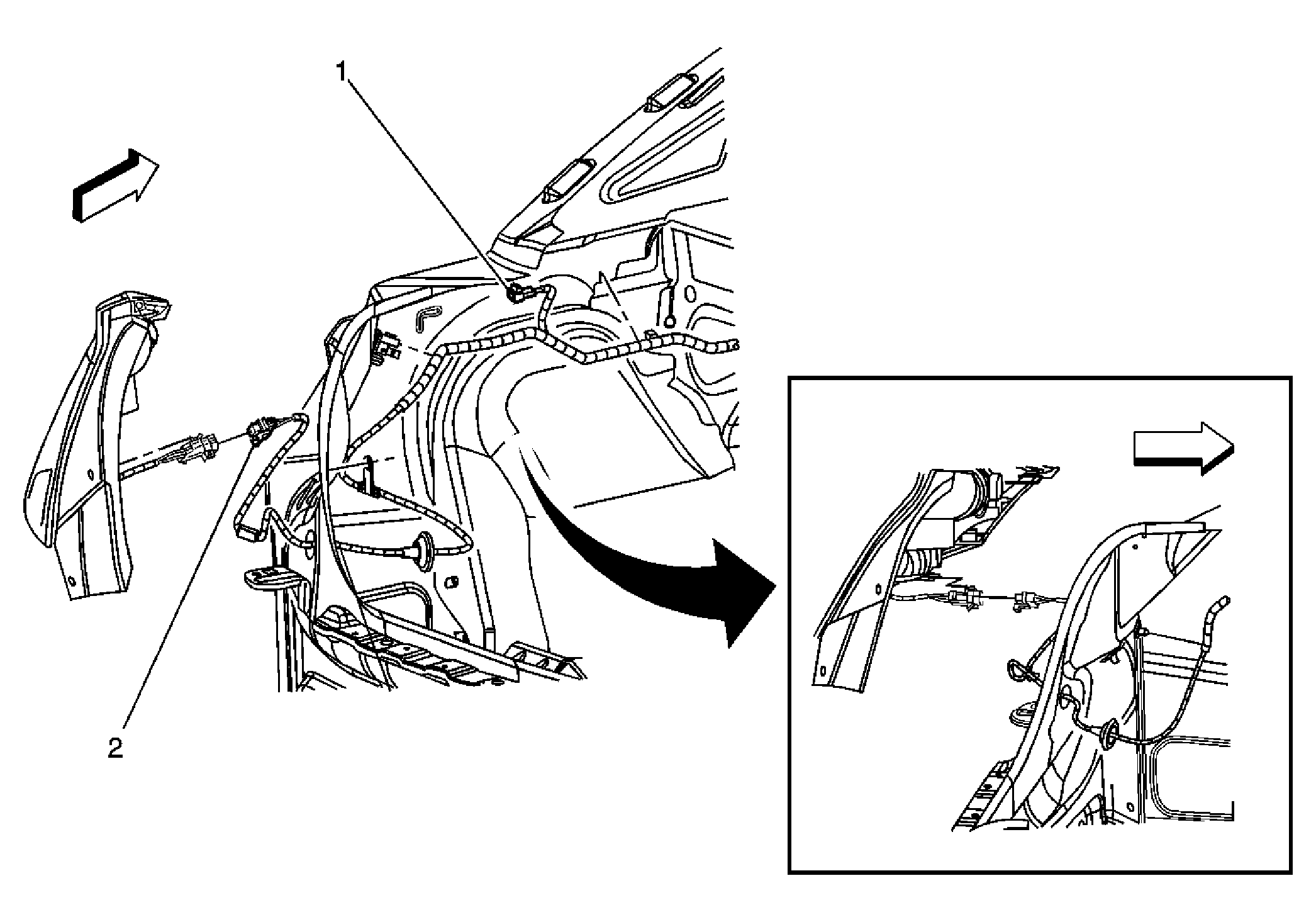

Fig 16: Left Rear Side Of Vehicle Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C401
2	C491, C490 Similar on Right Side

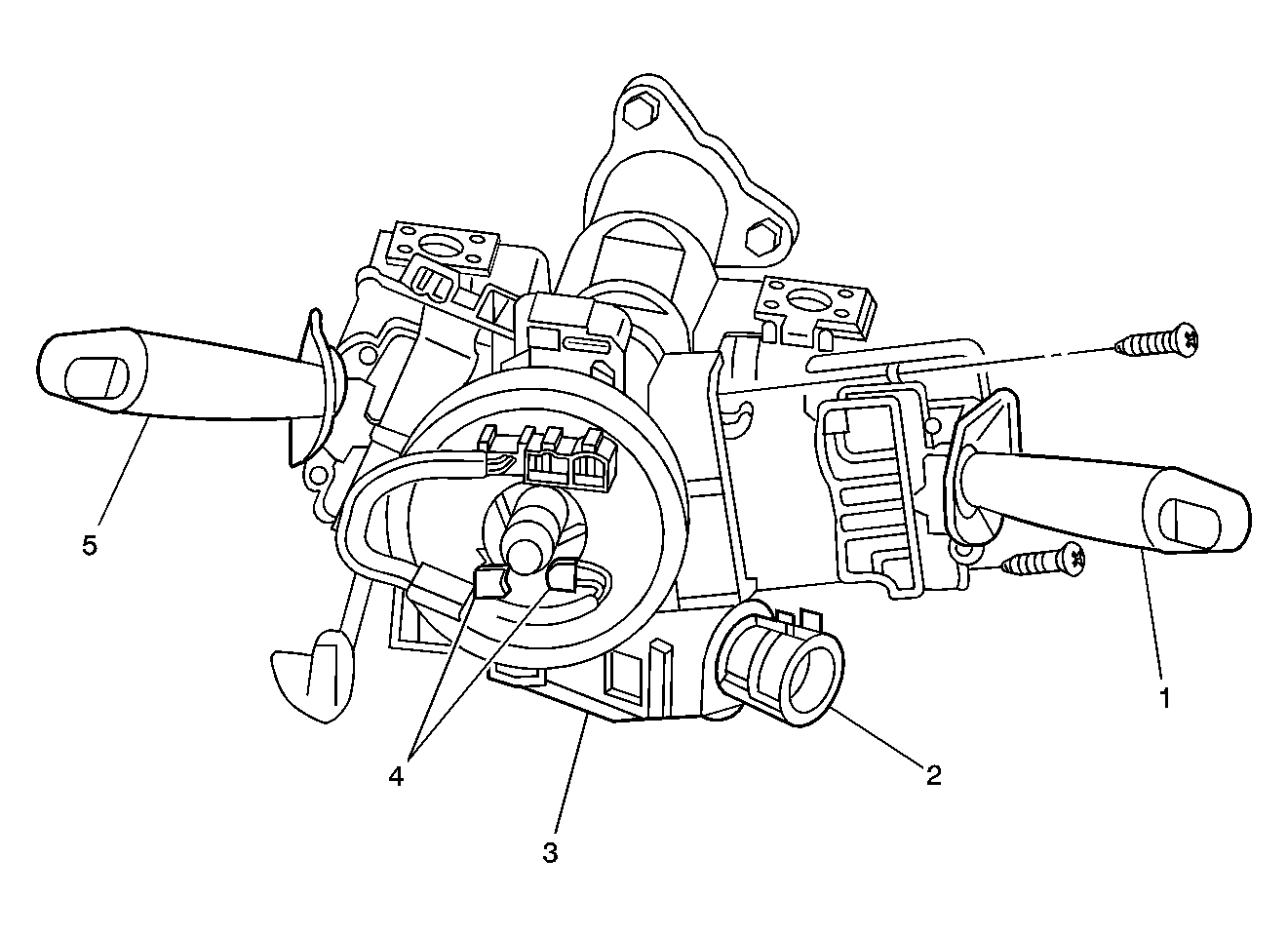

Fig 17: Steering Column Assembly Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper/Washer Switch
2	Ignition Lock Cylinder Control Actuator (M43/M75)
3	Ignition Switch
4	Inflatable Restraint
5	Turn Signal/ Multifuction Switch

Fig 18: Roof/Headliner (C74) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamp
2	Sunroof Switch (CF5)
3	Inside Rearview Mirror (ISRVM)

Fig 19: Vehicle Rear Compartment Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp
