System Diagram

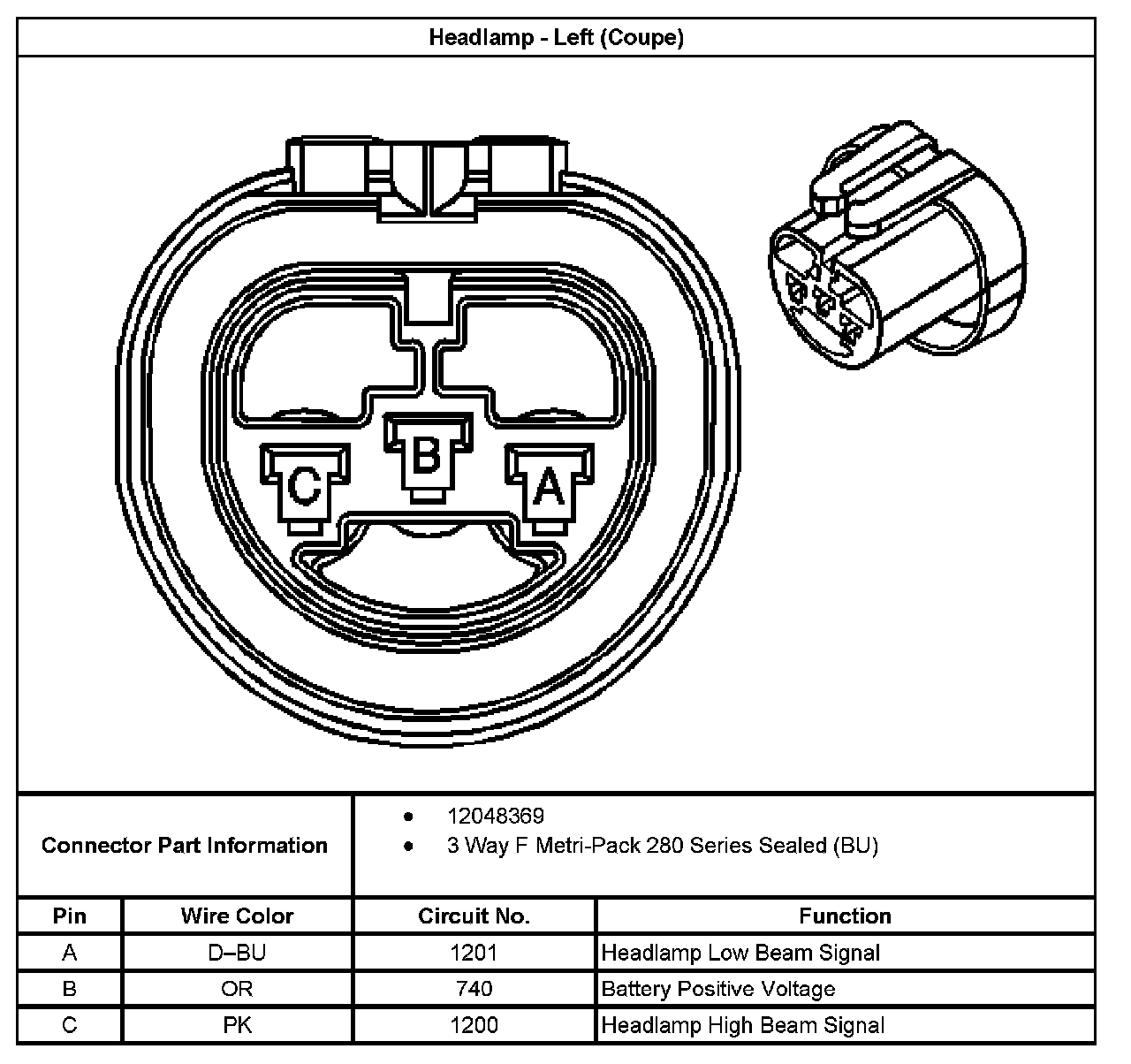

Headlamp - Left (Coupe):
Headlamp - Left (Sedan):
Headlamp - Right (Coupe):

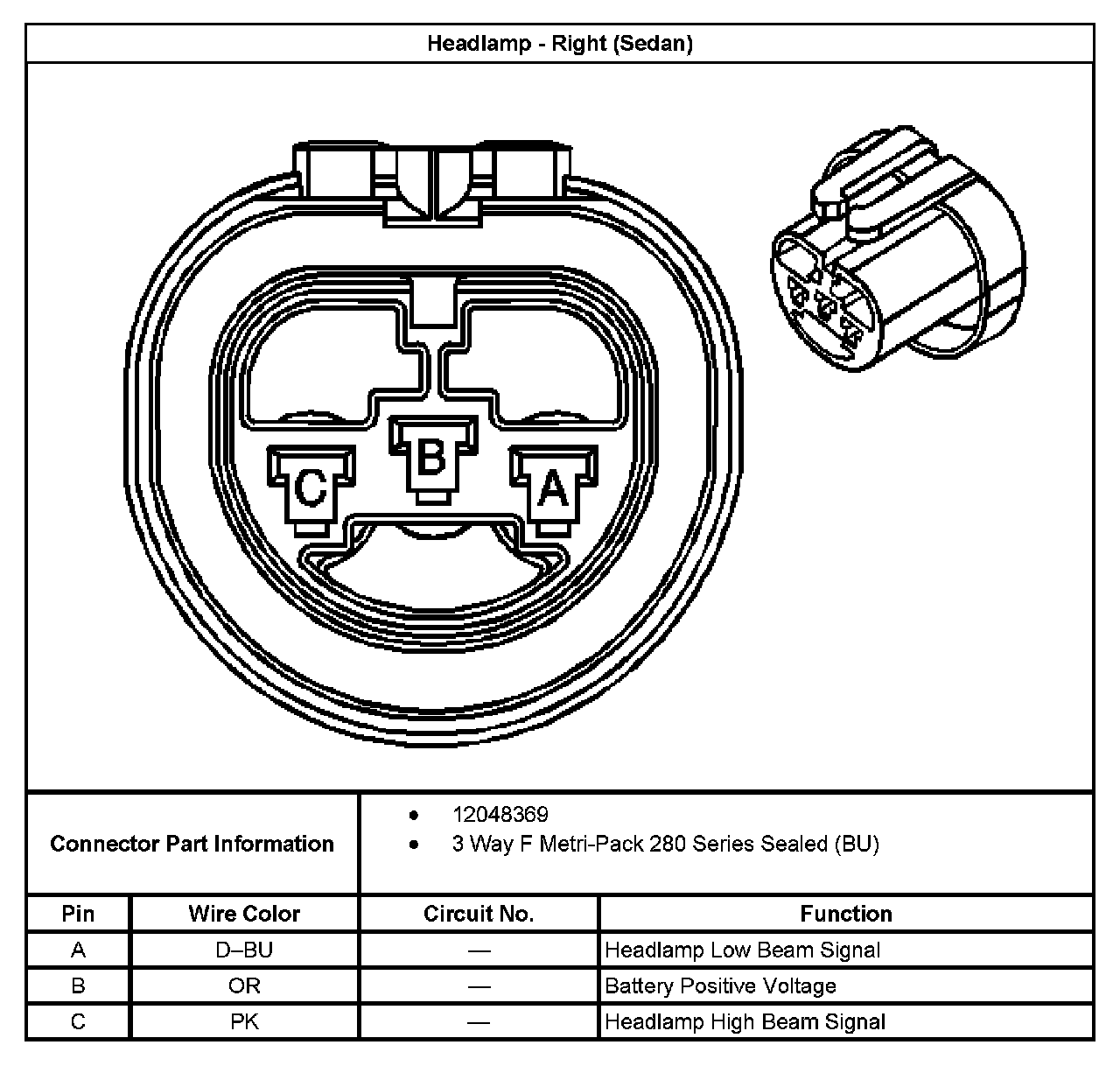

Headlamp - Right (Sedan):
