Radio/Stereo

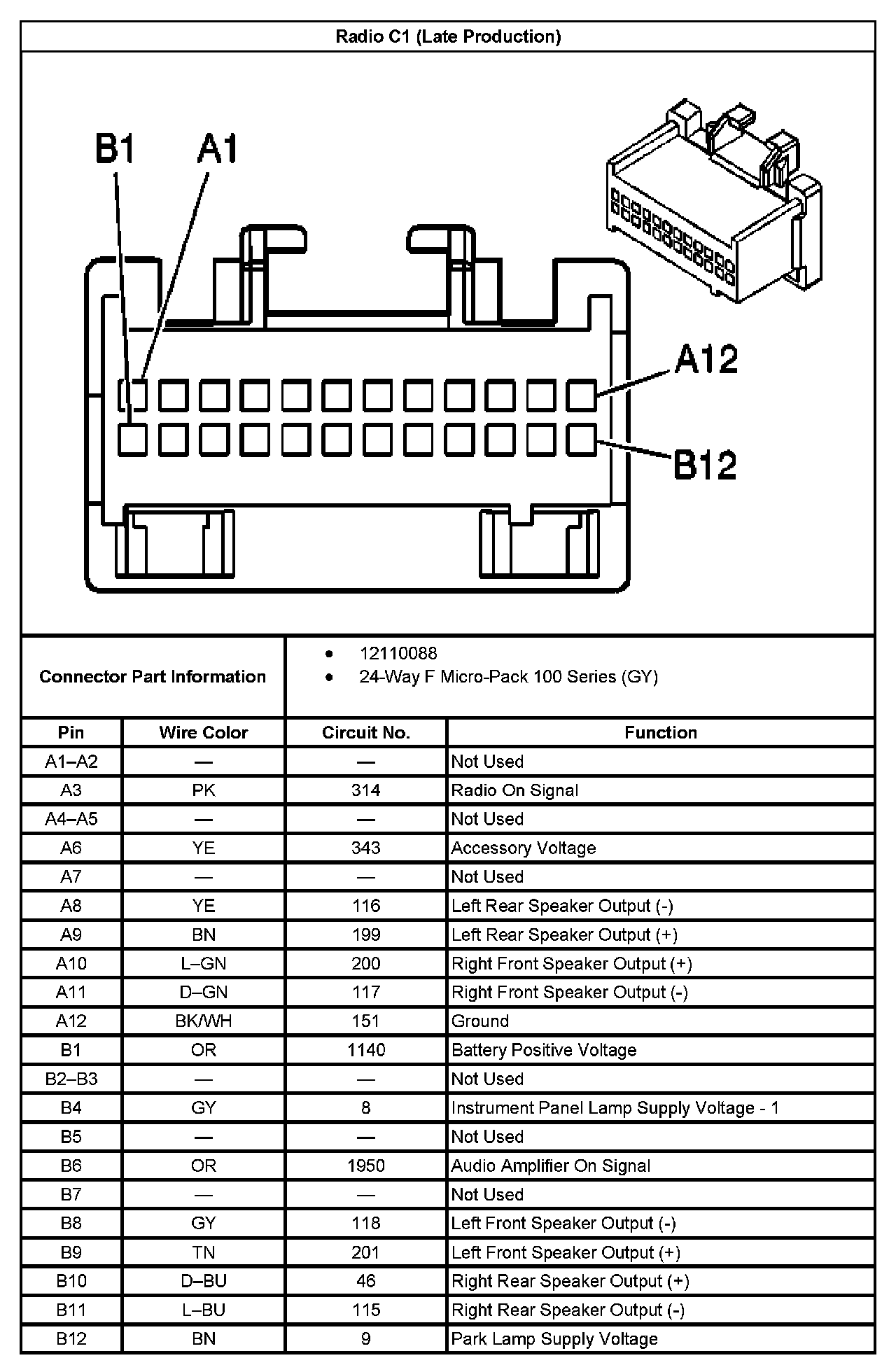

Radio C1 (Late Production):

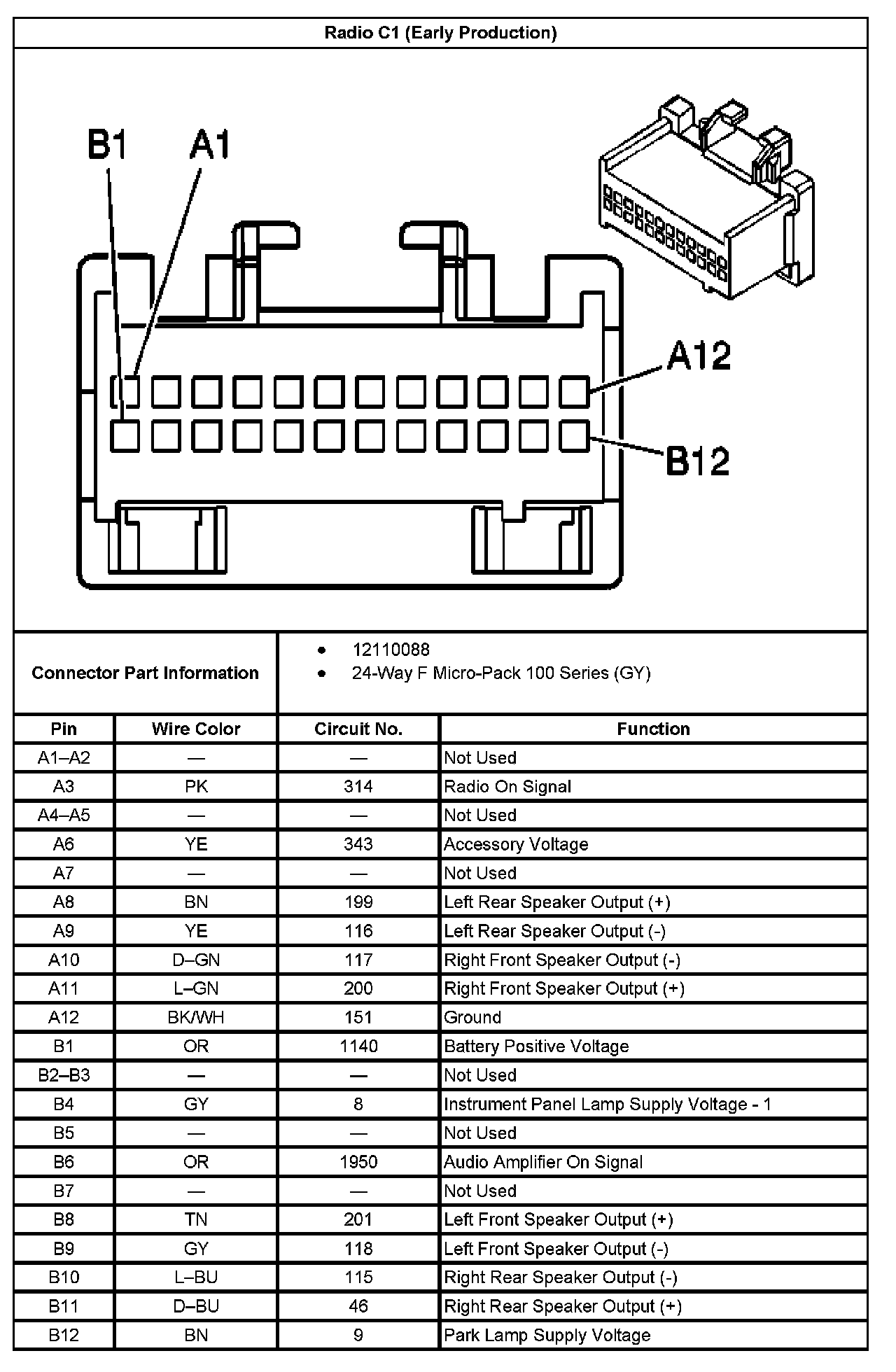

Radio C1 (Early Production):



Radio C2 (With RPO Code UE1):
