Drive Belt: Service and Repair

Drive Belt Replacement

- Tools Required
- J 44811 Accessory Belt Tensioner Unloader

Removal Procedure





1. Remove the front fender liner.

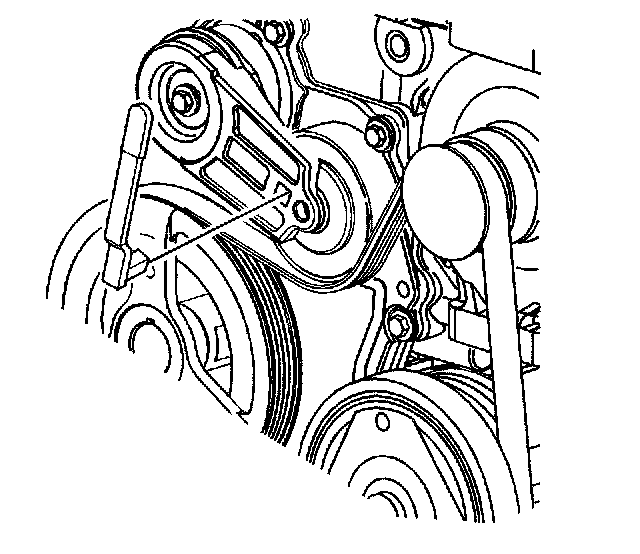

2. Use the J 44811 in order to rotate the drive belt tensioner counter-clockwise to release the spring tension.
3. Remove the drive belt.

Installation Procedure

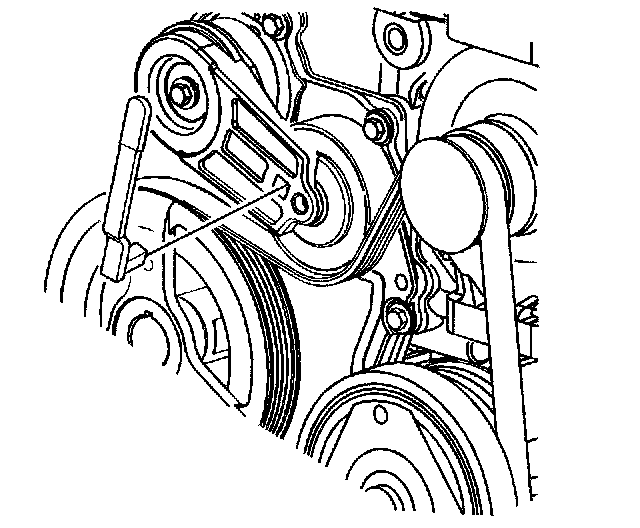

1. Use the J44811 in order to rotate the drive belt tensioner counter-clockwise to release the spring tension.
2. Install the drive belt.
3. Install the front fender liner.
