Output Shaft Speed Sensor Replacement

Output Shaft Speed Sensor Replacement

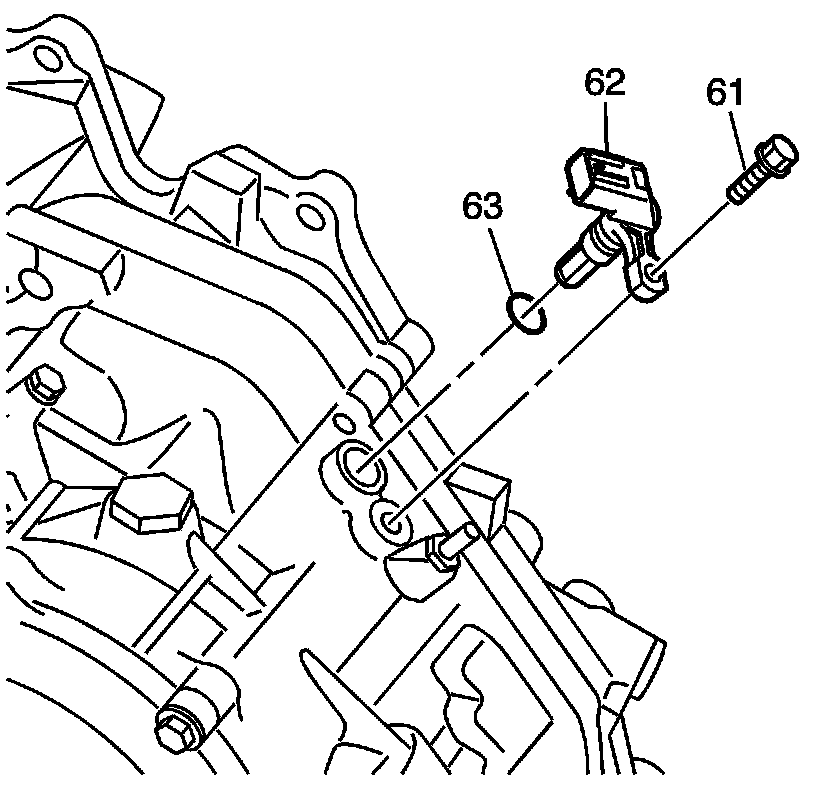

Removal Procedure
1. Disconnect the wiring harness from the output speed sensor.





2. Important: Do not damage the output speed sensor or transaxle case.

Remove the output speed sensor bolt/screw (61).
3. Remove the output shaft speed sensor (62) and the O-ring (63).
4. Inspect the output speed sensor for damage.

Installation Procedure





1. Apply automatic transmission fluid to the new output speed sensor O-ring seal (63).
2. Install the new output speed sensor O-ring seal (63) onto the output speed sensor (62).
3. Install the output speed sensor (62) into the transmission case assembly.

4. Notice: Refer to Fastener Notice in Service Precautions.

Install the output speed sensor bolt (61).
Tighten the output speed sensor bolt to 4.5 Nm (40 inch lbs.).
