Automatic Transmission Electronic Component Views

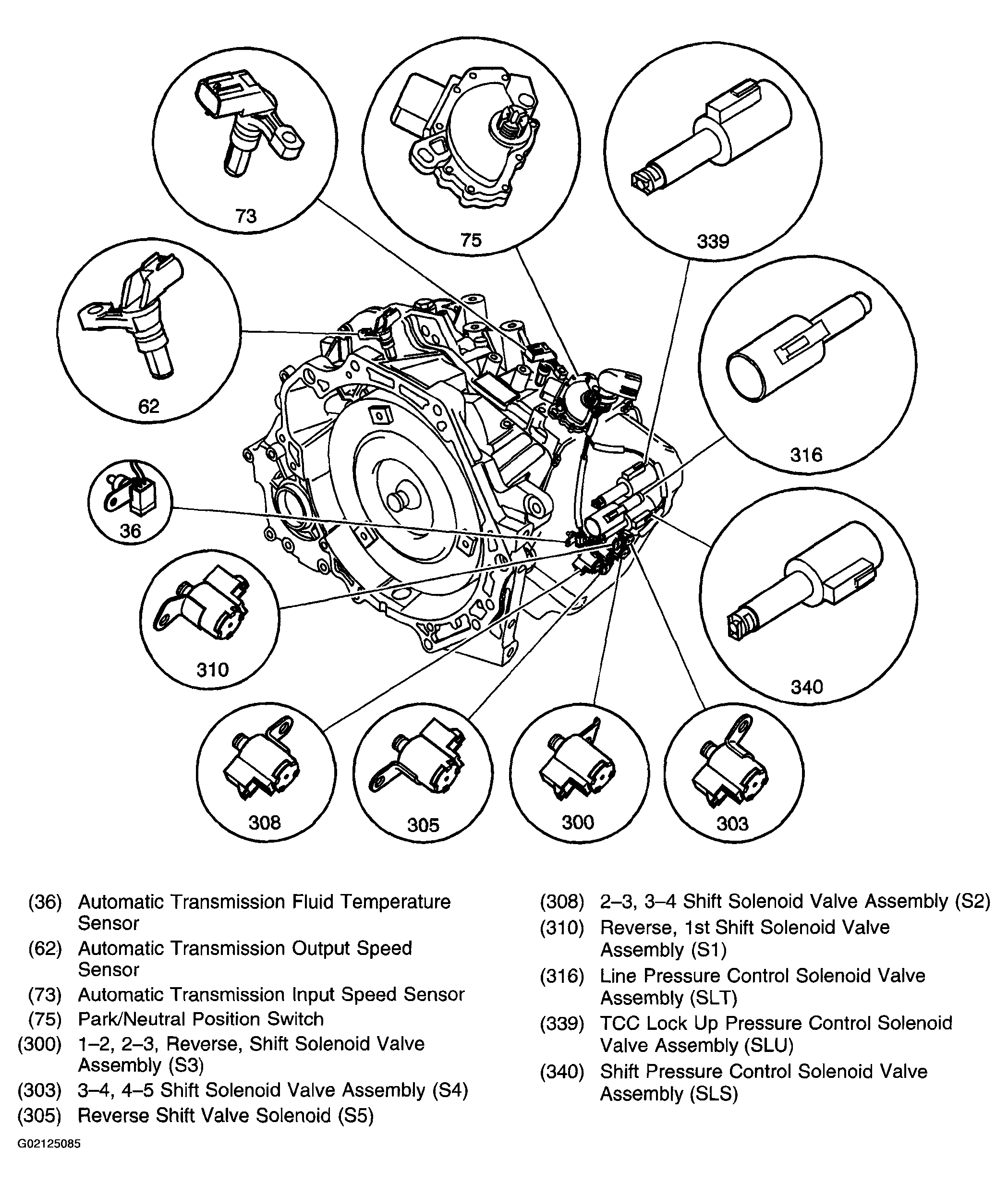

Fig 1: Electronic Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
