Connector End Views

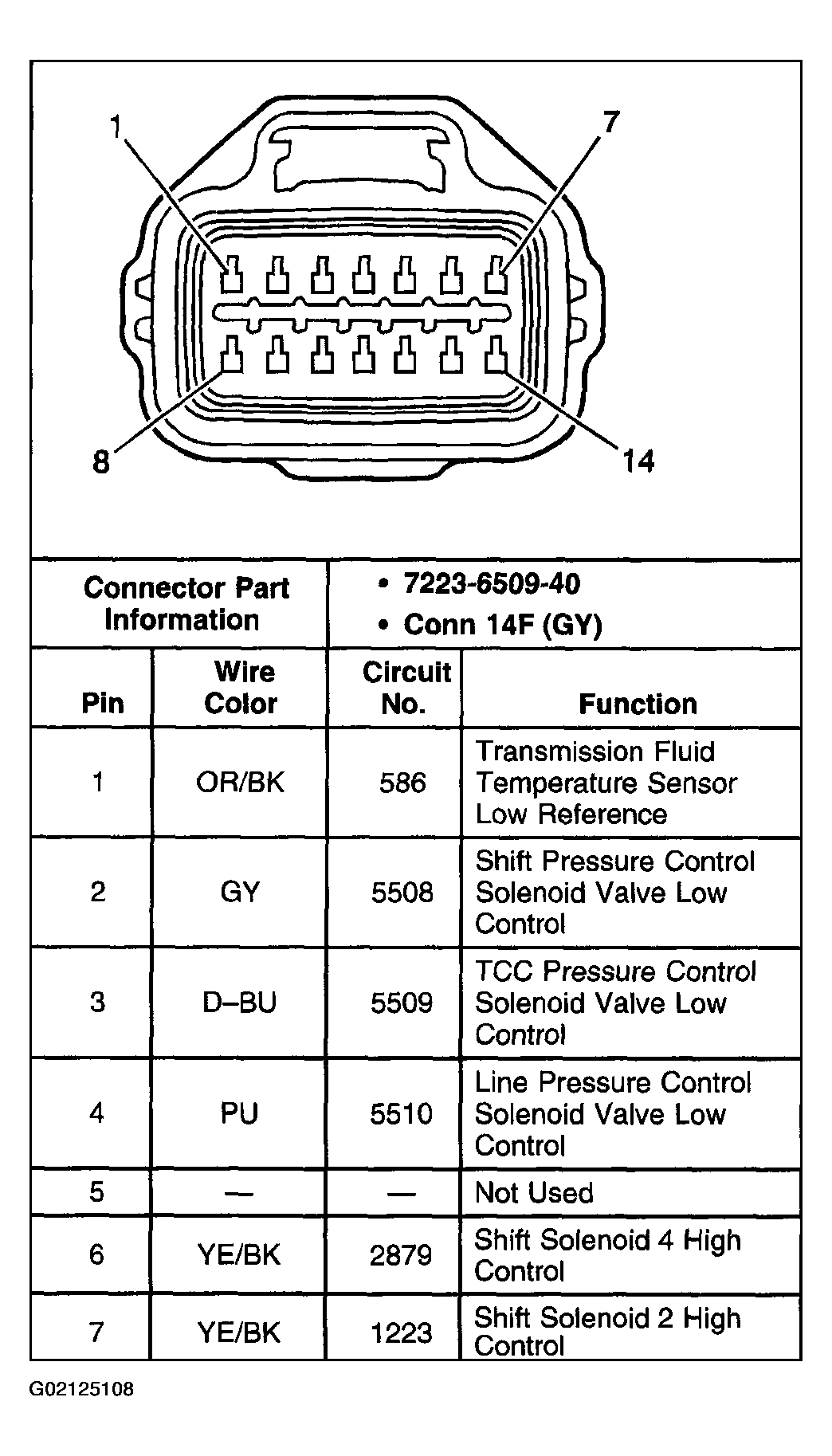

Fig 1: Transmission Inline Connector End View, Wiring Harness Side (1 Of 2)
G02125108Courtesy of GENERAL MOTORS CORP.

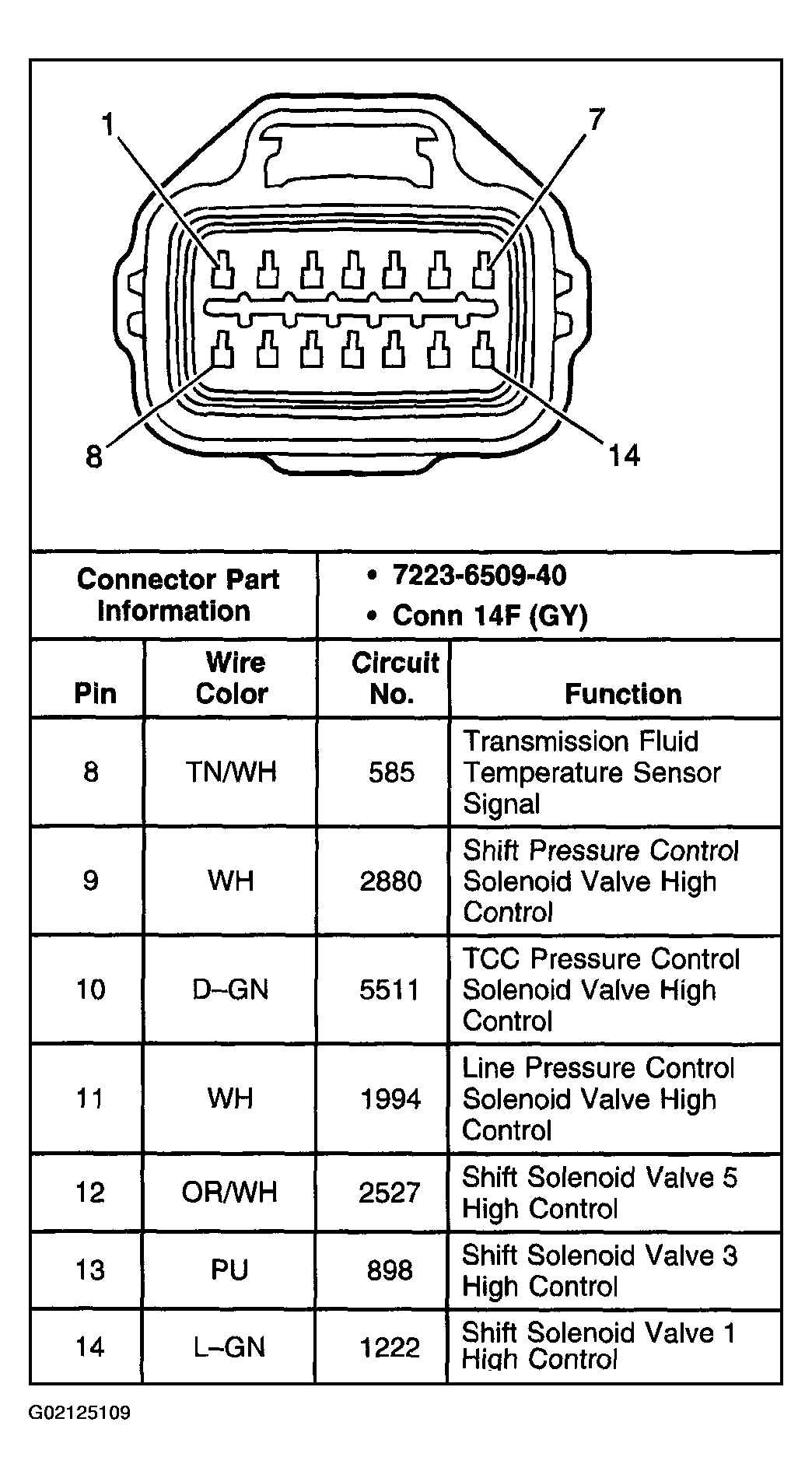

Fig 2: Transmission Inline Connector End View, Wiring Harness Side (2 Of 2)
G02125109Courtesy of GENERAL MOTORS CORP.

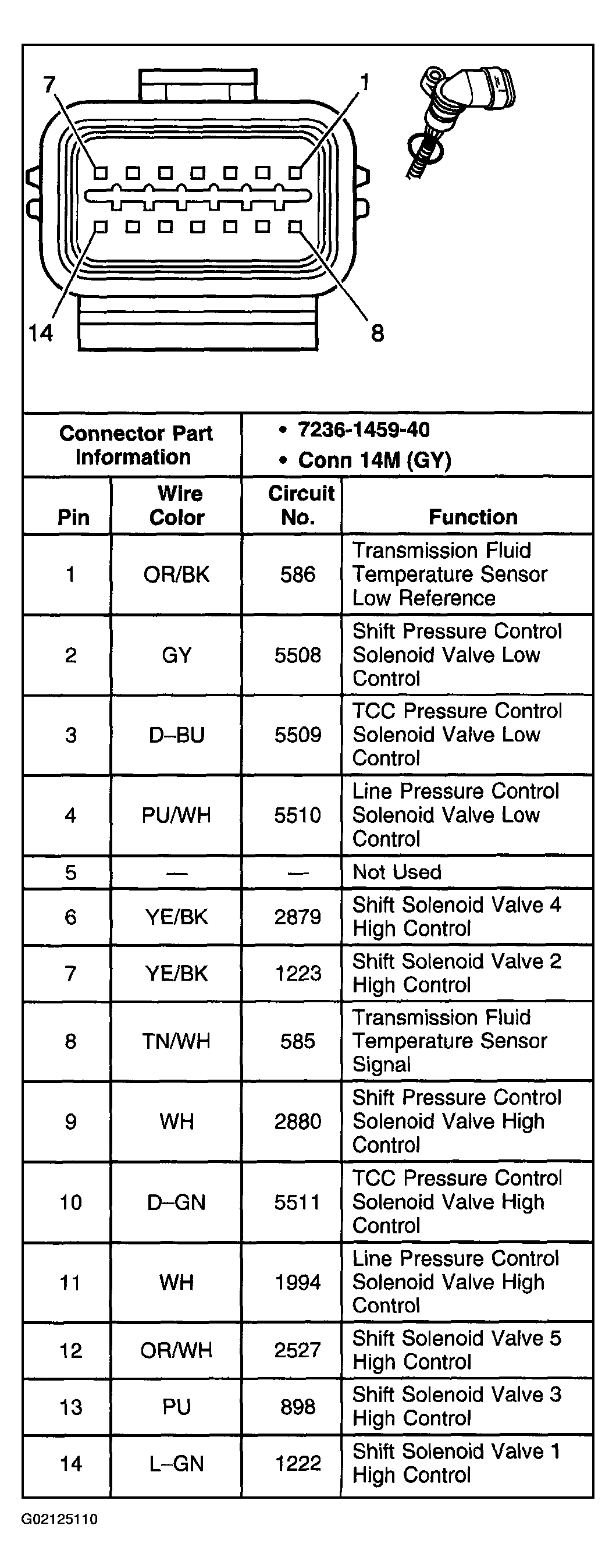

Fig 3: Transmission Inline Connector End View, Transmission Side
G02125110Courtesy of GENERAL MOTORS CORP.
