Control Valve Body Assembly Removal

Important:  Place the transmission in Neutral (N).

1. Remove the 2 control valve body bolts/screws (31), control valve body fluid passage cover (37) and gasket (38).

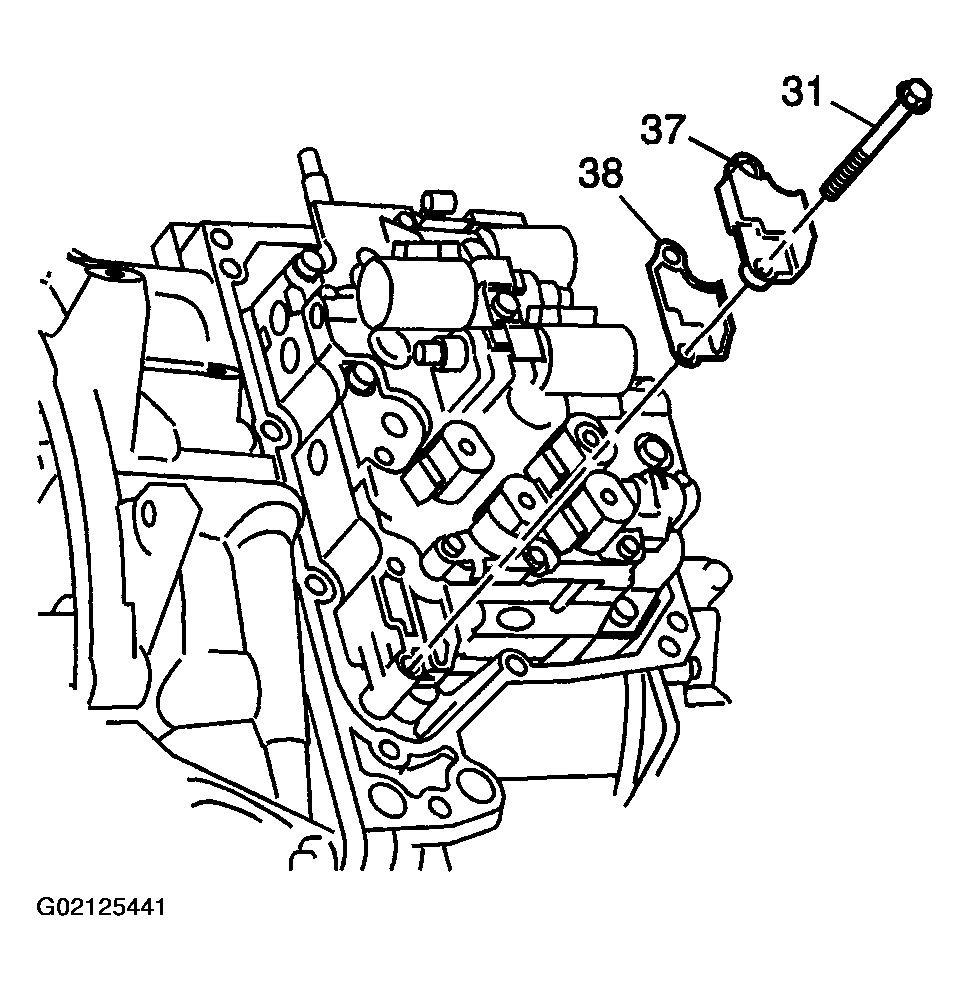

   Fig 1: Removing Control Valve Body Fluid Passage Cover, Bolts & Gasket

   Courtesy of GENERAL MOTORS CORP.
2. Remove the six 10 mm control valve body mounting bolts/screws (1-6).

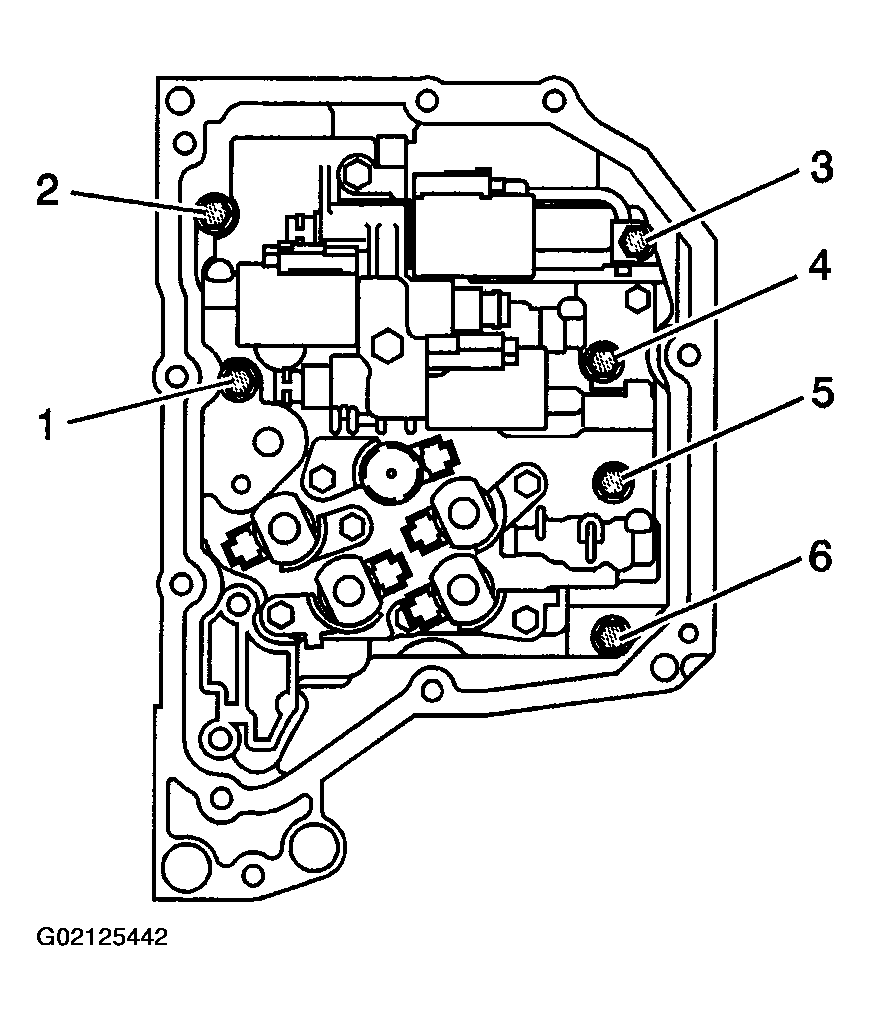

   Fig 2: Removing Control Valve Body Mounting Bolts

   Courtesy of GENERAL MOTORS CORP.
3. While holding the control valve body assembly, disconnect the manual shift detent lever assembly (710) from the manual valve link (336).
4. Move the detent lever assembly clockwise for ease of removing the manual valve.
5. Remove the control valve body assembly (39).

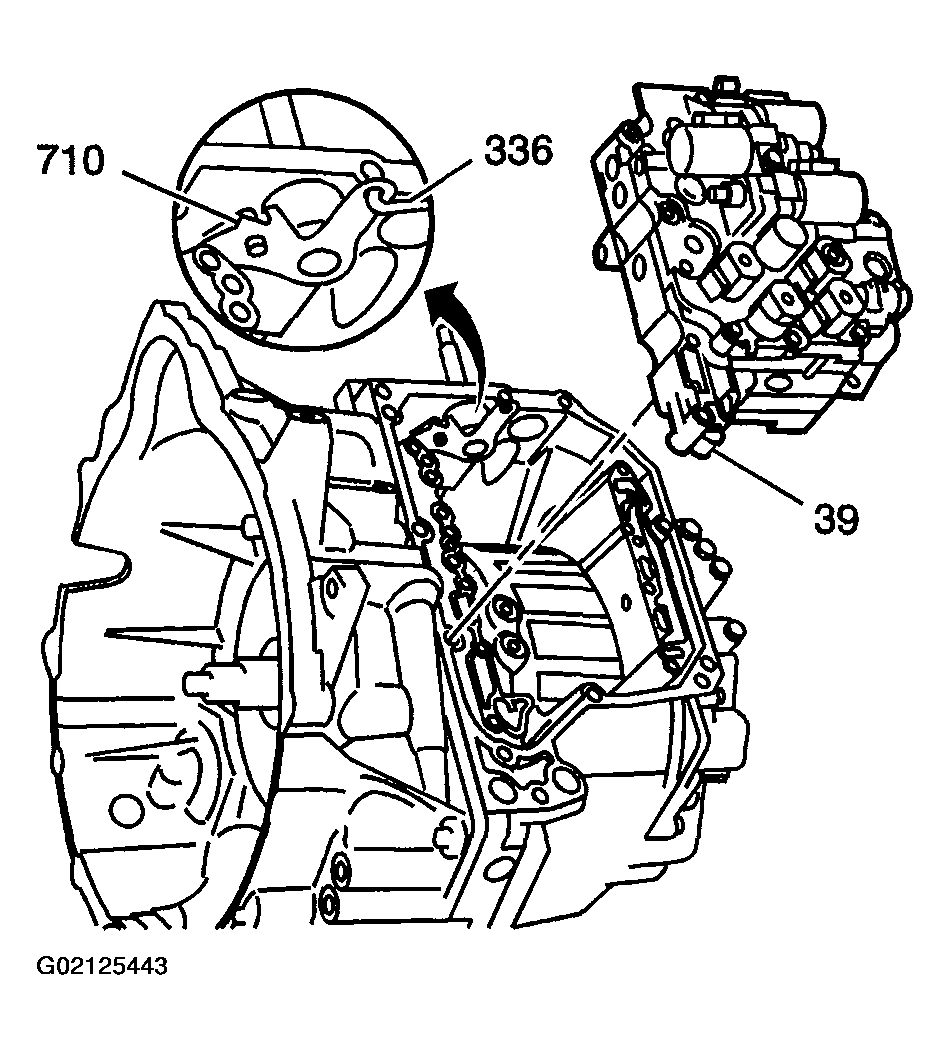

   Fig 3: Disconnecting Manual Shift Detent Lever Assembly & Removing Control Valve Body Assembly

   Courtesy of GENERAL MOTORS CORP.
6. Remove the 2 case fluid passage seals (86).

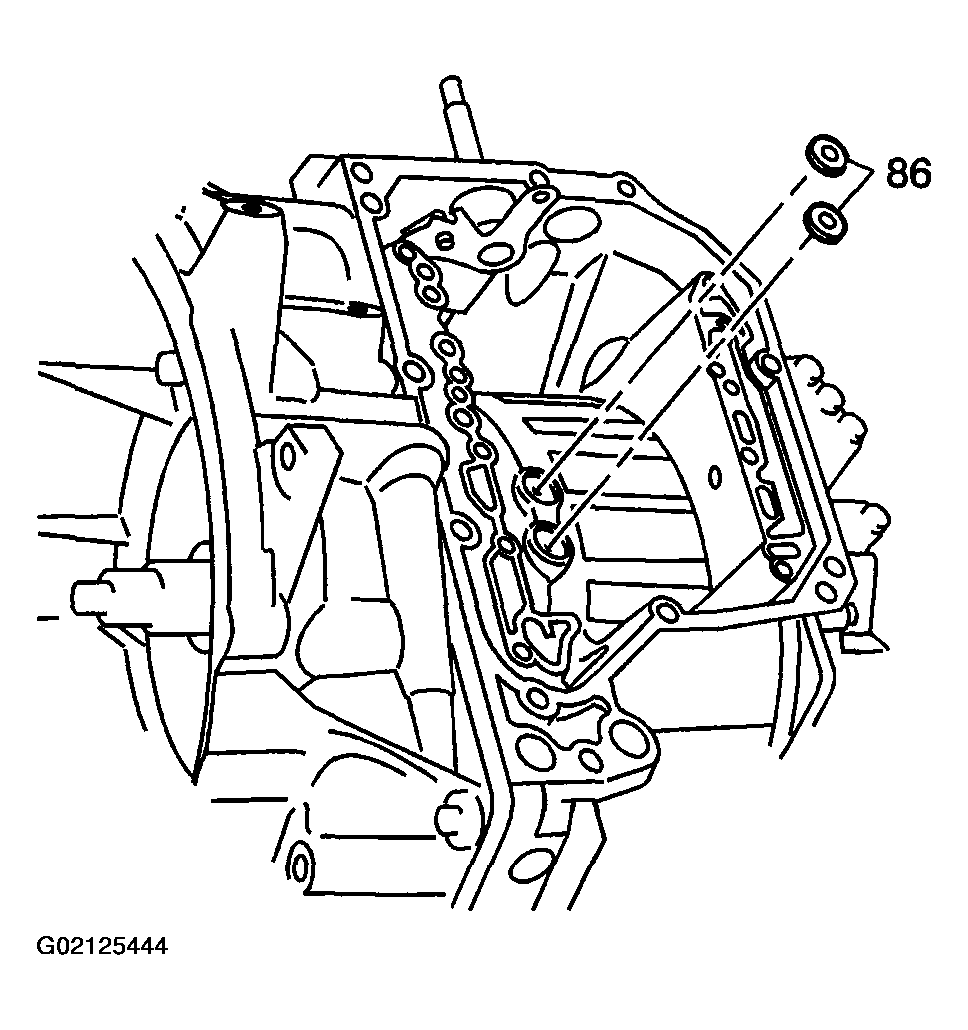

   Fig 4: Removing Case Fluid Passage Seals

   Courtesy of GENERAL MOTORS CORP.
