Front Differential Assembly Installation

Install the front differential assembly (13) into the transmission case assembly.

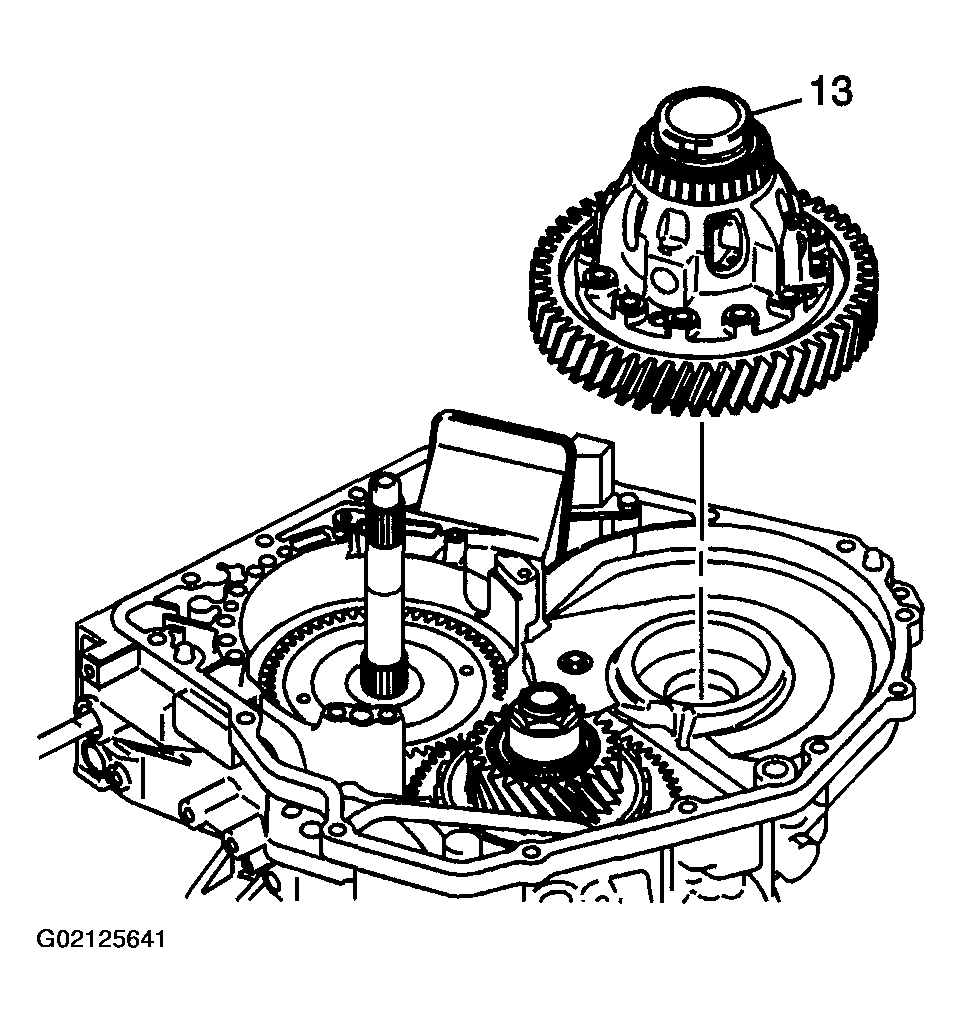

Fig 1: Installing Front Differential Assembly
G02125641Courtesy of GENERAL MOTORS CORP.
