Installation Procedure

  1. Apply automatic transmission fluid to the new input speed sensor O-ring seal (71).
  2. Install the new input speed sensor O-ring seal (71) onto the input speed sensor (73).
  3. Install the input speed sensor (73) into the transmission case assembly (17).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the input speed sensor bolt (72).

    Tighten

    Tighten the input speed sensor bolt (72) to 4.5 N.m (40 lb in).

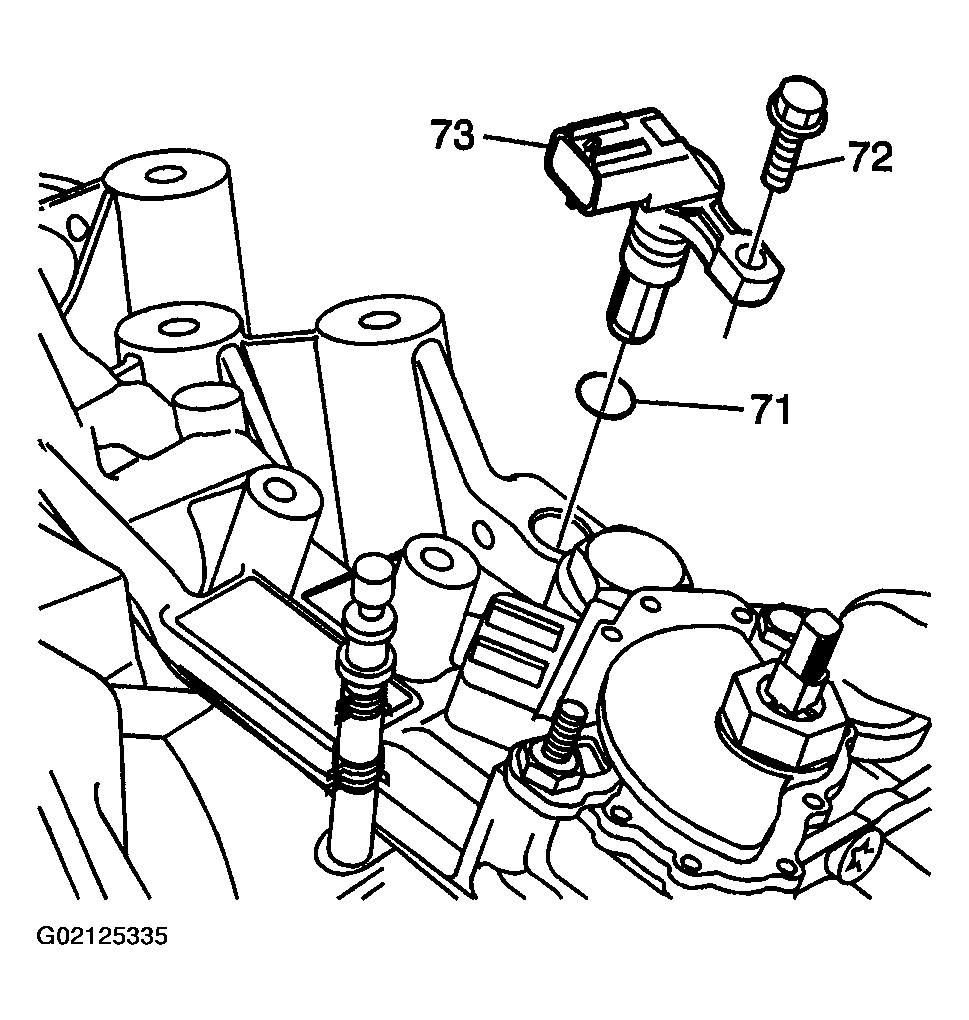

    Fig 1: Installing Input Speed Sensor, Bolt & O-Ring Seal
    G02125335Courtesy of GENERAL MOTORS CORP.
