Removal Procedure

  1. Disconnect the wiring harness from the input speed sensor.

    Important:  Do not damage the input speed sensor or transaxle case.

  2. Remove the input speed sensor bolt/screw (72).
  3. Remove the input speed sensor (73), and the input speed sensor O-ring (71).
  4. Inspect the input speed sensor for damage.

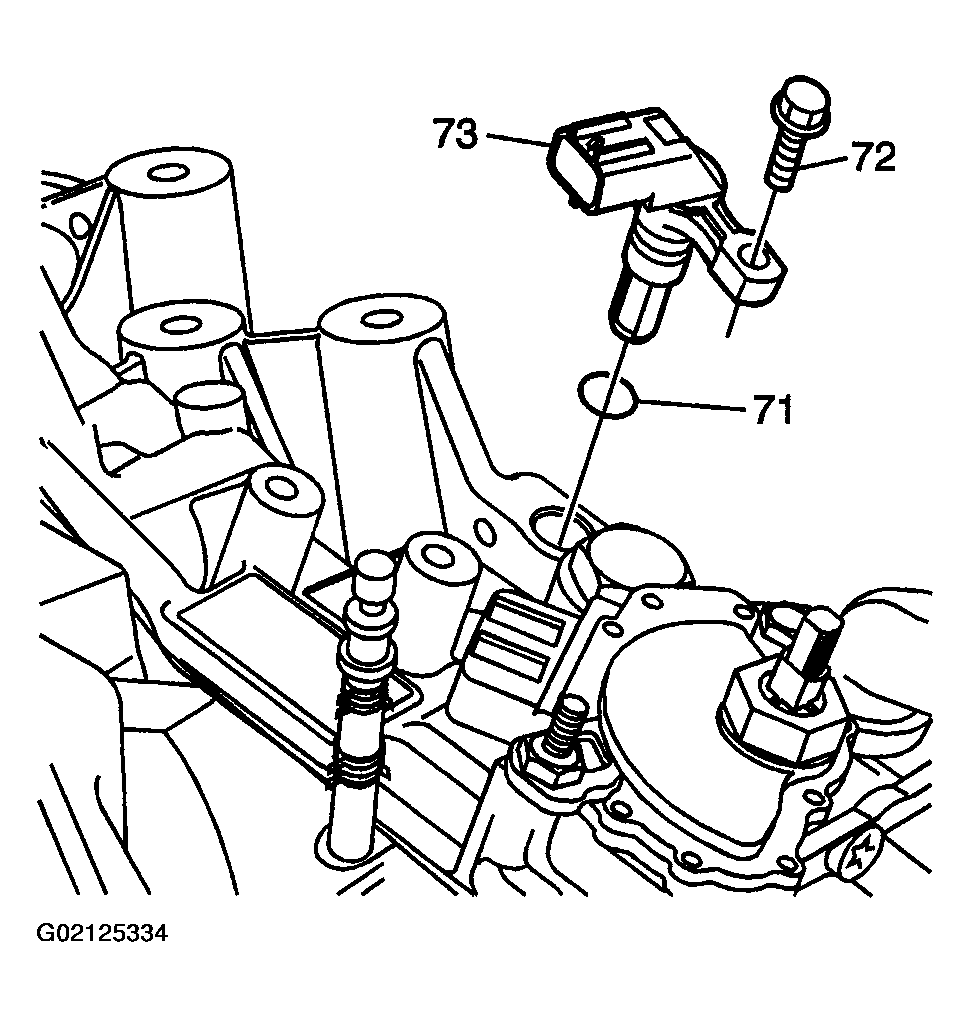

    Fig 1: Removing Input Speed Sensor, Bolt & O-Ring Seal
    G02125334Courtesy of GENERAL MOTORS CORP.
