Installation Procedure

  1. Apply automatic transmission fluid to the new output speed sensor O-ring seal (63).
  2. Install the new output speed sensor O-ring seal (63) onto the output speed sensor (62).
  3. Install the output speed sensor (62) into the transmission case assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the output speed sensor bolt (61).

    Tighten

    Tighten the output speed sensor bolt to 4.5 N.m (40 lb in).

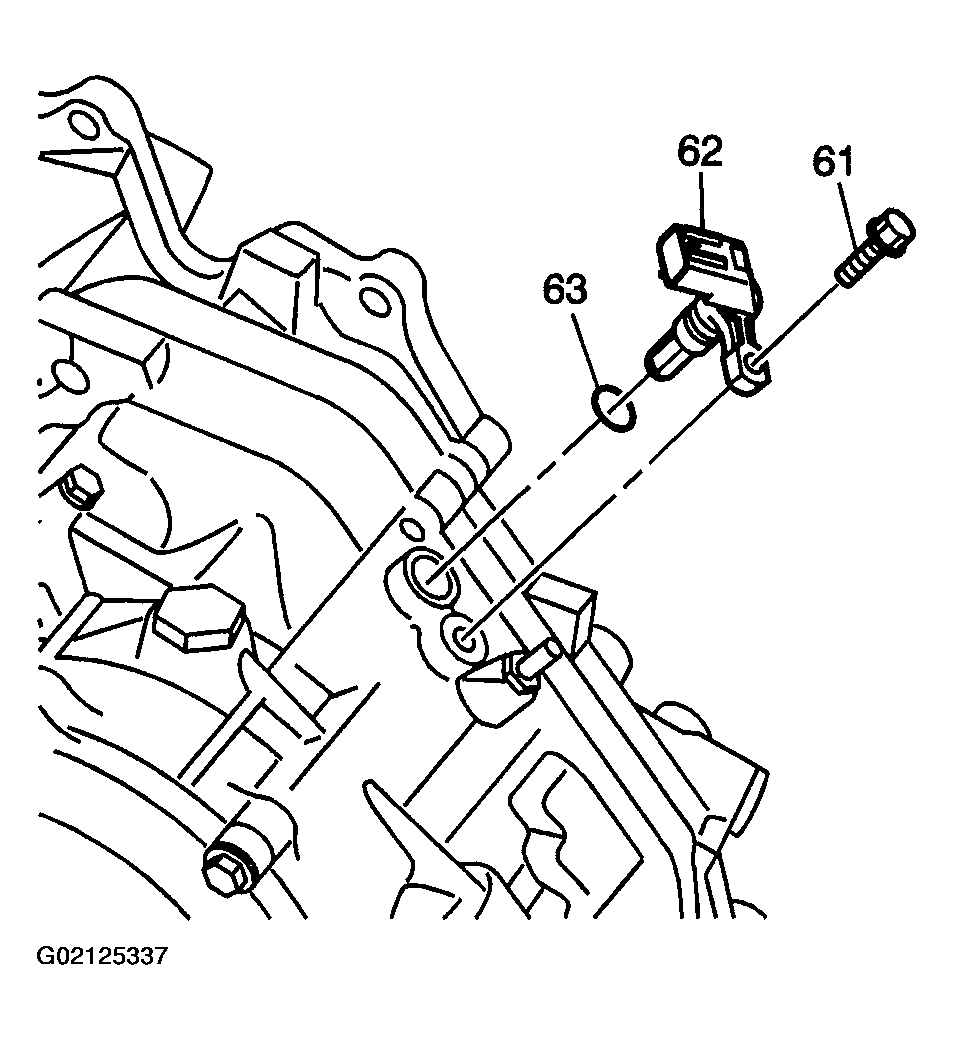

    Fig 1: Installing Output Speed Sensor, Bolt & O-Ring Seal
    G02125337Courtesy of GENERAL MOTORS CORP.
