Torque Converter Assembly Installation

Install the torque converter.

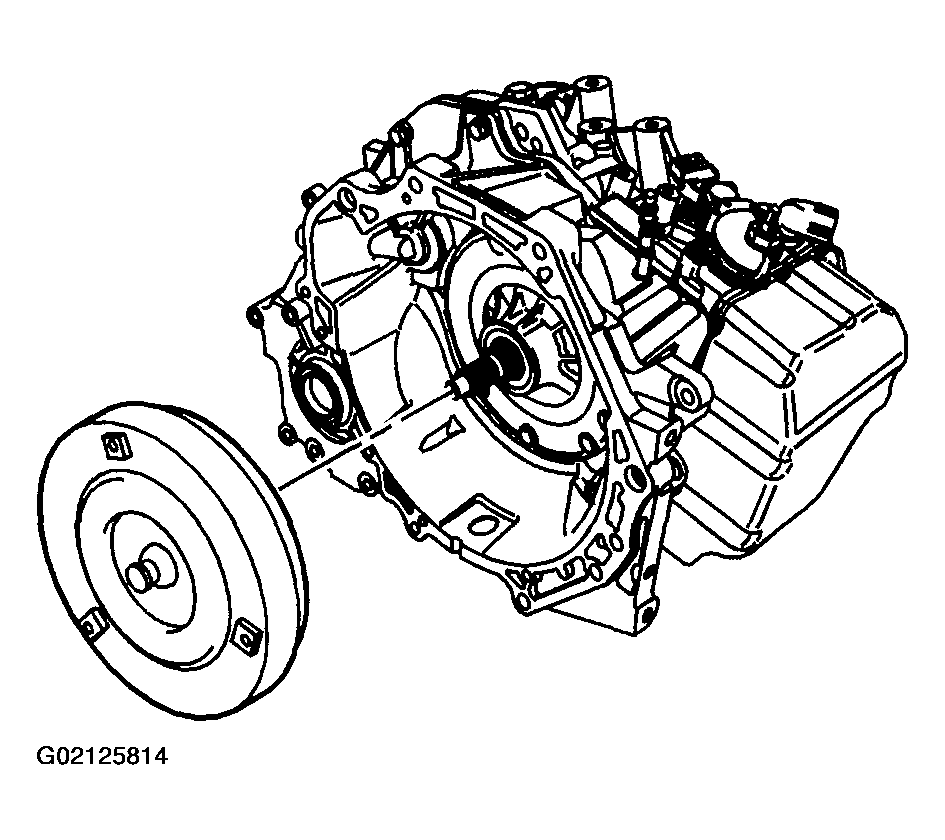

Fig 1: Installing Torque Converter
Courtesy of GENERAL MOTORS CORP.

NOTE: If dimension C is not within specifications, adjust it to within specifications or damage to the transmission may occur.
Measure dimension C.
If dimension C is not within specifications, rotate the torque converter to index it to the pump.
Installation Height

Dimension C should be 12.5 mm (0.492 in).

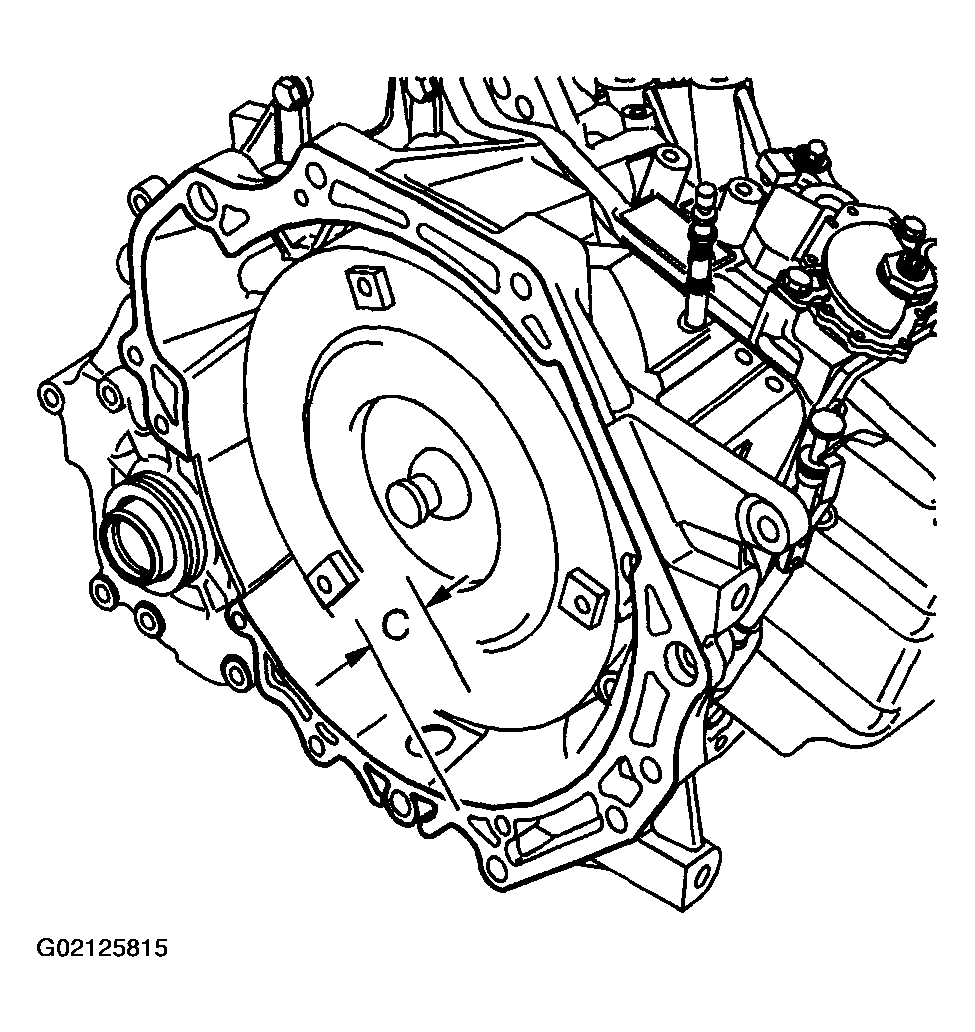

Fig 2: Measuring Dimension C
Courtesy of GENERAL MOTORS CORP.
