Line Pressure

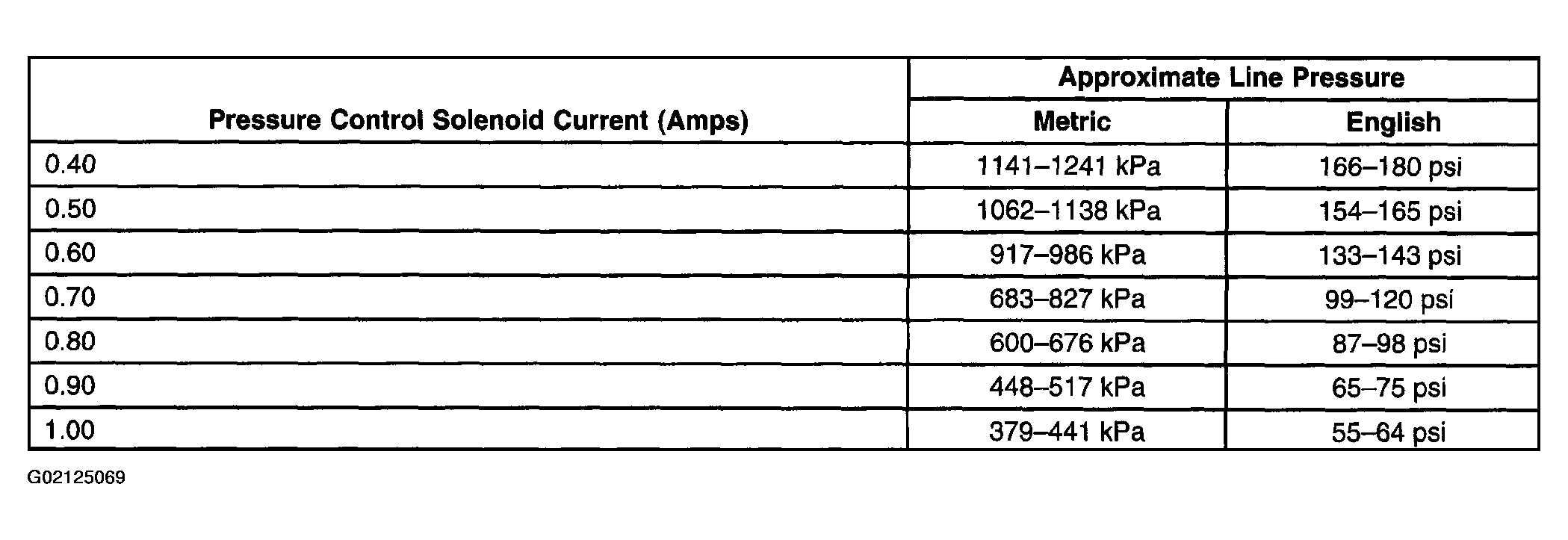

Fig 1: Line Pressure - Transmission In Park (P)
G02125069Courtesy of GENERAL MOTORS CORP.
Fig 2: Line Pressure - Transmission In Reverse (R)
G02125070Courtesy of GENERAL MOTORS CORP.
Fig 3: Line Pressure - Transmission In Drive (D)
G02125071Courtesy of GENERAL MOTORS CORP.
