Shim Size Specifications

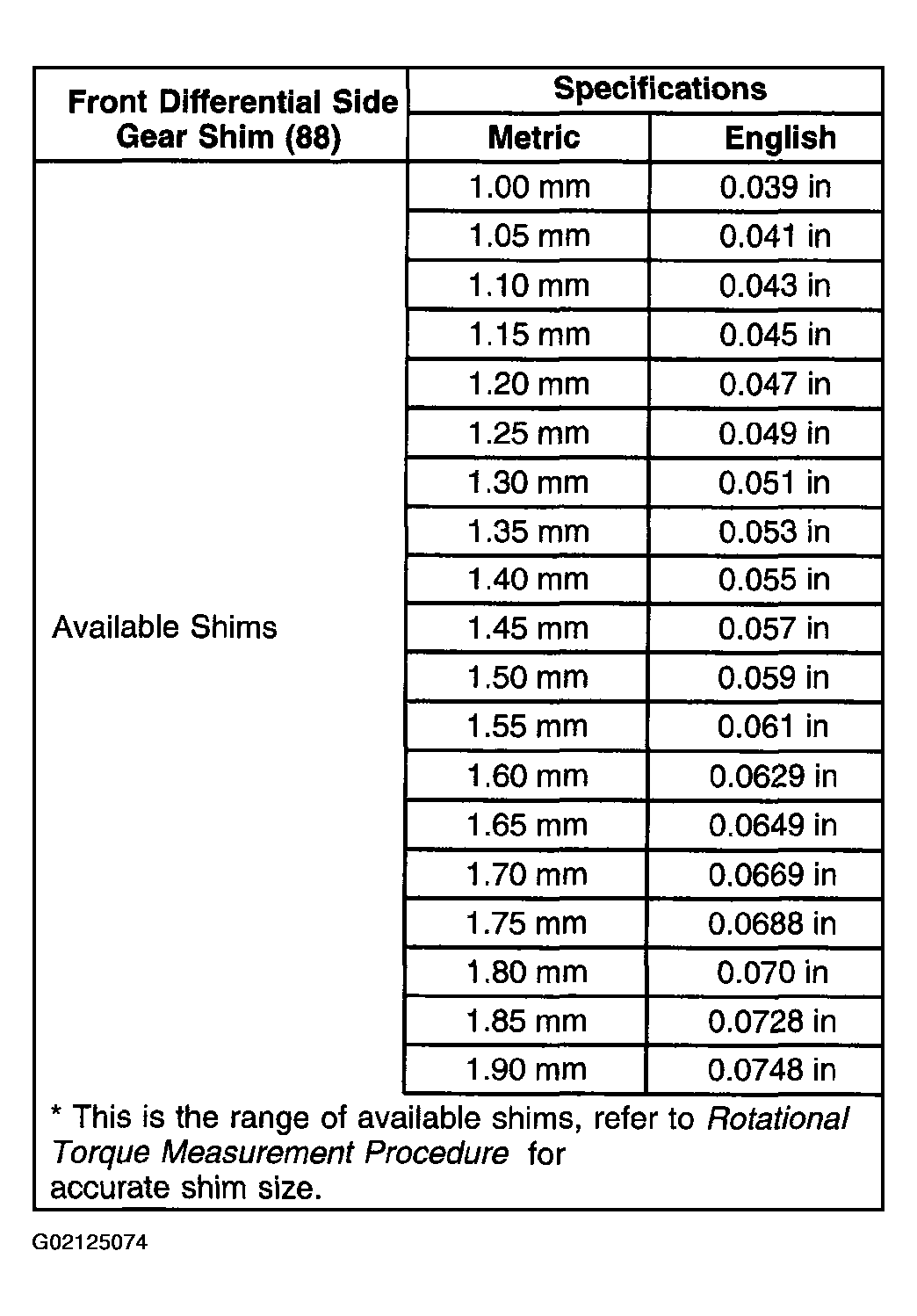

Fig 1: Shim Size Specifications
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
