Transmission Clearance Specifications

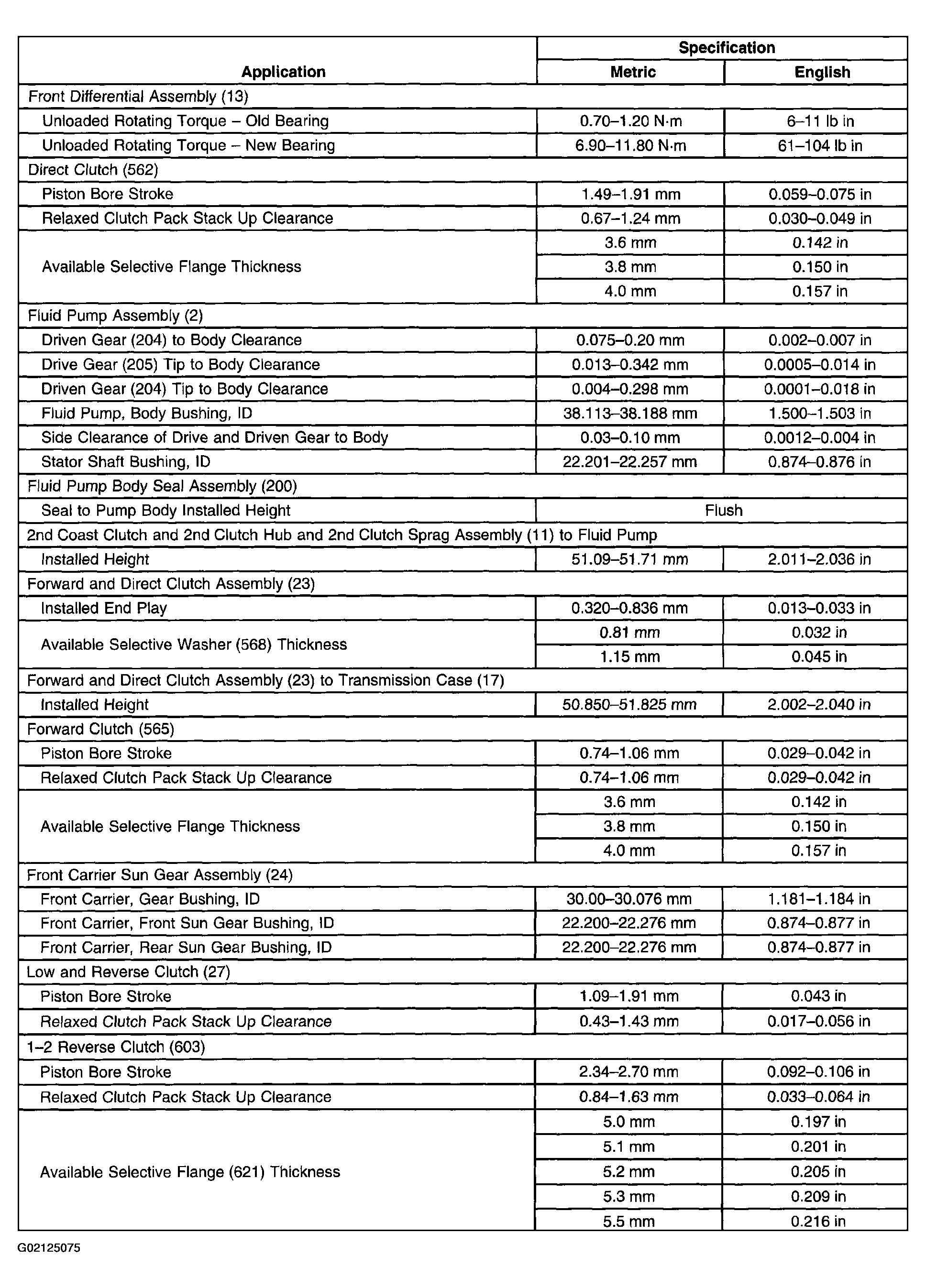

Fig 1: Transmission Clearance Specifications (1 Of 2)
G02125075Courtesy of GENERAL MOTORS CORP.

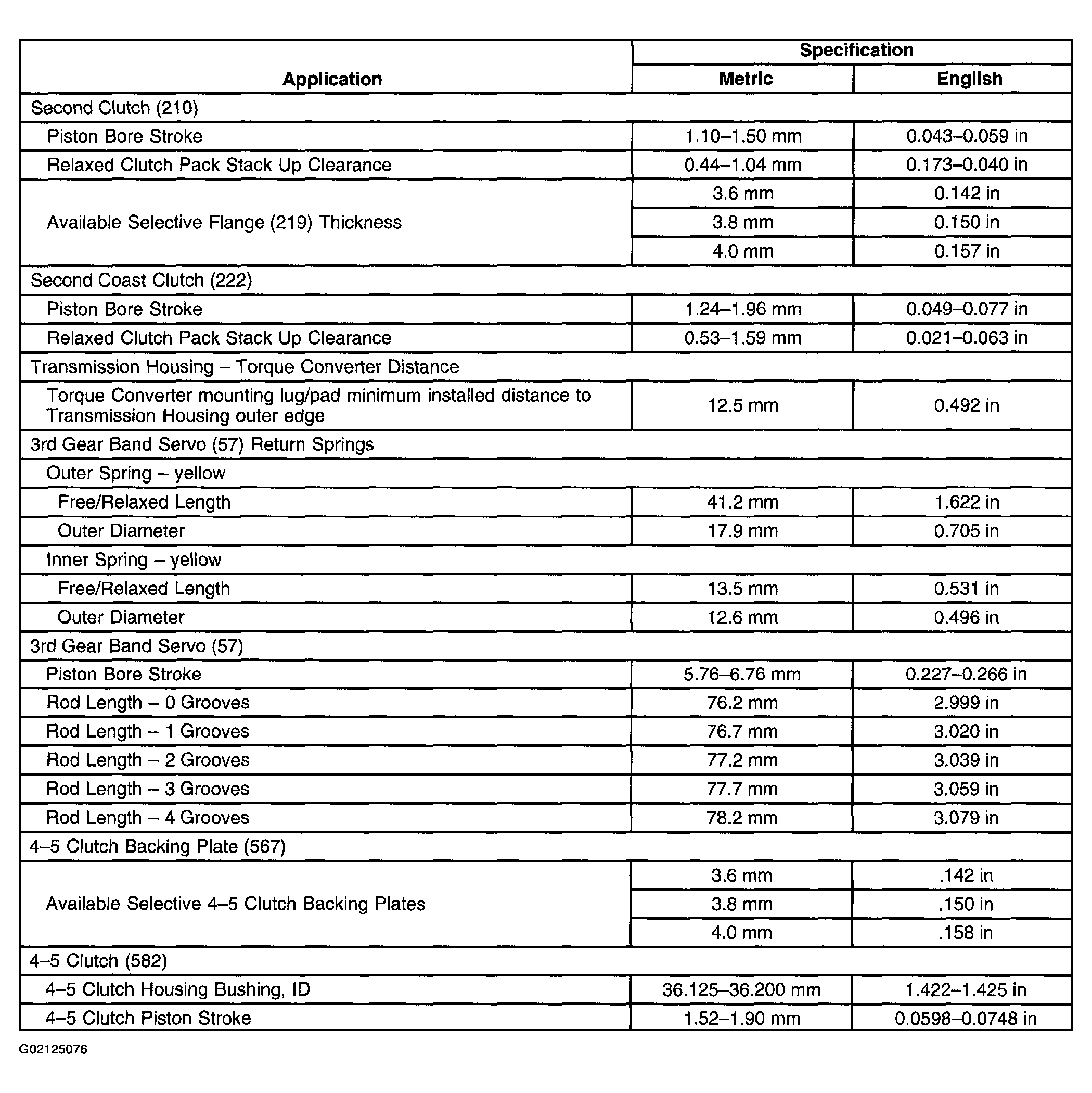

Fig 2: Transmission Clearance Specifications (2 Of 2)
G02125076Courtesy of GENERAL MOTORS CORP.
