Transmission Fluid Temperature (TFT) Sensor Specifications

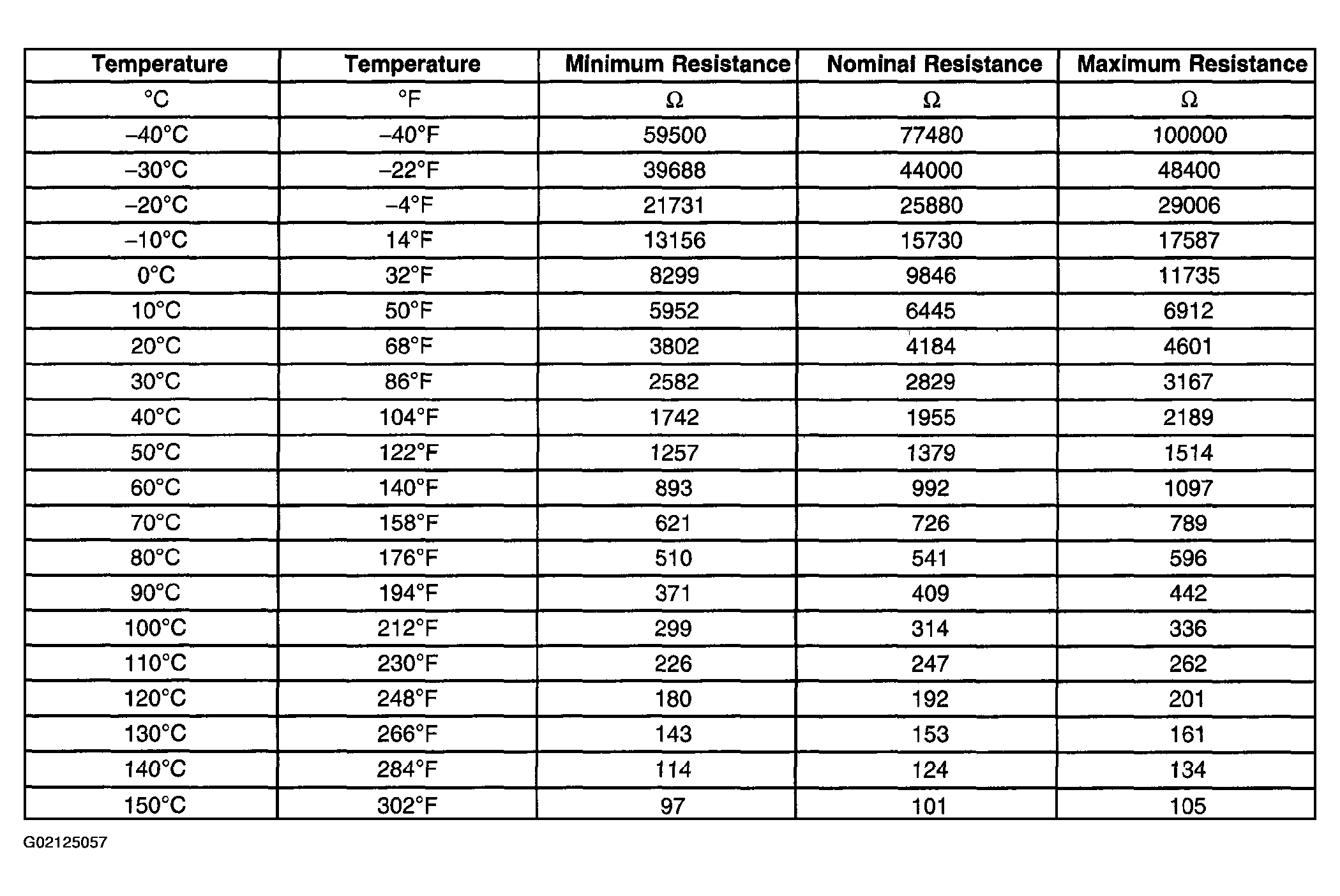

Fig 1: Transmission Fluid Temperature (TFT) Sensor Specifications
G02125057Courtesy of GENERAL MOTORS CORP.
