Transmission Range Switch Logic

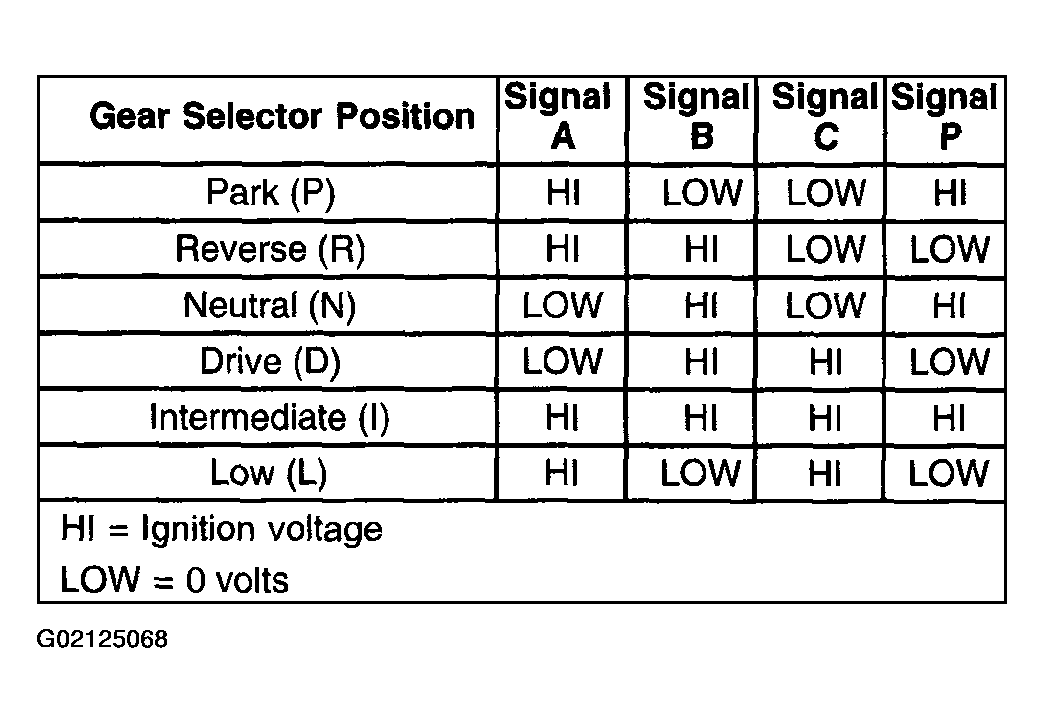

Fig 1: Transmission Range Switch Logic
Courtesy of GENERAL MOTORS CORP.
