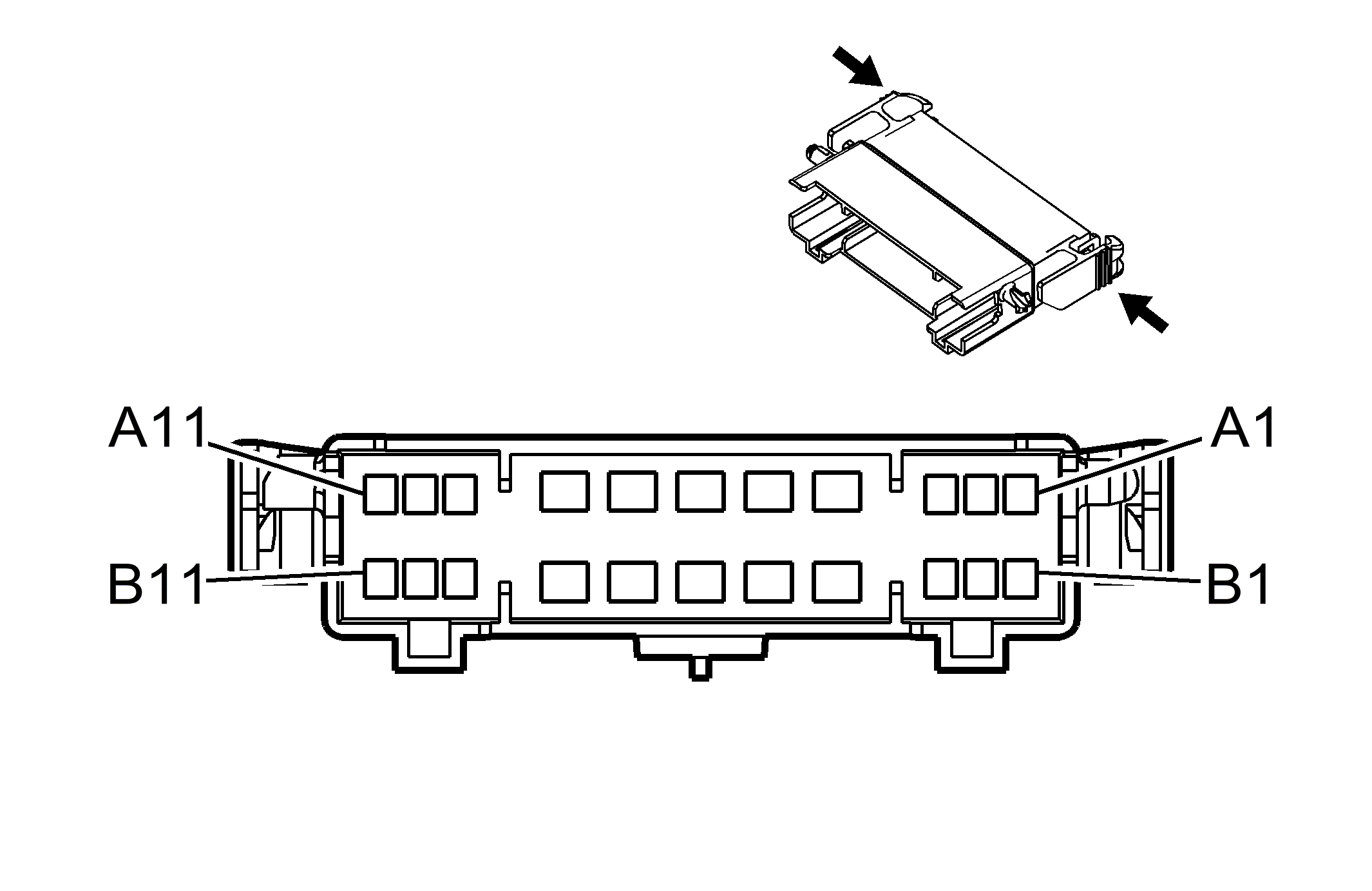

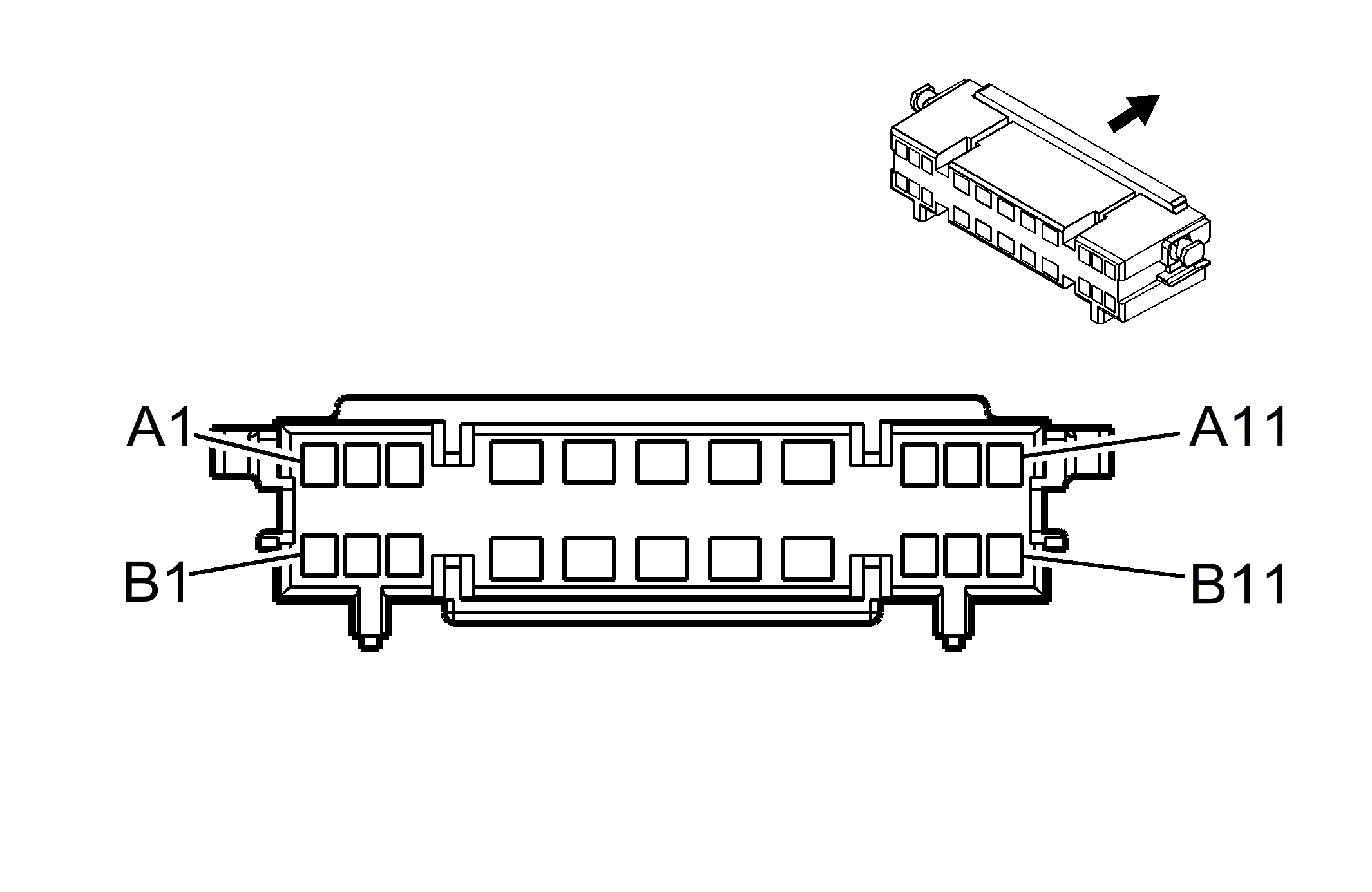

C201 Connector End View

C201

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15317325 22-Way F GT 150 280 (L-GY)		Connector Part Information		15317322 22-Way M GT 150 280 (L-GY)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A1	VT	420	Stop Lamp Switch Signal	A1	VT	420	Stop Lamp Switch Signal
A2	-	-	Not Used	A2	-	-	Not Used
A3	BK/WH	56	Supply Voltage	A3	BK/WH	56	Valet Switch Release Actuator
A4	TN/WH	2500	High Speed GM LAN Serial Data Bus (+)	A4	TN/WH	2500	High Speed GM LAN Serial Data Bus (+)
A5	TN	2501	High Speed GM LAN Serial Data Bus (-)	A5	TN	2501	High Speed GM LAN Serial Data Bus (-)
A6	-	-	Not Used	A6	-	-	Not Used
A7	BK/WH	2118	Seat Belt Pretensioner - Left - High Control	A7	BK/WH	2118	Seat Belt Pretensioner - Left - Front
A8	OR/BK	2119	Seat Belt Pretensioner - Left - Low Control	A8	OR/BK	2119	Seat Belt Pretensioner - Left - Front
A9	-	-	Not Used	A9	-	-	Not Used
A10	L-BU	1957	Left Front Speaker Output (+)	A10	L-BU	1957	Left Front Door Tweeter Speaker (-)
A11	D-BU	1857	Left Front Midrange Speaker Output (-)	A11	D-BU	1857	Left Front Door Speaker (+)
B1	-	-	Not Used	B1	-	-	Not Used
B2	L-GN	1715	Windshield Wiper Switch High Signal	B2	L-GN	1715	Windshield Wiper Switch High Signal Power Voltage
B3	YE	575	Starter Control	B3	YE	575	Starter Control
B4	BN/WH	419	Malfunction Indicator Lamp (MIL) Control	B4	BN/WH	419	MIL Control
B5	L-BU	1888	Cruise Control Servo Clutch Control	B5	L-BU	1888	Cruise Control Servo Clutch Control
B6	L-GN	1887	Cruise Control Servo Move Direction Signal	B6	L-GN	1887	Cruise Control Servo Move Direction Signal
B7	PK	1886	Cruise Control Servo Move Signal	B7	PK	1886	Cruise Control Servo Move Signal
B8	GY	1884	Cruise Control Set/Coast and Resume/Accelerate Switch Signal	B8	GY	1884	Cruise Control Set/Coast and Resume/Accelerate Switch Signal
B9	WH	2132	Side Impact Sensing Module - Left - Signal	B9	WH	2132	Inflatable Restraint Side Impact Sensor - Left
B10	YE	2131	Side Impact Sensing Module - Left - Voltage	B10	YE	2131	Inflatable Restraint Side Impact Sensor - Left Signal
B11	-	-	Not Used	B11	-	-	Not Used
