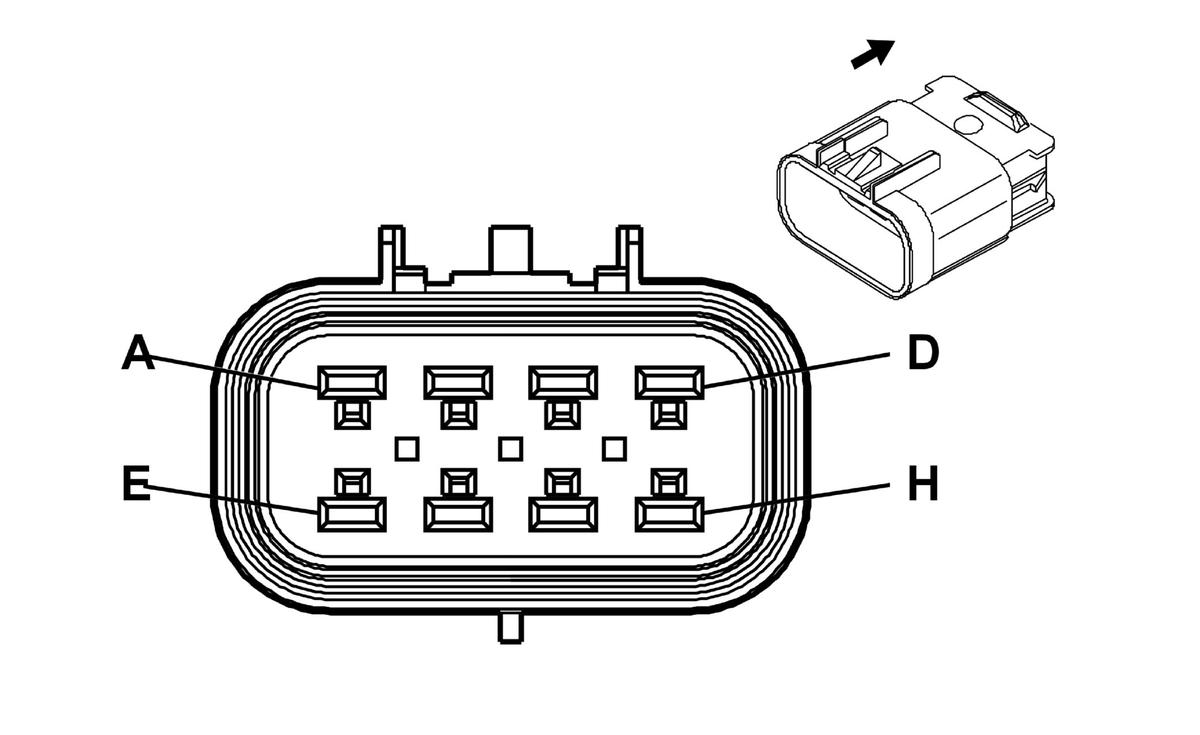

C604 Connector End View

C604 (A31)

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326654 8-Way F GT 280 Sealed 5.8 (BK)		Connector Part Information		15326655 8-Way M GT 280 Sealed 5.8 (BK)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	-	-	Not Used	A	-	-	Not Used
B	RD/WH	881	Passenger Mirror Motor Right Control	B	RD/WH	881	Passenger Mirror Motor Right Control
C	PU/WH	889	Passenger Mirror Motor Down Control	C	PU/WH	889	Passenger Mirror Motor Down Control
D	GY	90	Passenger Mirror Motor Left Control	D	GY	90	Passenger Mirror Motor Left Control
E	BN	441	Ignition 3 Voltage	E	BN	441	Ignition 3 Voltage
F	L-BU	166	Power Window Master Switch Right Front Up Signal	F	L-BU	166	Power Window Master Switch Right Front Up Signal
G	TN	167	Power Window Master Switch Right Front Down Signal	G	TN	167	Power Window Master Switch Right Front Down Signal
H	-	-	Not Used	H	-	-	Not Used
