Frame Cushion or Insulator Replacement (Center)




Frame Cushion or Insulator Replacement (Center)

Tools Required

KM-907 Bushing Remover/Installer

Removal Procedure

1. Remove the frame assembly (1). Refer to Frame Replacement (Frame Replacement).

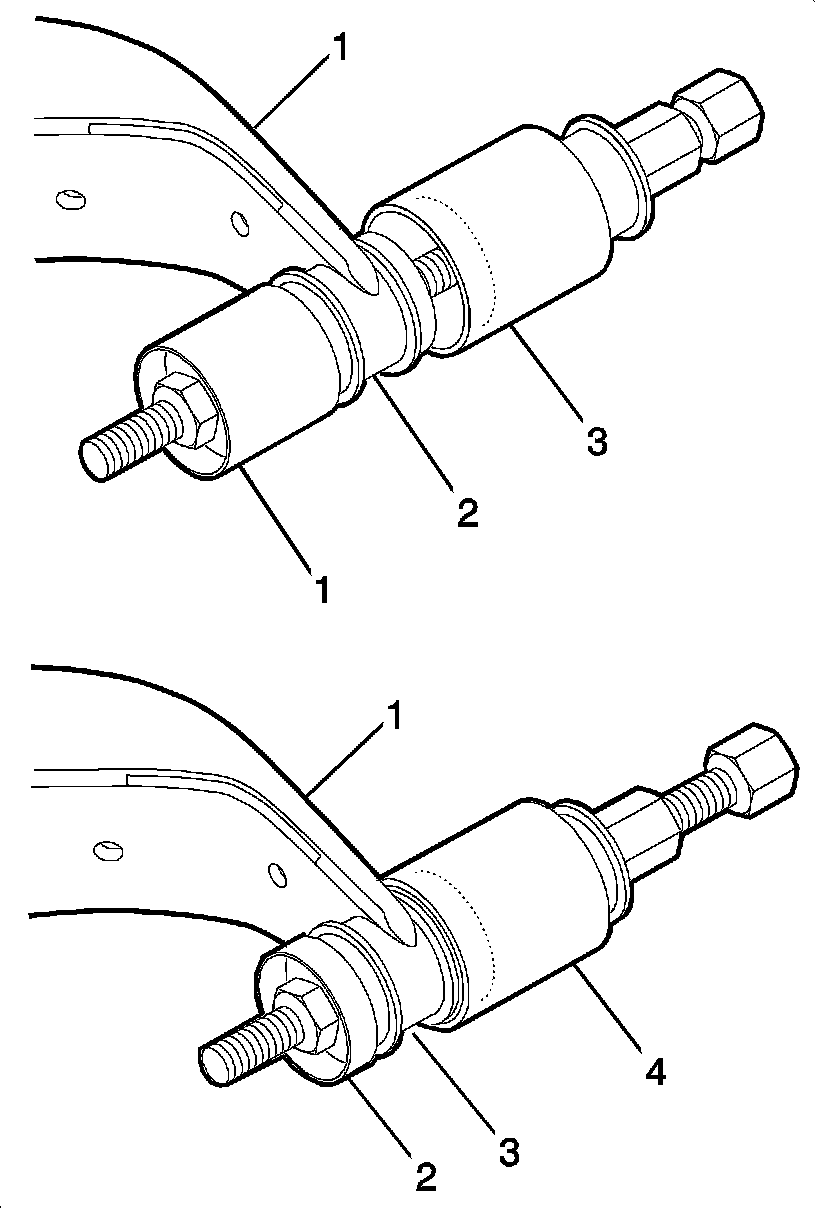

2. Using the KM-907 , install the KM-907-11 KM-907-12 and the KM-907-30 in order to press out the center damping bushing.

Installation Procedure




1. Using the KM-907 , install the KM-907-11, KM-907-22 and the KM-907-30 in order to install the center damping bushing.
2. Install the frame assembly (1). Refer to Frame Replacement (Frame Replacement).
