Vacuum Check Valve: Service and Repair

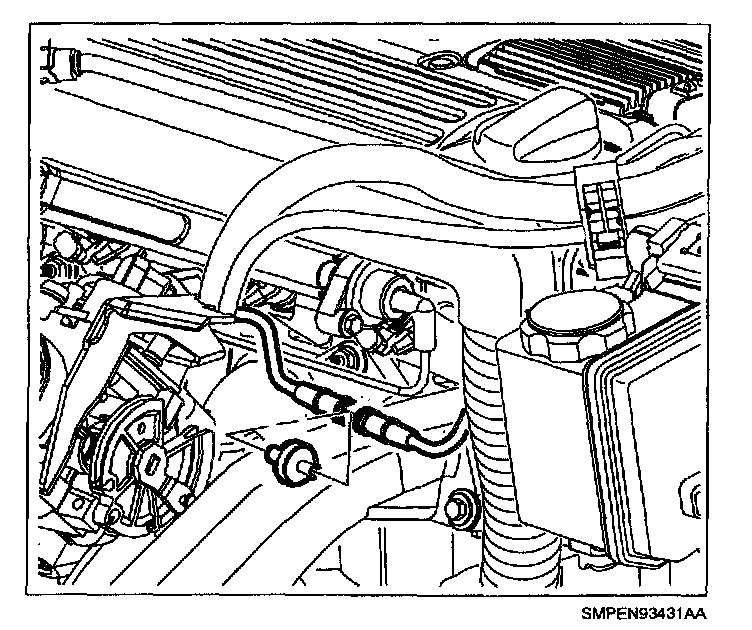

AIR CHECK VALVE

REMOVAL




Remove vacuum hoses from both ends of check valve.

INSTALLATION




1. Install check valve with the side labeled VAC (black) facing toward vacuum source.
2. Install vacuum hoses.
