Shift Control Lever: Installation

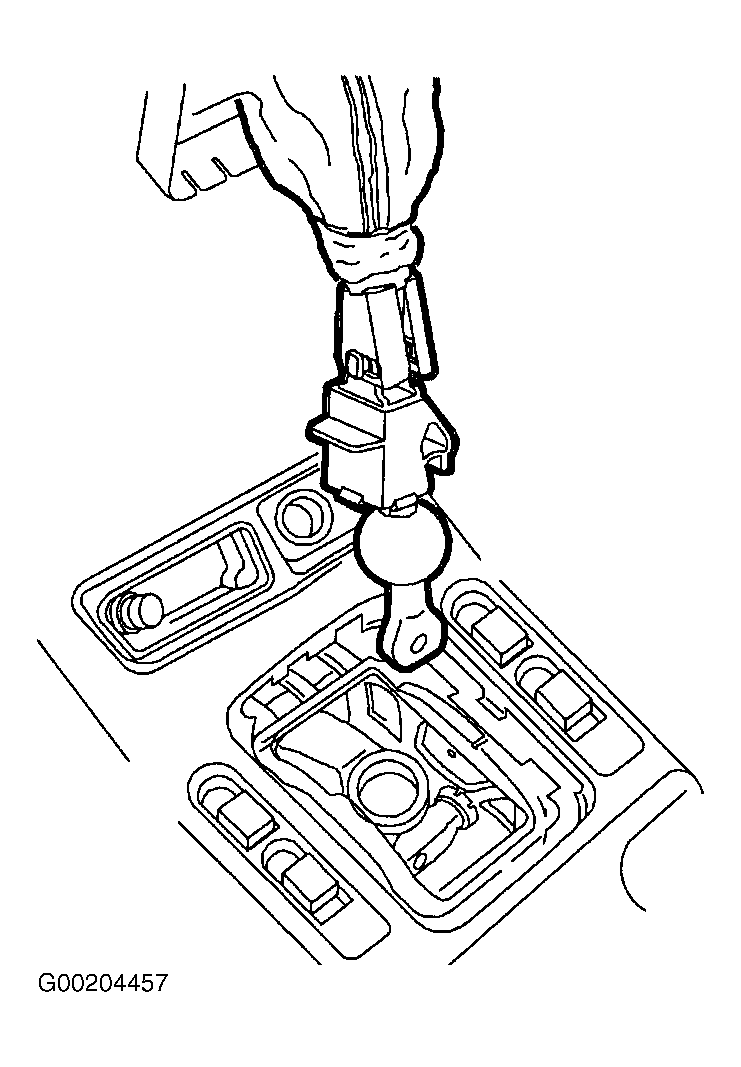

  1. Install the lever assembly. See Figure .

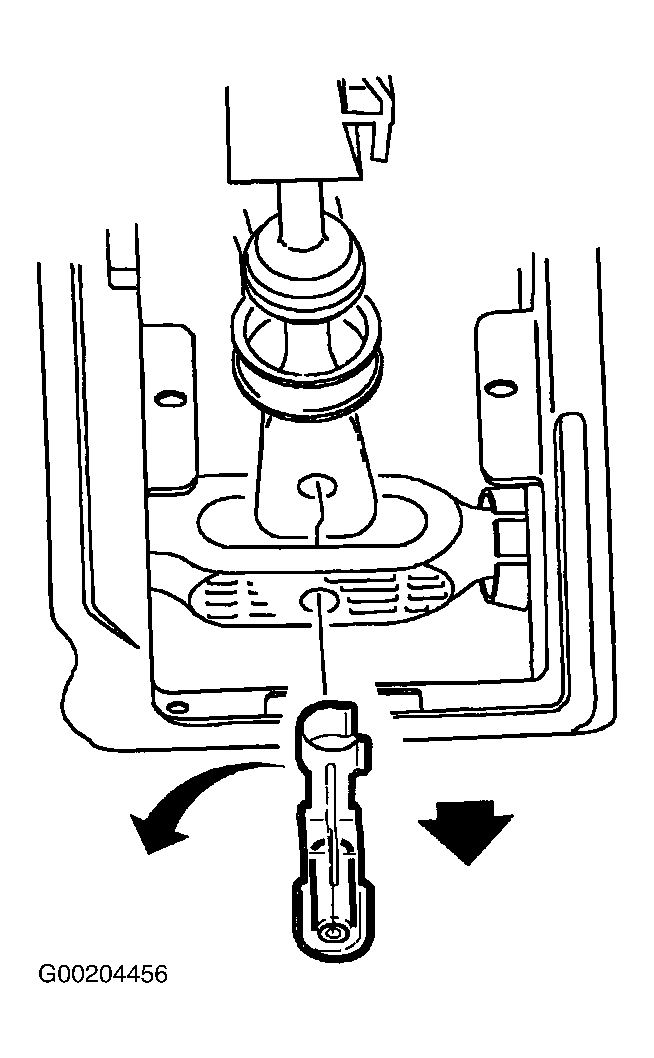

  2. Install the lever assembly retaining clip. See Figure .
  3. Pull the control lever boot down and snap the boot into the console opening.
