Diagnostic Procedure

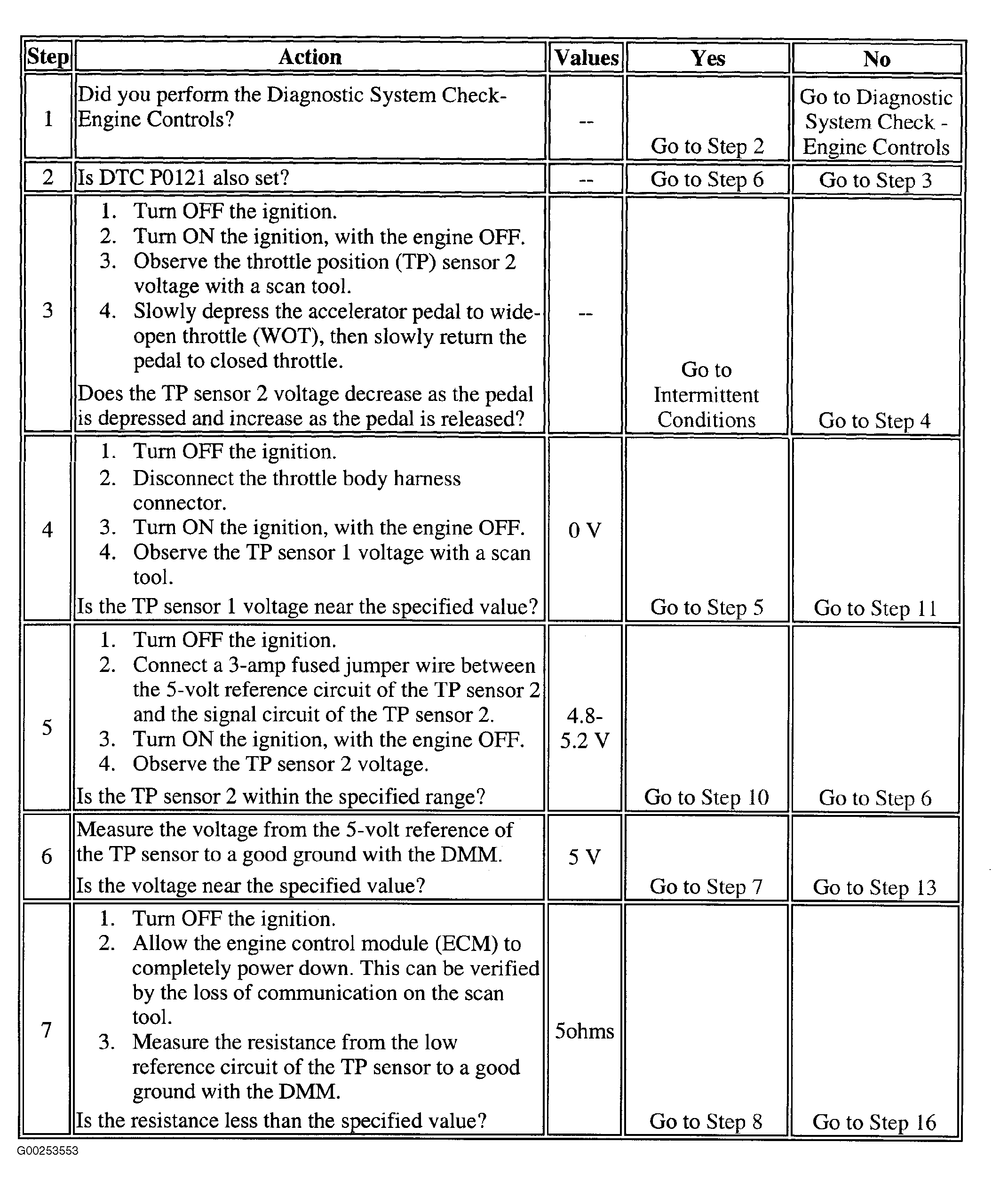

Fig 1: DTC P0221: TP Sensor No. 2 Circuit Performance (Steps 1-7)
G00253553Courtesy of GENERAL MOTORS CORP.

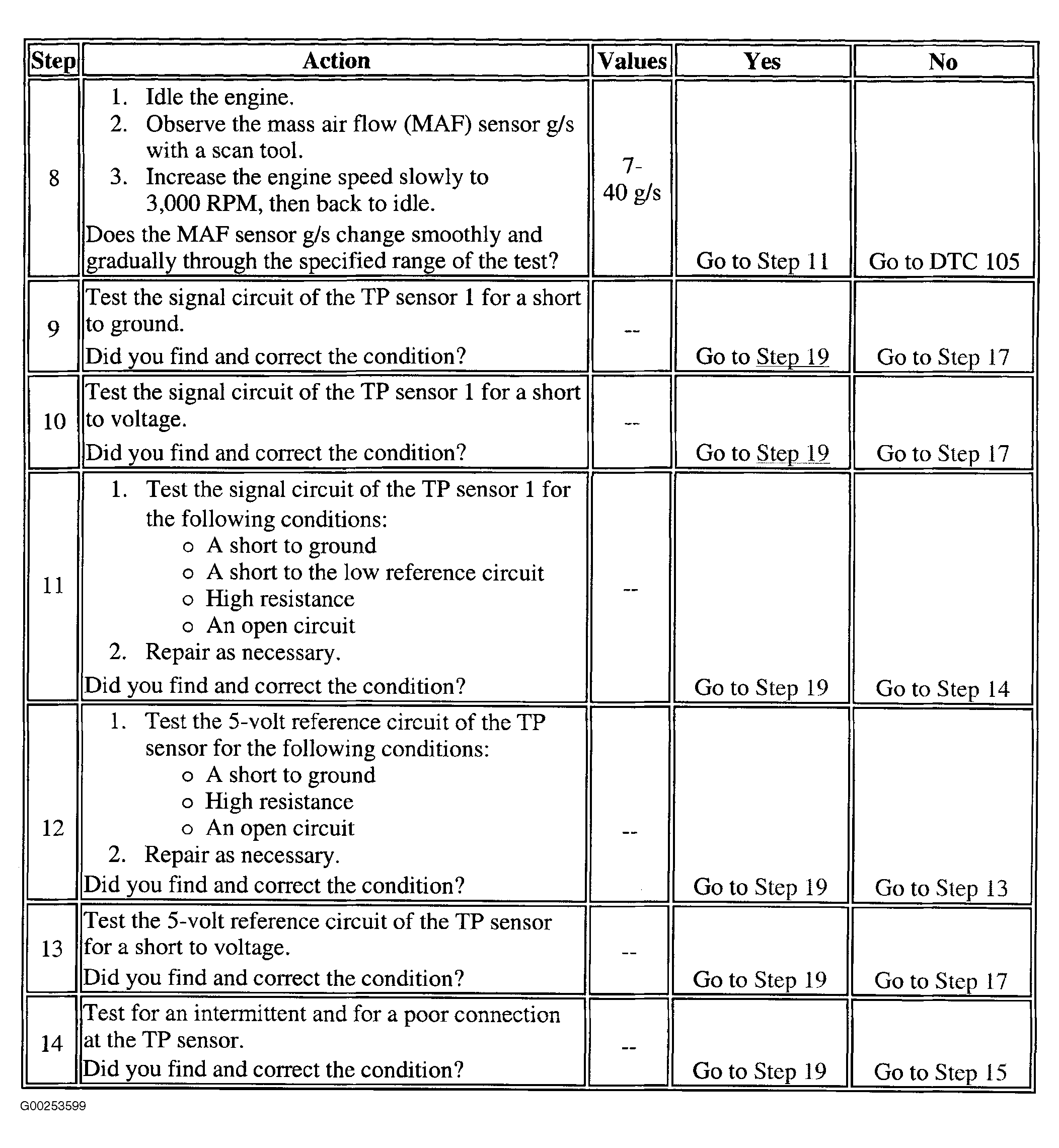

Fig 2: DTC P0221: TP Sensor No. 2 Circuit Performance (Steps 8-14)
G00253599Courtesy of GENERAL MOTORS CORP.

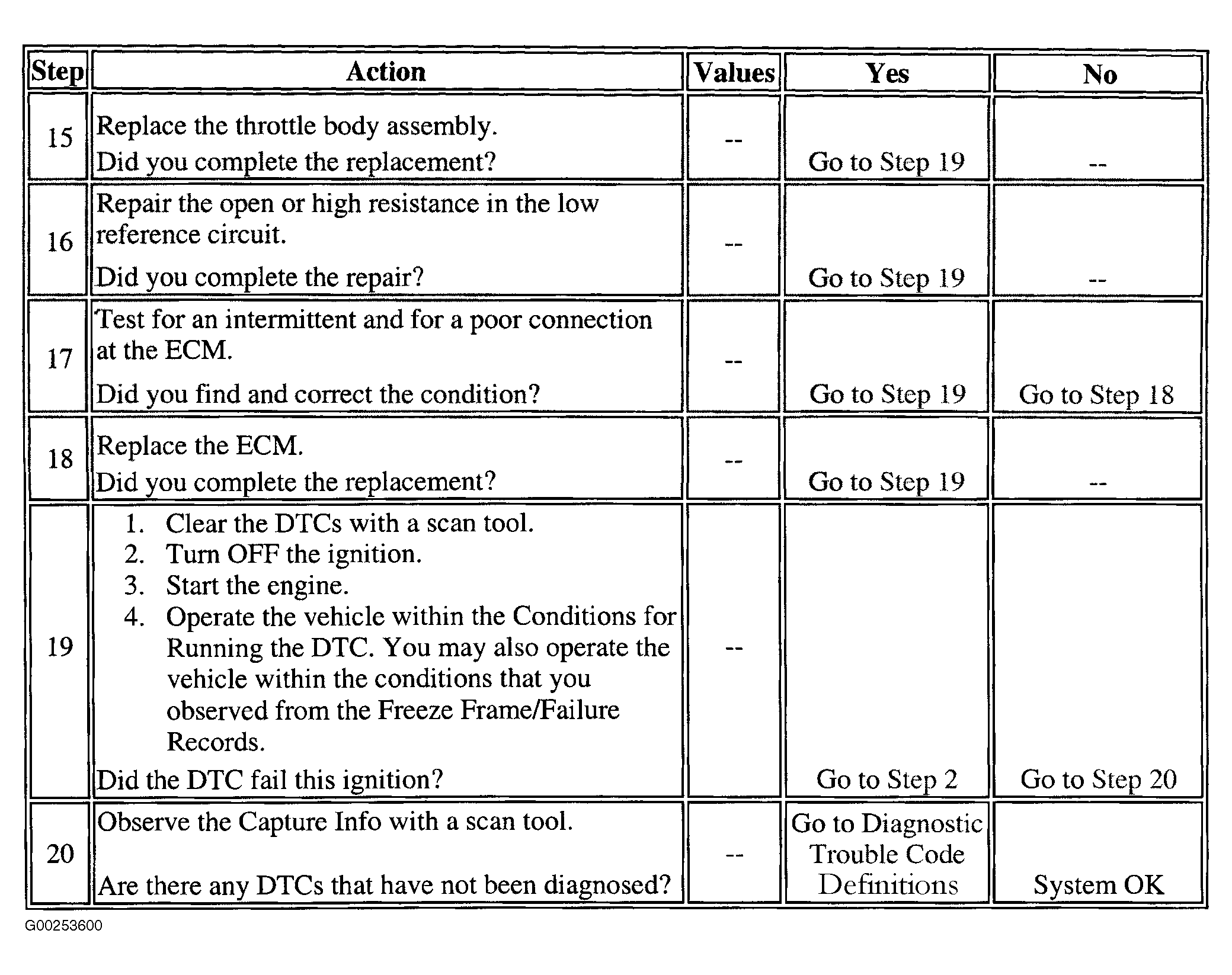

Fig 3: DTC P0221: TP Sensor No. 2 Circuit Performance (Steps 15-20)
G00253600Courtesy of GENERAL MOTORS CORP.
