Diagnostic Procedure

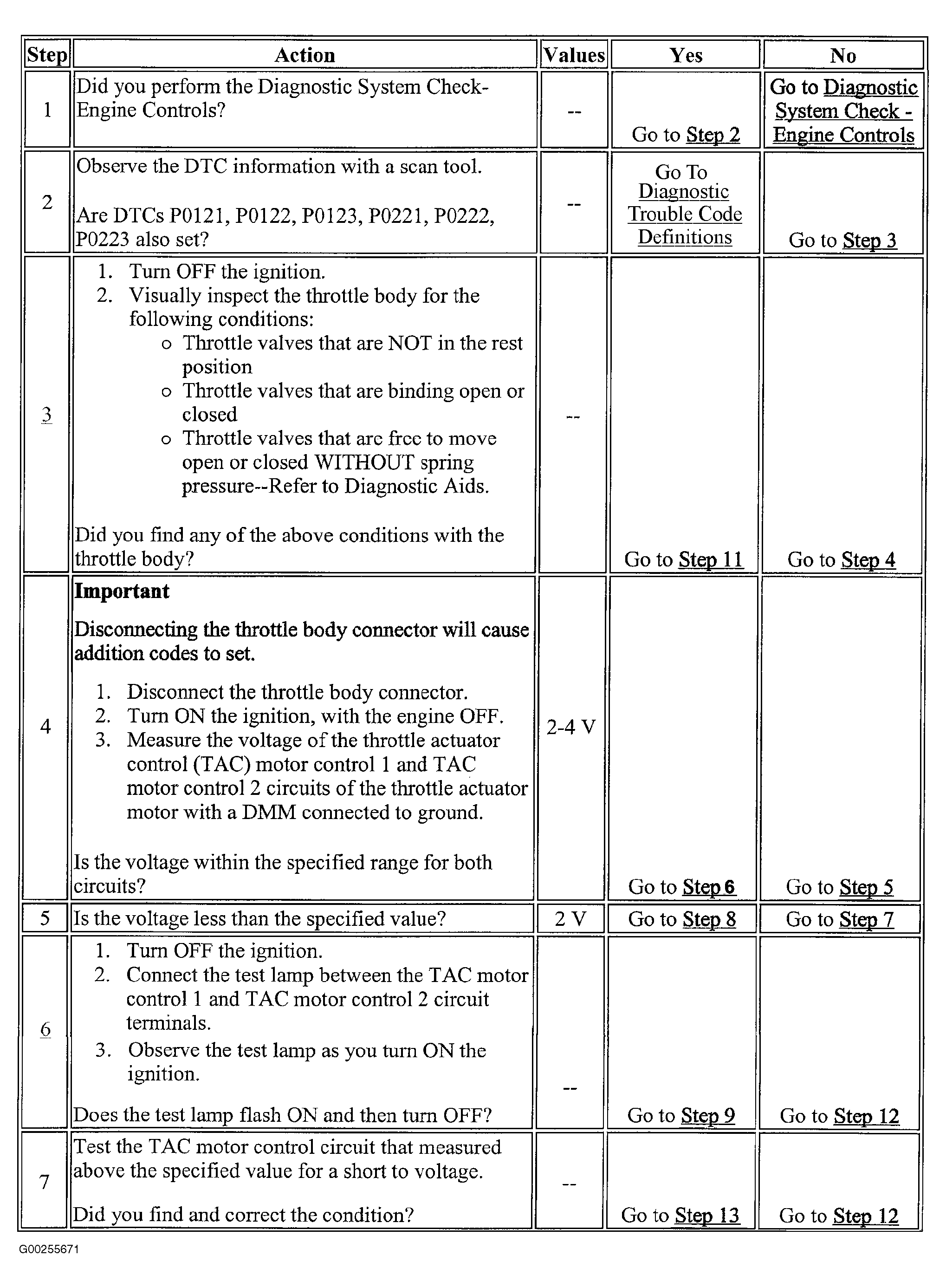

Fig 1: DTC P2119: Throttle Closed Position Performance (Steps 1-7)
G00255671Courtesy of GENERAL MOTORS CORP.

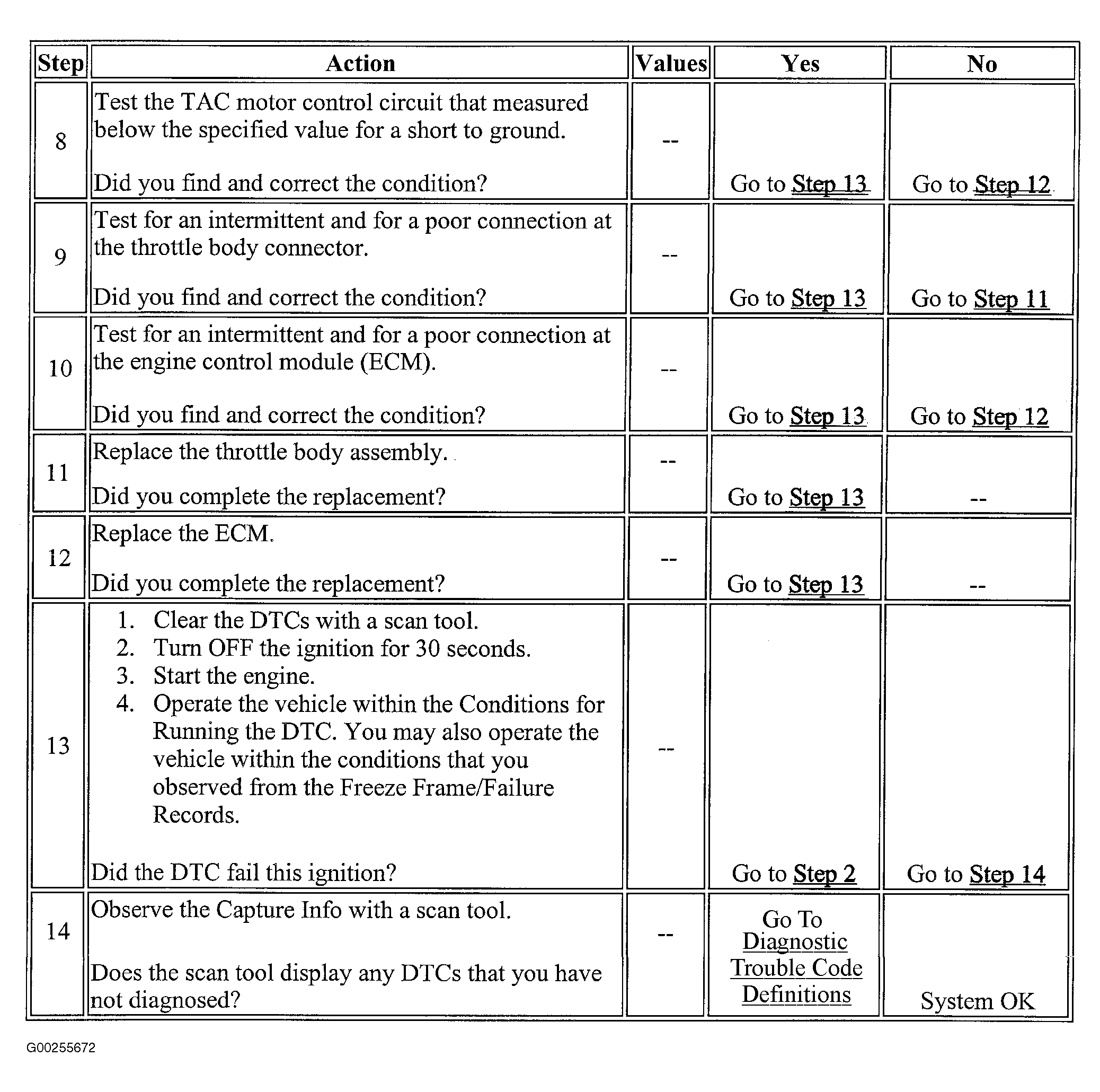

Fig 2: DTC P2119: Throttle Closed Position Performance (Steps 8-14)
G00255672Courtesy of GENERAL MOTORS CORP.
