PID Value Charts: 2.2L

On the 2.2L, the 0-7 tables that are referred to in column 3 of the PID value illustrations are parameter definition tables that are accessed using the Tech II scan tool. To view the scan tool parameter definitions that are referred to in the illustrations, see Fig 1 .

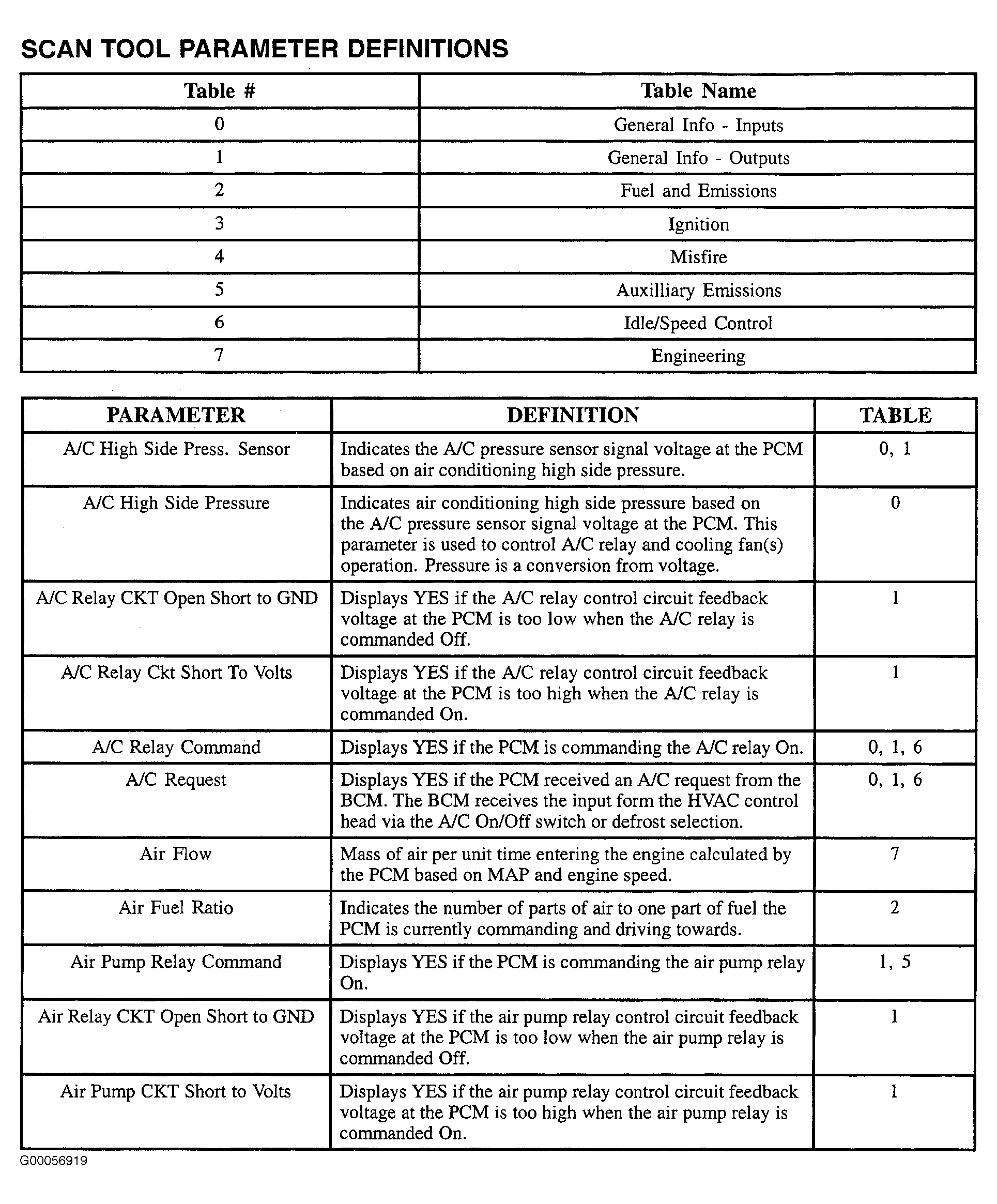

Fig 1: PID Values (1 Of 7)

Courtesy of GENERAL MOTORS CORP.

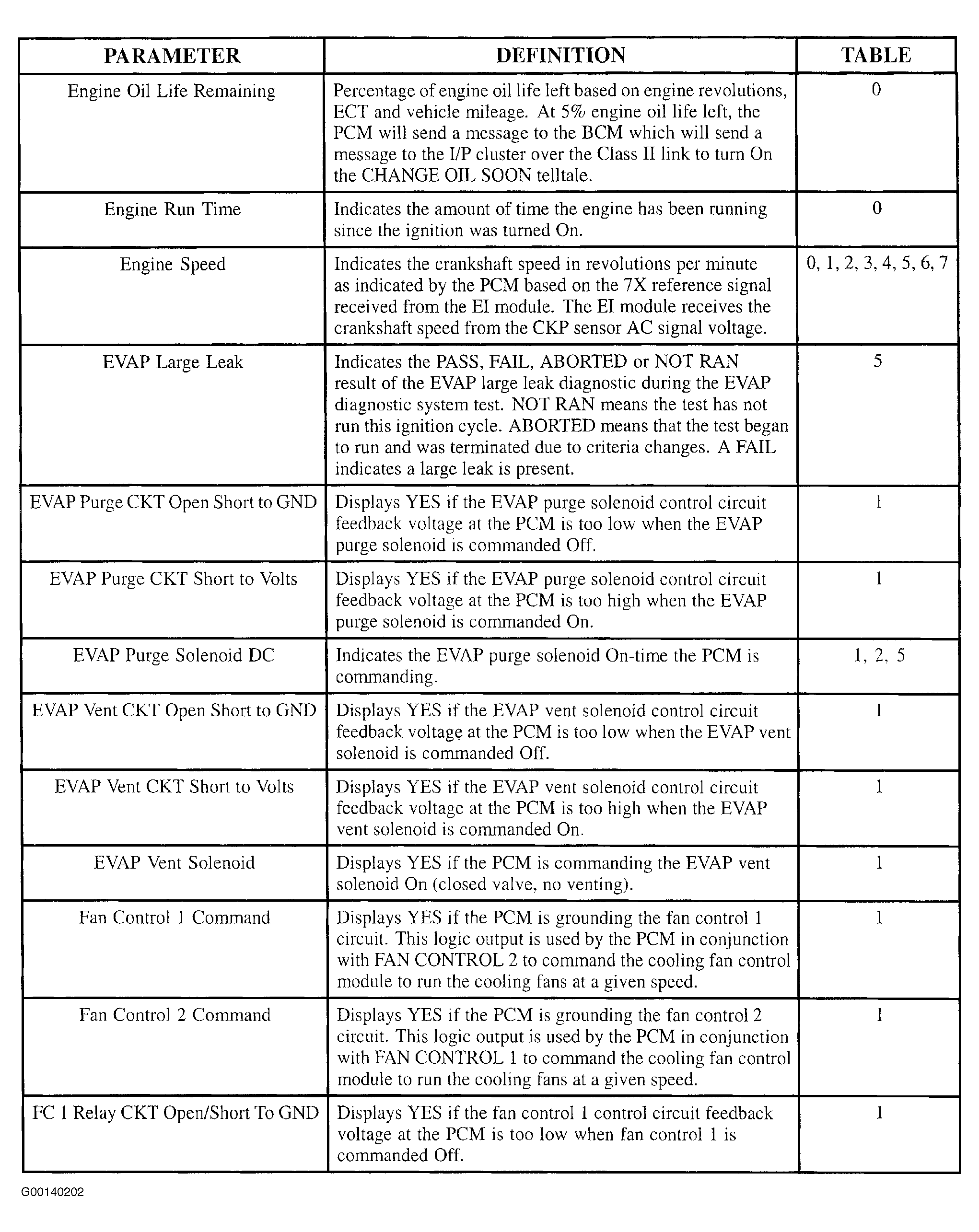

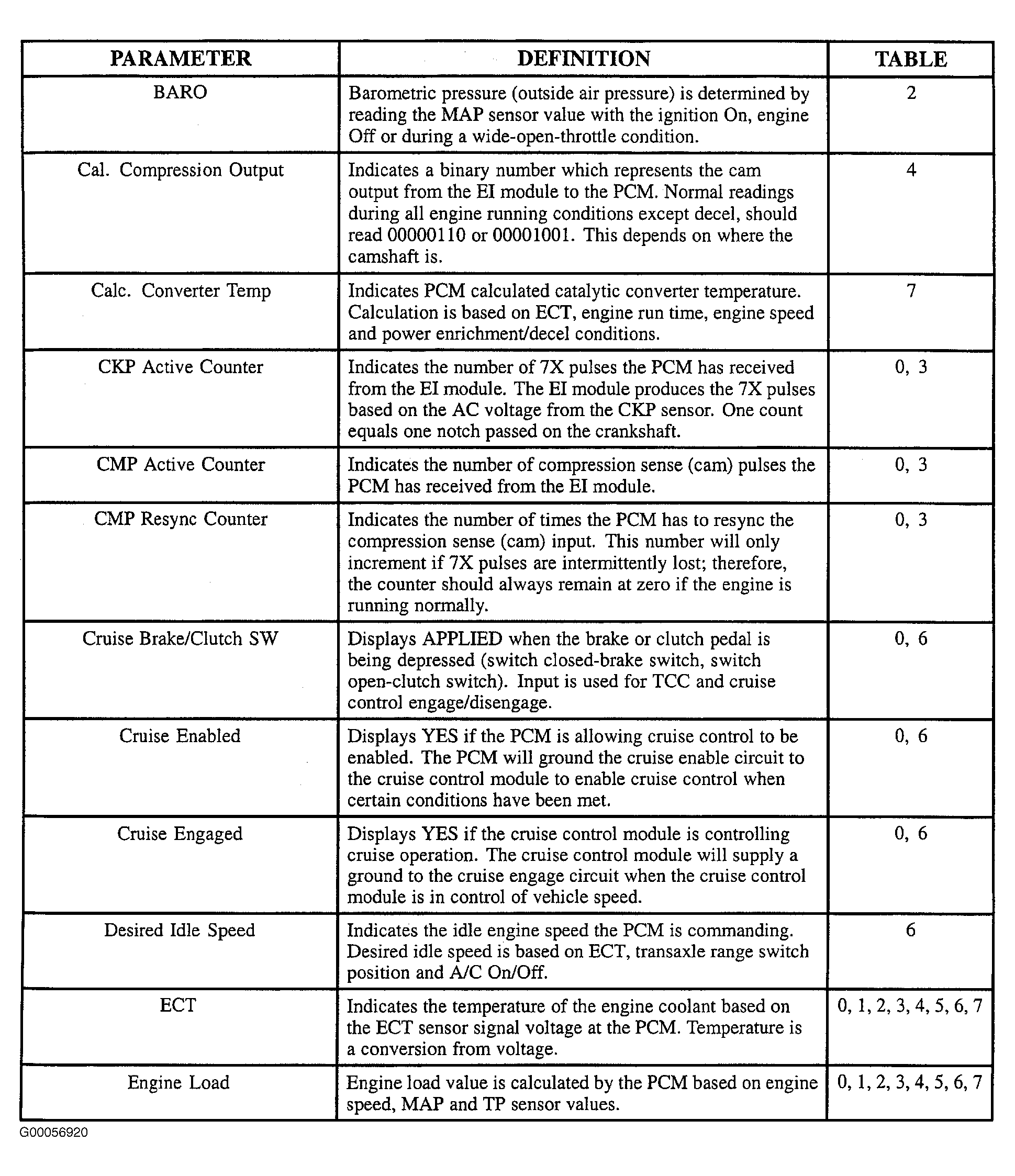

Fig 2: PID Values (2 Of 7)

Courtesy of GENERAL MOTORS CORP.

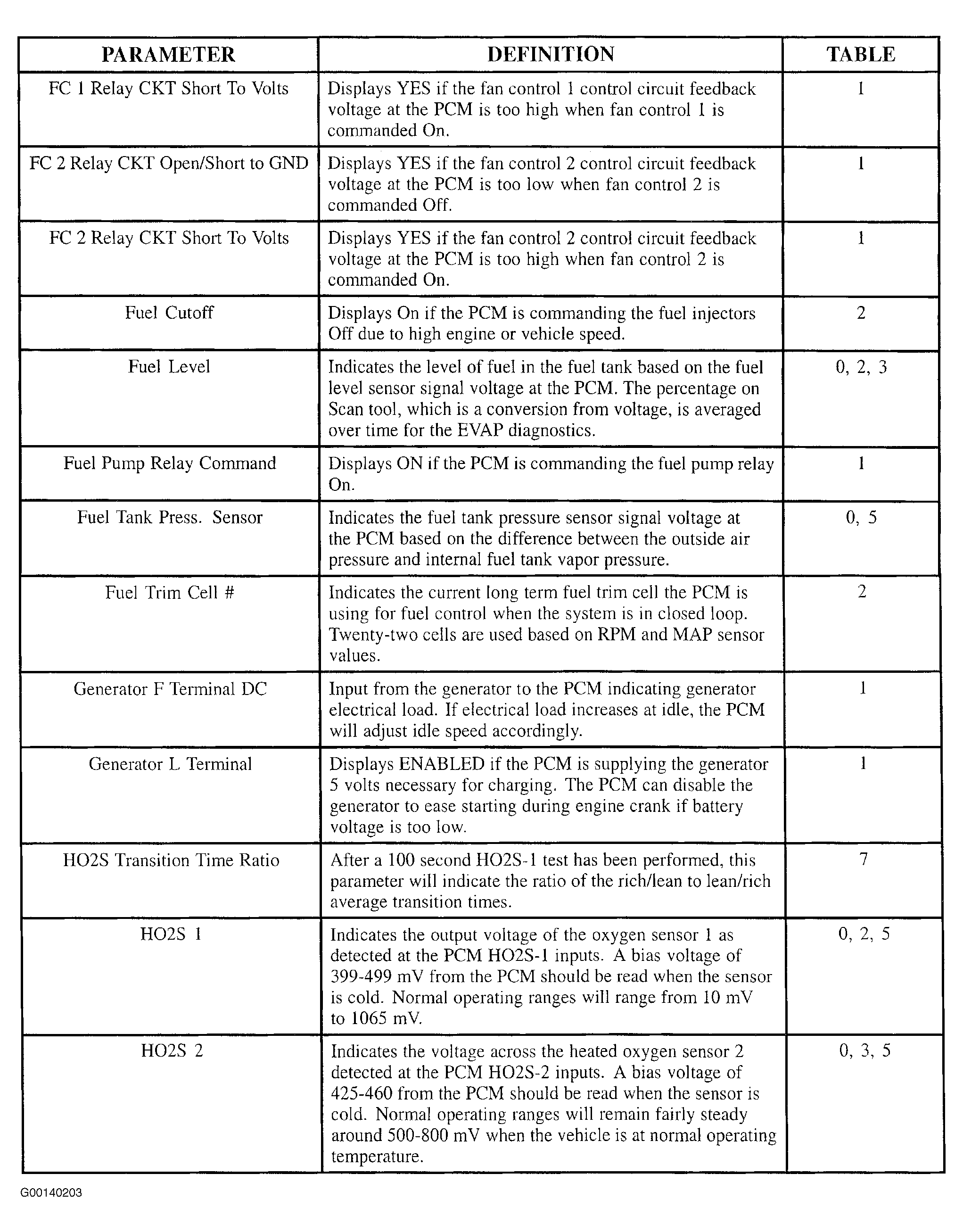

Fig 3: PID Values (3 Of 7)

Courtesy of GENERAL MOTORS CORP.

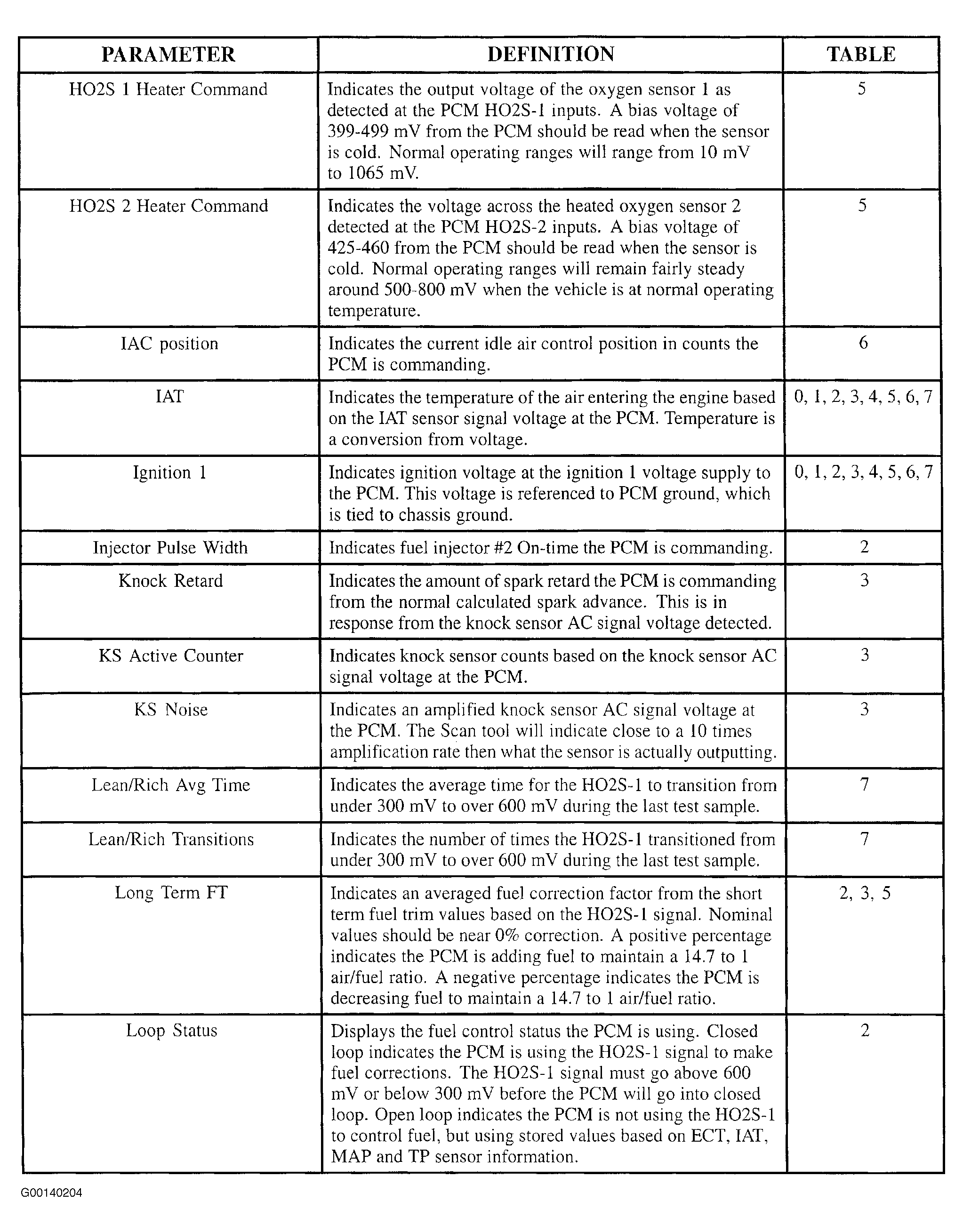

Fig 4: PID Values (4 Of 7)

Courtesy of GENERAL MOTORS CORP.

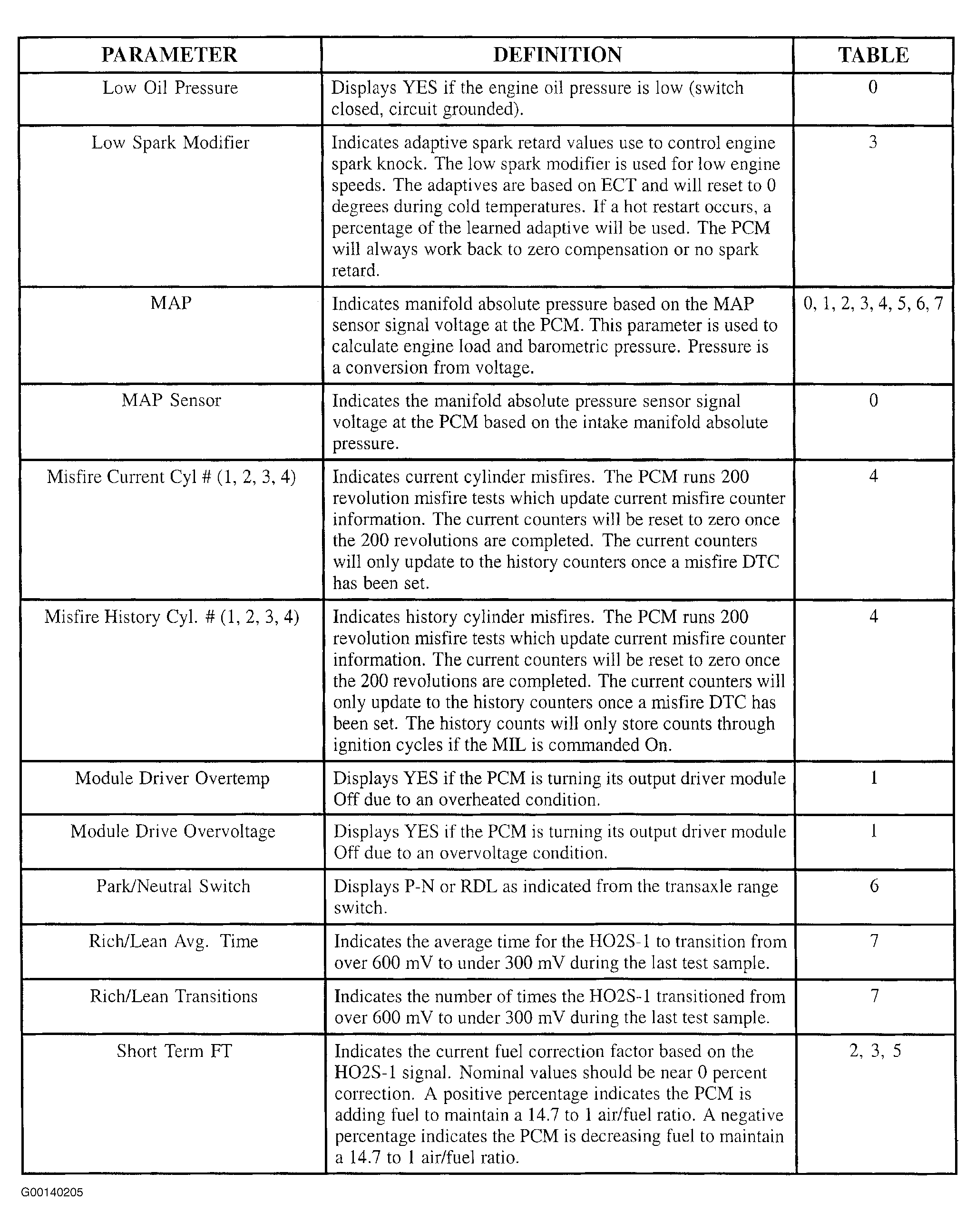

Fig 5: PID Values (5 Of 7)

Courtesy of GENERAL MOTORS CORP.

Fig 6: PID Values (6 Of 7)

Courtesy of GENERAL MOTORS CORP.

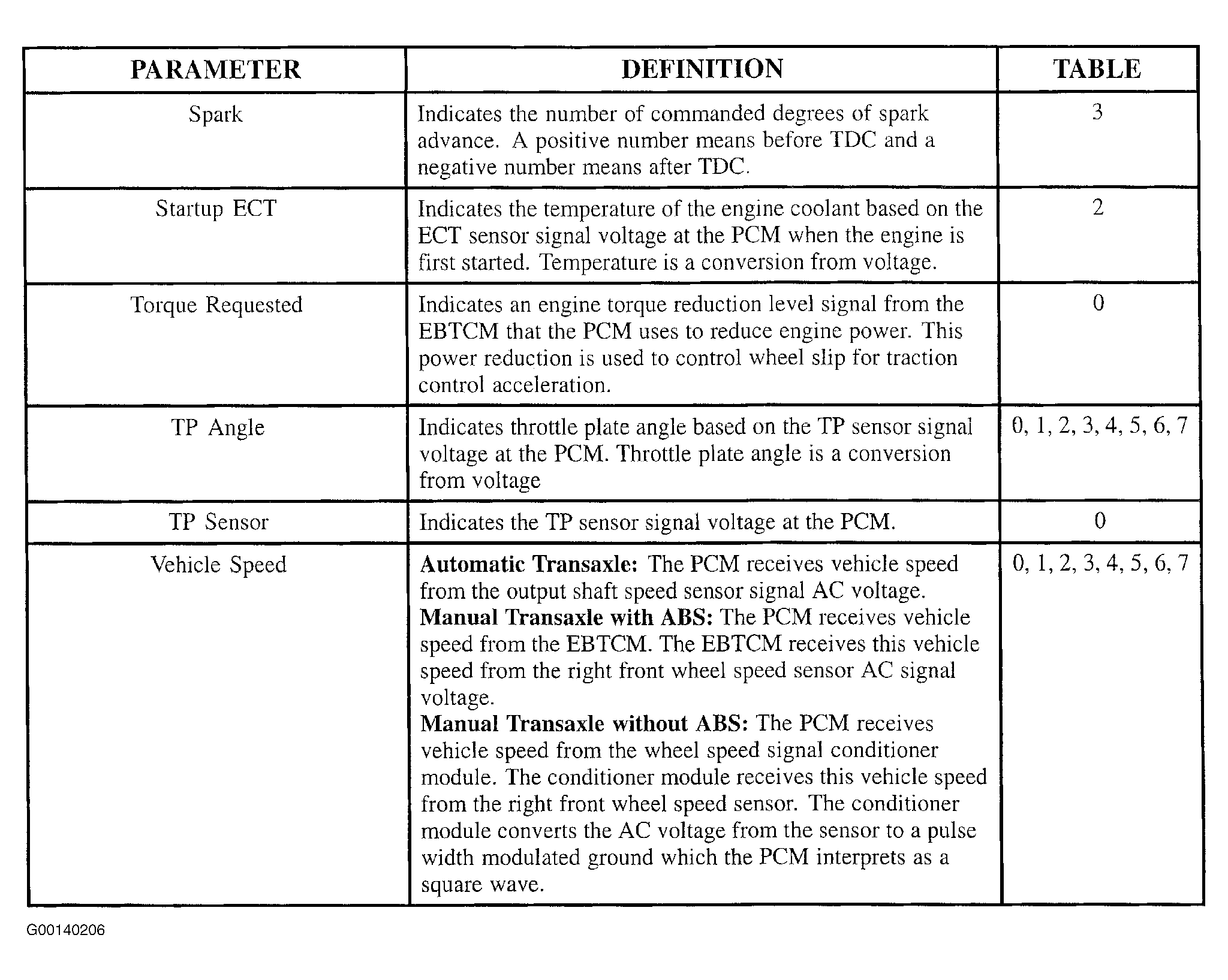

Fig 7: PID Values (7 Of 7)

Courtesy of GENERAL MOTORS CORP.
